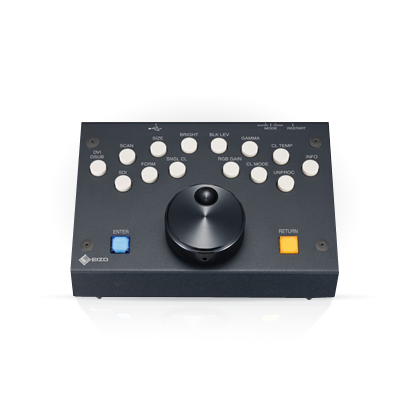

Remote Control Console
For faster and more convenient adjustment of screen settings, the JC-100 remote control console is available for the ColorEdge CG232W. Powered via a USB connection to the monitor, this console gives you one-touch access to frequently used settings such as brightness, gamma, color temperature, black level, RGB gain, and screen size. It includes a rotary wheel so you can quickly adjust settings to the desired level. With the bundled utility software (Windows 7/Vista/XP compliant) you can even customize the function of each button.
| Cabinet Color | Black |
|---|---|
| Functions |
Control Functions on CG232W: Brightness, Gamma, Black Level, Screen Size, Color Temperature, Gain, ColorMode, SDI Input Signal Selection, DVI/D-SUB Input Signal Selection, Signal Format, Scan Type, Information Original Control Functions on JC-100: Mono Color/Gain, Linear gamma, KeyLock, Safety Zone, 3D-LUT Select, 8bit/10bit Display, Save Mode, Load Mode |
| Power | |
| Power Requirements | USB bus power |
| Power Consumption | 350 mW |
| Weight | 600 g |
| Dimensions (W x H x D) | 149 x 54 x 115.5 mm |
| Supplied Accessories | USB cable x 2, Setup Manual, CD-ROM, Overlay Sheet |
| Warranty | Two years |
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| JC-100 User's manual | English | 647 KB |  |
| JC-100 Setup manual | English | 987 KB | |
| JC-100 Control Utility User's manual | English | 563 KB | |
