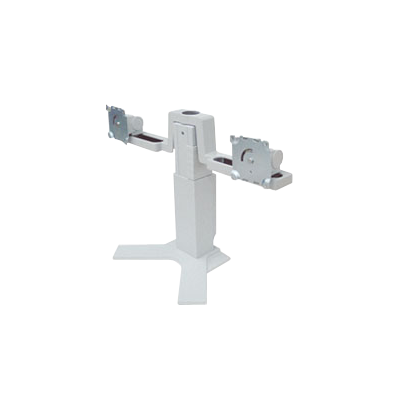

Dual Height Adjustable Stand

This dual height adjustable stand for EIZO 17 – 21.3" LCD monitors present a more effective means to greater productivity, enabling several applications to be viewed at once.

LS-HM1-D (for 21.3/19/18.1/17" models)

2 items

Compare
  • Features
  • Specifications
  • Documents
  • Supports two flat panel monitors.

Supports two flat panel monitors

  • Choose from gray or black to match the cabinet color.

LS-HM0-D black

  • Tilt and swivel for easier viewing, and a horizontal slide range of 80 mm.

Slide image

  • Height adjustment in 6 increments

Height Adjustment Image

  • Turn one or both panels 90° for comfortable viewing of web pages and text documents.

Portrait Mode Image

  • All cables can be routed through the back of the stand for a cleaner desktop.

Cable Housing Image

Supported Models

LS-HM1-D (for 21.3/19/18.1/17" models)

FlexScan

Widescreen Format 20"
EV2023W
Square Format 21.3"
S2133, S2100, L997, L985EX
20.1"
S2000, L887, L885
19"
S1961, S1933, S1932, S1931, S1923, S1921-X, S1921, S1911, S1910, S1903, S1902, S1901, M1900, L797, L795, L788-i, L788, L768, L767
18.1"
L695, L685EX, L685, L665
17"
S1731, S1721-X, S1721, S1703, S1701-X, S1701, M1700, L578, L568, L567, L565, L557, L550
15"
S1501-B, S1501

ColorEdge

CG Series 21.3"
CG211, CG210, CG21
19"
CG19
18.1"
CG18

RadiForce

Monochrome Monitors 5MP
GX540, GX530, GS521, GS520, GS510, G51-S/-G, G51-BLG / G51-CLG, G51
3MP
GX340, GX320, GS320, GS310-BL, GS310, G33, G31-S, G31, FC-2091, FC-2090
2MP
GX240, GX220, GS220, G21-S, G21, G20-S, G20
1MP
SMD 19102, G11
Color Monitors 3MP
RX320, R31, FA-2090
2MP
RX240, RX220, RX211, RX210, RS210, R22, R21, MX215, MX210, FlexScan S2100-M, FlexScan MX210
1MP
RS110, R12, R11, MX191, MS170, FlexScan S1910-M, FlexScan MX190S, FlexScan MX190



Cabinet Color Black, Gray
Compatible Monitor
Load Capacity 3.5 - 9 kg / 7.7 - 19.8 lbs
Hole Spacing (VESA Standard) 100 x 100 mm
Range of Movement
Height Adjustment Range 75 mm, 6 stages (0 / 15 / 30 / 45 / 60 / 75 mm)
Tilt 40° Up, 0° Down
Swivel 5° Right, 5° Left
Pivot 90°
Weight 6.8 kg / 15.0 lbs
Dimensions (W x H x D) 604 x 326 - 401 x 212 mm

Manuals

Languages



Document Language Size Download
LS-HM1-D User's Manual (English) English 393 KB Download
