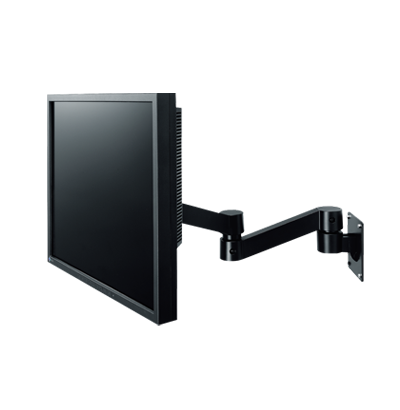

Wall Mount Arm (Axes Arm)

Mount your LCD monitor on a wall and change the screen position as necessary with tilt and swivel capability.

LA-030-W
(for 27/24.1/23/21.3/21.1/20.8/20.1/19/18.1/17" models)

2 items

Compare
  • Features
  • Specifications
  • Documents
  • Position the monitor almost anywhere with forward/backward and side-to-side movement.

Wall Mount Arm (Axes Arm)

Supported Models

LA-030-W Wall Mount Arm (Axes Arm)

FlexScan

Widescreen Format 31.5"
EV3237
27"
SX2761W, EV2736W
24.1"
SX2462W, SX2461W, S2433W, S2432W, S2431W, S2411W, S2410W, S2402W, S2401W, HD2441W, EV2436W, EV2411W
23"
EV2335W, EV2333W, EV2303W
22"
SX2262W, S2243W, S2242W, S2233W, S2232W, S2231W, S2202W, S2201W
21.1"
S2111W, S2110W
20"
S2031W, S2001W
Square Format 21.3"
S2133, S2100, L997, L985EX
20.1"
S2000, L887, L885
19"
S1961, S1932, S1931, S1921-X, S1921, S1911, S1910, S1902, S1901, M1900, L795, L788, L778, L768, L767
18.1"
L695, L685EX
17"
M1700, L567, L557

ColorEdge

4K 23.8"
CG248-4K
CG Series 24.1"
CG246, CG245W, CG243W, CG242W, CG241W
22"
CG223W, CG222W
21.3"
CG211, CG210, CG21
19"
CG19
18.1"
CG18
CX Series 24.1"
CX240
CS Series 23"
CS230
CE Series 24.1"
CE240W
21.1"
CE210W

FORIS

Widescreen Format 23.8"
FS2434
23"
FS2333, FS2332, FS2331

DuraVision

Security and Surveillance 23"
FDF2305W
19" SXGA
FDS1903, FDS1901
17" SXGA
FDS1703, FDS1701
Geographic Information Systems, Air Traffic Control, Virtual Reality 23.5"
FDF2405W

RadiForce

Monochrome Monitors 5MP
GX540, GX530, GS520, GS510, G51-S/-G, G51-BLG / G51-CLG, G51
3MP
GX340, GX320, GS320, GS310-BL, GS310, G33, G31-S, G31, FC-2091
2MP
GX240, GX220, GS220, G22, G21-S, G21, G20-S, G20
1MP
SMD 19102, G11
Color Monitors 3.7MP
MX270W
3MP
RX340, RX320, R31, FA-2090
2.3MP
MX242W, MX241W, MX240W, MX220W, FlexScan S2411W-M, FlexScan MX240W, FlexScan MH240W
2MP
RX240, RX220, RX211, RX210, RS210, R22, R21, MX215, MX210, MS230W, FlexScan MX210
1MP
RS110, R12, R11, MX191
24" Wide
ES240W



Cabinet Color Black
Compatible Monitor
Load Capacity 4 - 9 kg / 8.8 - 19.8 lbs
Hole Spacing (VESA Standard) 100 x 100 mm
Range of Movement
Height Adjustment Range -
Tilt 35° Up, 0° Down
Swivel Monitor: 90° Right, 90° Left
Middle: 180° Right, 180° Left
Wall Anchor: 90° Right, 90° Left
Pivot 90°
Mounting Requirements Mounting Wall Load Capacity: 130 kg minimum
Weight 2.8 kg / 6.2 lbs
Dimensions (W x H x D) 109 x 271.4 x 513 mm

Manuals

Languages



Document Language Size Download
LA-030-W, LA-011-W User's Manual (English) English 1.0e+3 KB Download
