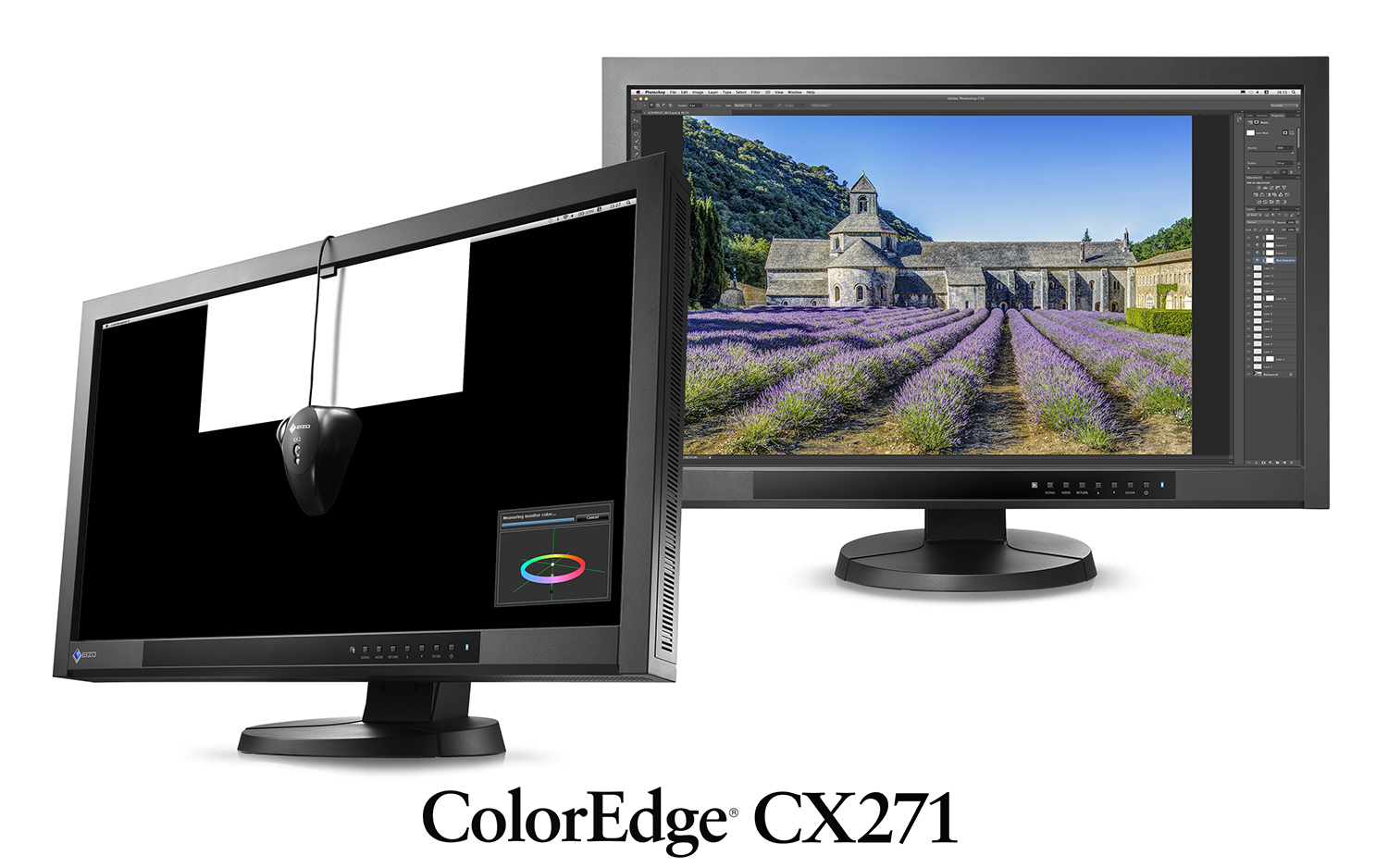

ColorEdge CX271
27" (68 cm) Hardware Calibration LCD Monitor
So much to see. So simple to maintain.
The CX271 offers photographers and designers an abundant 3.7 megapixels across its 27-inch screen. It comes with EIZO’s ColorNavigator calibration software and a built-in SelfCorrection sensor that maintains calibration settings according to your schedule..
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories
  • Awards & Reviews

Built-In Sensor for Simplified Maintenance

Built-in Correction Sensor Automatically Maintains Your Settings

timerThe CX271 is equipped with a built-in correction sensor housed within the front upper bezel. This sensor records your adjustment results, and maintains the white point and brightness values by automatically readjusting the settings at specific intervals that you determine. Even if the monitor is switched off or not connected to a computer, it will stick to its preset schedule and self correct.













What’s New with the ColorEdge CX271

wide_color_space.jpgReproduces 99% of the Adobe RGB Color Space

An IPS panel with a wide color gamut reproduces 99% of the Adobe RGB color space so images shot in RAW can be converted to Adobe RGB or images shot in Adobe RGB will be displayed correctly. The colors seen in photos of vibrant blue skies and lush green forests will be reproduced faithfully. The wide color gamut also ensures that the monitor reproduces almost the entire ISO-coated and US web-coated CMYK color spaces used in printing as well as 93% of the DCI used in post production.







Excellent Tone Display in the Dark

Excellent tone display in darkWhen viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The monitor maintains a high contrast ratio even from an angle which allows the dark tones to retain their depth.



Non-Glare IPS Panel

The IPS (in-plane switching) panel exhibits no glare and allows several people to view the monitor with minimal color shift.

Non-glare IPS

LED Backlight Cuts Power by 40%power save

The LED backlight reduces energy consumption by 40% compared to a conventional backlight. It is also mercury-free for less impact on the environment when it is eventually disposed of.







Brightness Modulation Minimizes Flicker

To counteract the flicker that is noticeable by some users at low brightness settings, EIZO uses PWM (pulse width modulation) technology. This helps prevent eye fatigue for a more comfortable work environment.

Features for Creative Work

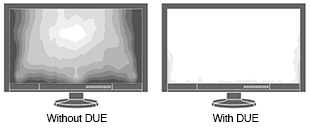

Uniformity from Corner to Corner

uniformity
Delta-E ab distribution across the screen (gray level 128 measured)

Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, the monitor incorporates EIZO's patented digital uniformity equalizer (DUE) technology to ensure a Delta-E difference of 3 or less across the screen when the monitor leaves the factory. DUE also counterbalances the influences that a fluctuating ambient temperature may have on color temperature and brightness to ensure stable image display.

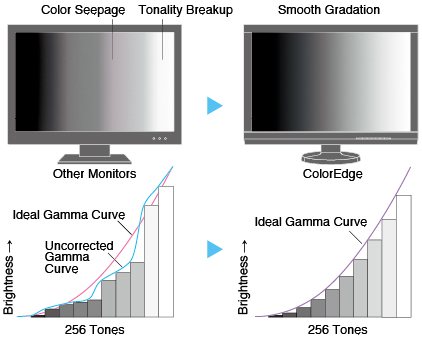

Individually Adjusted at the Factory

The gamma level for each ColorEdge monitor is adjusted at the factory. This is accomplished by measuring the R, G, and B gamma values from 0 – 255, then using the monitor’s 16-bit look-up table (LUT) to select the 256 most appropriate tones to achieve the desired value.

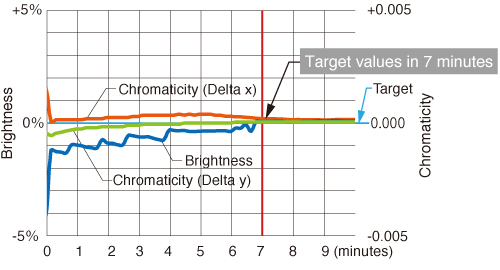

Stable Display within Seven Minutes of Startup

From the time it is turned on it typically takes 30 minutes or longer for a monitor’s brightness, chromaticity, and tone characteristics to stabilize. EIZO has shortened this warm-up time by more than 75% to a mere 7 minutes. For confirming your work in a photo studio or taking your monitor with you on location, you can get to work right away.

drift correction

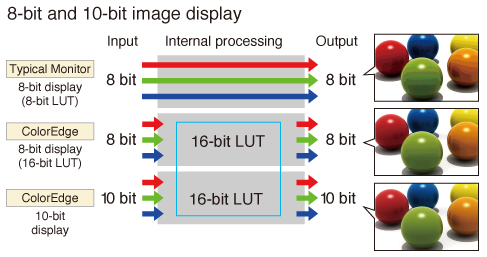

10-Bit Simultaneous Display

Using the DisplayPort input, the monitor offers 10-bit simultaneous color display* from a 16-bit look-up table which means it can show more than one billion colors simultaneously. This is 64 times as many colors as you get with 8-bit display which results in even smoother color gradations and reduced Delta-E between two adjacent colors.
*A graphics board and software which support 10-bit output are also necessary for 10-bit display.

10-bit display

Automatic Readjustment of Color Mode Preset with Internal Sensor

With the built-in SelfCorrection sensor, you can maintain the monitor at one of the color mode presets without using any software. When the monitor is calibrated at the EIZO factory, the SelfCorrection sensor measure’s the LCD panel’s white point and stores it to the monitor. When readjusting, the monitor compares the stored value for white point against the current value and corrects any difference.

Self-correct to a preset mode by pressing a button on the front of the monitor

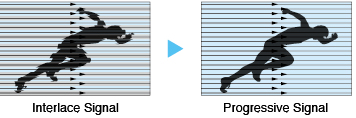

IP conversionI/P Conversion

The HDMI input supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.



Simple and Precise Calibration with ColorNavigator

ColorNavigator 6

The bundled ColorNavigator software makes calibration both simple and quick. Just input target values for brightness, white point, and gamma. The built-in sensor directly utilizes the monitor's look-up table and creates an ICC profile within minutes. You can always download the latest version of ColorNavigator for free here on eizo.com.
ColorNavigator



How to Color Match Your ColorEdge Monitor and Photo Prints

Learn more about color matching.

How to Color Match Your ColorEdge Monitor and Photo Prints

In this guide, we go over how you can retouch and print digital photos on your own home inkjet printer and match the colors with monitor.


Unify Color, Centralize Quality Control Management

ColorNavigator NX and ColorNavigator Network allow a single administrator to automate the quality control process of ColorEdge monitors across an entire studio or between multiple locations.

With ColorNavigator NX installed on workstations, an administrator can use ColorNavigator Network software to schedule self-calibration, set the color modes, activate key lock to prevent unintended changes to color settings (CG series), register or adjust asset management settings, and import/export monitor settings.

Unify Color, Centralize Quality Control Management

Worry-Free Web Hosting

ColorNavigator Network is hosted by EIZO on a secure cloud server to free you from the initial investment and running costs of providing your own server.

animation

To learn more, visit our ColorNavigator NX and ColorNavigator Network pages or watch this animation.

Comfort and Convenience

Multiple Inputs

DisplayPort, HDMI, and DVI-D inputs are included and support resolutions up to 2560 x 1440. The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once so it’s not necessary to reconnect the USB cable when using the ColorNavigator software and switching between the two computers.

connectors

Smooth Display of Video

For video editing or post production work, an overdrive circuit is included to reduce gray-to-gray response time to 6 ms and ensure that moving images look clean and sharp with a minimum of ghosting.

Adjustable Stand

Adjust the screen to the most comfortable angle for you and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait mode display.

adjustable stand

Optional Shading Hood for Portrait and Landscape Modes

Most shading hoods can only be used in landscape mode, but a unique hood that is designed for portrait mode as well is available as an option.

Ideal for Video Editing and Post Production

1080/24p Playback

Film is usually shot at 24 frames/second and looks unnatural when played back on a typical monitor that displays 60 frames/second. The HDMI input supports a video signal display rate of 1080/24p frames-per-second so you can edit the film as it was meant to be viewed.

Commitment to Quality and the Environment

5-Year Warranty

The monitor is backed by a manufacturer’s 5-year warranty that covers all components including the LCD panel. EIZO can do this because it manufacturers its products at its own factories. This allows EIZO to keep close control over production quality and ensure that its monitors are built to last for 5 years.

5 Year Warranty

Zero Watts When Turned Off

When the monitor is turned off via the power button on its front bezel it consumes no electricity.

Cabinet Color Black
Panel
Type IPS
Backlight Wide-Gamut LED
Size 27" / 68 cm (684 mm diagonal)
Native Resolution 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.6 mm
Pixel Pitch 0.2331 x 0.2331 mm
Grayscale Tones DisplayPort, HDMI: 1024 tones (a palette of 65281 tones)
DVI: 256 tones (a palette of 65281 tones)
Display Colors DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion
DVI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 300 cd/m2
Recommended Brightness for Calibration 120 cd/m2 or less
Contrast Ratio (typical) 1000:1
Response Time (typical) 6 ms (Gray-to-gray)
Wide Gamut Coverage (typical) Adobe RGB: 99%
Video Signals
Input Terminals DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color)
Digital Scanning Frequency (H / V) DisplayPort, DVI: 26 - 89 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz)

HDMI: 15 - 78 kHz, 23.75 - 61 Hz
USB
Function 2 ports for monitor control
2-port USB hub
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 99 W
Typical Power Consumption 43 W
Power Save Mode Less than 0.7 W
Standby Mode Less than 0.5 W
Power Management Power Save (DisplayPort: Rev. 1.1a, DVI: DVI DMPM)
Self-Correction Yes
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes Color Mode (Custom, Paper, Adobe RGB, sRGB, Calibration)
Auto EcoView / BrightRegulator Yes (Deafult: Disabled)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Gamma, Temperature, Saturation, Hue, Gain, Black Level, Independent 6-Color Control, Reset), HDMI Settings (Noise Reduction), Range Extension, Signal Switching, OSD Menu Settings, Overdrive, Input Skip, Mode Skip, USB Selection, Signal Info, Monitor Info, DUE Priority, Key Lock, Signal Bandwidth, Power Indicator, All Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 646 x 425 - 576.5 x 281.5 mm
Dimensions (Portrait, W x H x D) 402 x 671 - 704 x 281.5 mm
Dimensions (Without Stand, W x H x D) 646 x 402 x 92 mm
Net Weight 12.8 kg / 28 lbs
Net Weight (Without Stand) 8.8 kg / 19.4 lbs
Height Adjustment Range 151.5 mm
Tilt 25° Up, 0° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, TUV/GS, CE, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, c-Tick, GOST-R, RoHS, WEEE, CUDO certified mark
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D [dual link supported], Mini DisplayPort - DisplayPort), USB cable, setup guide, EIZO LCD Utility Disk (PDF user's manual), adjustment certificate, quick reference, warranty card
Warranty Five Years 1 2
5
  1. 1  The RGB full pixel failure is zero for up to 12 months after date of purchase based on ISO 9241-307 (pixel failure class I).
  2. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  3. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
