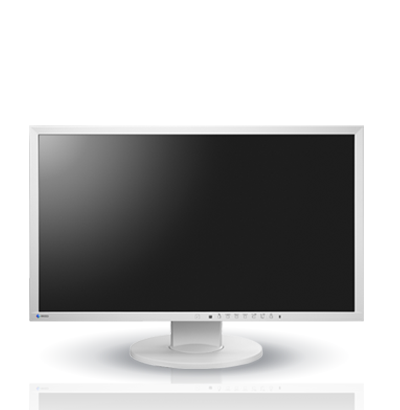

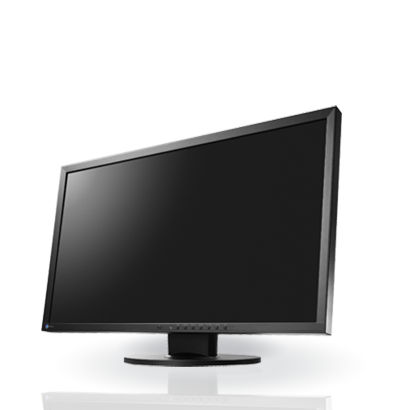

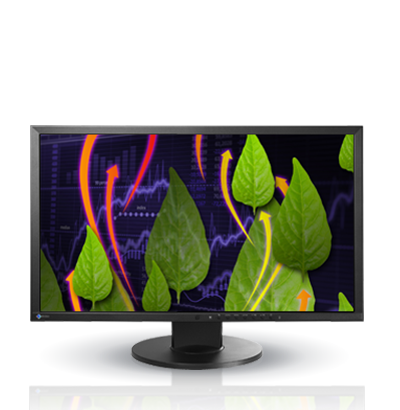

FlexScan EV2336W
23" (58 cm) LCD Monitor
Beautiful as always. Greener than ever.
With extremely thin bezels and EIZO’s most advanced energy-saving features, this monitor is both easy on the eyes and easy on the environment.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories

Simple Design for Convenience

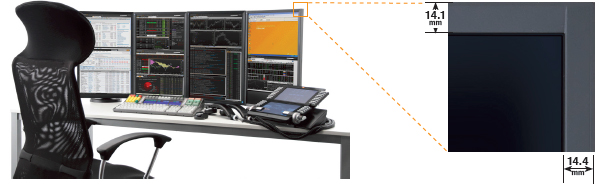

Slim Bezels

A new thin bezel design saves space on the desktop and minimizes eye movement between screens in a multi-monitor environment.
Slim bezels

Thomson Reuters Eikon is a trademark of Thomson Reuters and its affiliated companies.

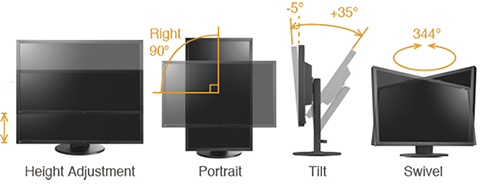

Ergonomic Stand

Adjust the screen to your ideal viewing position with EIZO’s versatile FlexStand.FlexStand

FlexStand



Getting Connected

Three input terminals are included for connecting to PCs. In addition, a USB hub and headphone/ audio jacks are conveniently located on the side of the monitor.

connectors



Ergonomics - Visual Comfort to Increase Your Productivity

Flicker-Free Images

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability.

TUV low blue light & flicker freeStefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

IPS Panel for a Clear View from All Angles

The IPS (in-plane switching) panel has 178° viewing angles so it exhibits minimal change in contrast and hue when viewed from off center. This makes it ideal for trading rooms or other multi-monitor environments.


Tireless Eyes

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occur throughout the day and automatically adjusts the screen to the ideal brightness level. Auto EcoView cuts power by almost 40% compared to operating the monitor at maximum brightness.

Auto EcoView

Adjustable to Just 1% of Maximum Brightness

In a dimly-lit work environment, a monitor with low brightness settings will be more comfortable to use. This monitor comes with an LED backlight that allows for adjusting the brightness to just 1% (about 3 cd/m2) of the maximum. With typical CCFL backlights the lowest you could adjust to would be a much brighter 20%. Just 1 percent brightness


Preset Modes for Optimum Viewing

Five preset modes (including two with user adjustable settings) ensure you always get the right setting for any application. You can switch modes at the touch of a button or automatically with the bundled ScreenManager Pro for LCD software.

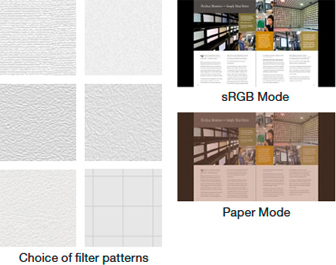

Paper Mode and EyeCare Filter Reduce Eye Fatigue

The Paper mode preset simulates the look of printed paper and helps prevent eyestrain when reading documents. When used with EyeCare Filter (available with the bundled ScreenManager Pro software), any of several filter patters that resemble different types of paper can be applied. You can adjust the density of the filter patterns for maximum viewing comfort.
Paper mode


Smooth Playback of Moving Images

An overdrive circuit reduces gray-to-gray response time to just 6 ms to ensure that moving images look clean and sharp.

Environment – Energy-Saving Features to Reduce Your Eco Footprint

LED Backlights – Less Power, Longer Life

Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free to have minimal impact on the environment when they are eventually disposed of.
less power, longer life

Reduce Power by up to 30%

A new feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.

Presence Sensor for Energy Savings

A presence sensor called EcoView Sense 2 prompts the monitor to switch to power save mode when you are absent and then power on again when you return. It even works in a multi-monitor setup so all monitors remain on when you're at your desk.


Compliance with International Labels

Meets the most stringent international labels for ergonomics and energy savings like TCO Certified Displays 6.0, EPA Energy Star, and EPEAT Gold.
TCOEnergy starElgonomicsepeat gold logo

Economy – Lower Total Cost of Ownership

5-Year Warranty

A manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

5 year warranty



Cabinet Color Gray, Black
Panel
Type IPS
Backlight LED
Size 23" / 58 cm (584 mm diagonal)
Native Resolution 1920 x 1080 (16: 9 aspect ratio)
Viewable Image Size (H x V) 509.1 x 286.4 mm
Pixel Pitch 0.2652 x 0.2652 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 300 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 6 ms (Gray-to-gray)
Video Signals
Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
Digital Scanning Frequency (H / V) 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
Sync Formats Separate
USB
Function 1 port for monitor control
2-port USB hub
Standard USB 2.0
Audio
Speakers 1.0 W +1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Power Save, Source (DisplayPort)
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 40 W
Typical Power Consumption 15 W
Power Save Mode Less than 0.3 W
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
Features & Functions
Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
Auto EcoView / BrightRegulator Yes
EcoView Sense Yes
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 540 x 368 - 478.5 x 233 mm
Dimensions (Without Stand, W x H x D) 540 x 317.5 x 56 mm
Net Weight 6.1 kg / 13.4 lbs
Net Weight (Without Stand) 3.7 kg / 8.2 lbs
Height Adjustment Range 140 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
Warranty Five Years
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Brochures

FlexScan General 2014, 9
13.7 MB

Download



Manuals

Languages



Document Language Size Download
EcoView NET Ver.1.3.1 User's Manual (English) English 917 KB Download
EV2316W / EV2336W / EV2416W / EV2436W User's manual English 5.3 MB Download
EV2316W / EV2336W / EV2416W / EV2436W / (FlexStand3) User's manual English 4.39 MB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide English
Chinese-Simplified
French
German
944 KB Download
ScreenSlicer Ver.1.1.5 Software manual (English) English 1.88 MB Download
ScreenManager Pro for LCD (DDC/CI) Ver.2.4.1 Software manual (English) English 1.16 MB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Arabic 821 KB Download
EV2316W / EV2336W / EV2416W / EV2436W User's manual Chinese-Simplified 5.14 MB Download
EV2316W / EV2336W / EV2416W / EV2436W / (FlexStand3) User's manual Chinese-Simplified 4.23 MB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Chinese-Traditional 930 KB Download
EV2316W / EV2336W / EV2416W / EV2436W / User's manual Czech 2.35 MB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Czech 823 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Danish 825 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Dutch 820 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Finnish 818 KB Download
EV2316W / EV2336W / EV2416W / EV2436W User's manual French 5.36 MB Download
EV2316W / EV2336W / EV2416W / EV2436W / (FlexStand3) User's manual French 4.44 MB Download
EV2316W / EV2336W / EV2416W / EV2436W User's manual German 5.33 MB Download
EV2316W / EV2336W / EV2416W / EV2436W / (FlexStand3) User's manual German 4.41 MB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Greek 830 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Italian 821 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Korean 946 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Norwegian 820 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Polish 823 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Russian 829 KB Download
EV2316W / EV2336W / EV2416W / EV2436W / (FlexStand3) User's manual Russian 4.46 MB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Spanish 816 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Swedish 820 KB Download
EV2316W / EV2336W / EV2416W / EV2436W (FlexStand3) Setup guide Turkish 819 KB Download
Panel Protector
FP-2301W

- Protect against dust and scratches
- Fit between screen and bezel
