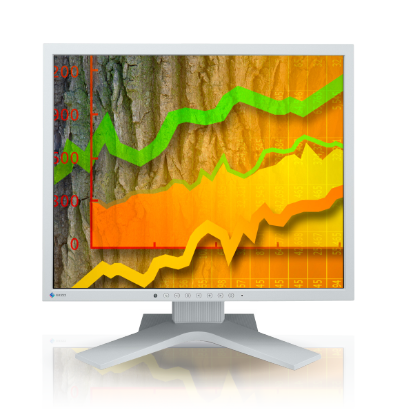

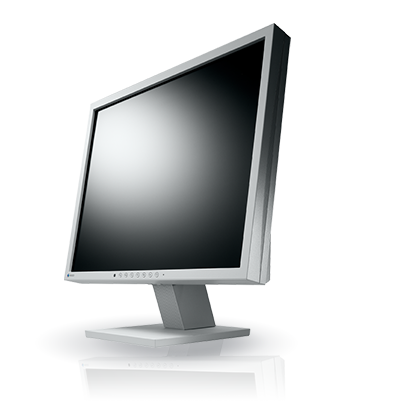

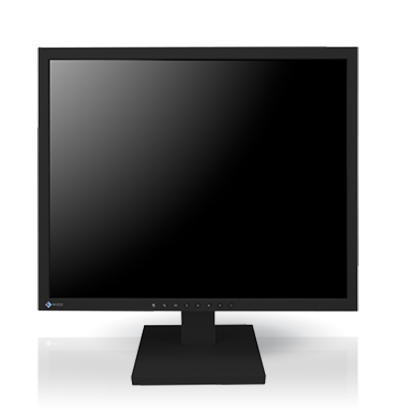

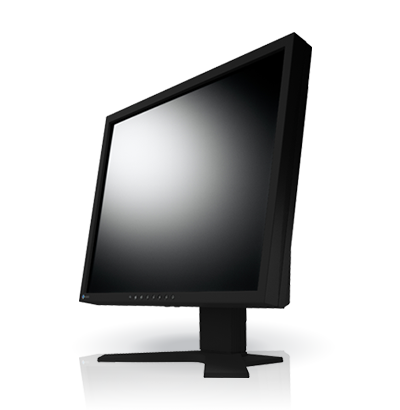

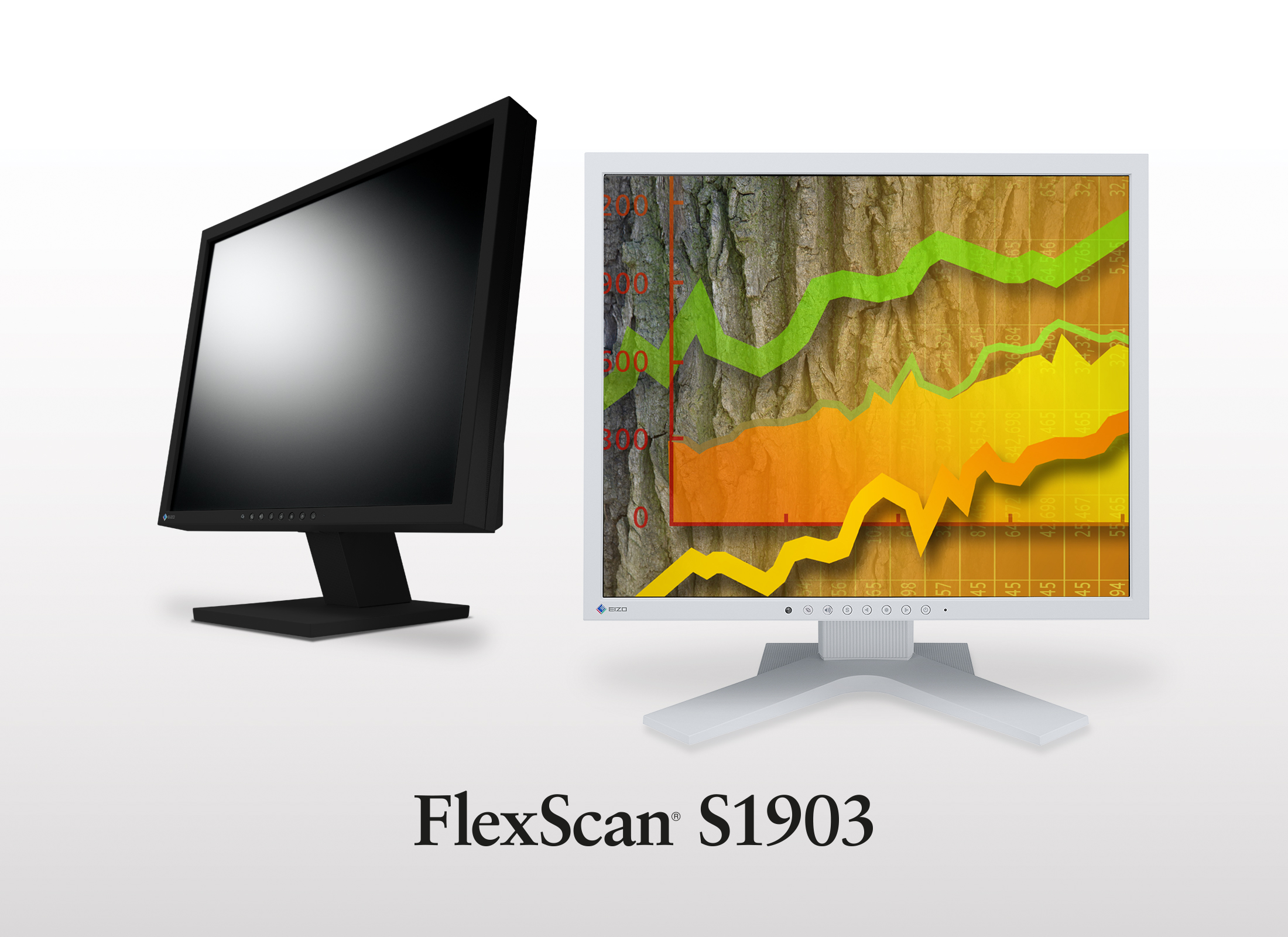

    FlexScan S1903
    19" (48 cm) LCD Monitor
    19" LED-Backlit Monitor Saves Energy and Reduces Eye Fatigue
    Ideal for business environments, this 19-inch LED-backlit monitor saves energy and reduces eye fatigue. It is backed by a 5-year warranty for a long buying cycle and low total cost of ownership.

    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories

    LED Backlight

    With an energy-saving LED backlight, the FlexScan S1903 uses only 11 watts during typical operation. The LED backlight does not contain any mercury for minimal environmental impact when the monitor is eventually disposed of.

    Digital and Analog Inputs

    connectors.With both DVI-D and D-Sub mini 15-pin inputs, you can use a computer that has either a digital or an analog graphics board (or both if connected to two computers), and quickly switch between the inputs via a front panel button.

    Built-In Speakers

    built-in speakers0.5-watt speakers are tucked away at the back of the monitor and out of view so you can enjoy sound while bezel size is kept to a minimum. A headphone jack is also built into the monitor.

    Sync-On-Green Signal Support

    Support for sync-on-green ensures this monitor can be used with legacy graphics boards that output this signal.

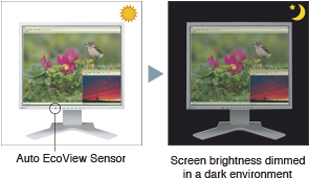

    Optimized Brightness with Auto EcoView

    The Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness to a level akin to viewing a sheet of paper under typical office lighting conditions. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.

    auto ecoview


    Improved Work Efficiency, Reduced Visual Fatigue

    EIZO conducted a survey to establish the relationship between eye fatigue and monitor use. The survey found that when you properly adjust your monitor’s brightness, the reduction in your ability to focus drops by half (Graph 1). In addition, maintaining correct working posture and taking regular breaks further reduced fatigue levels and increased work efficiency by 12.5% (Graph 2).

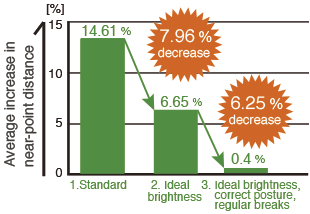

    Comparison between fatigue levels after monitor use

    vdt

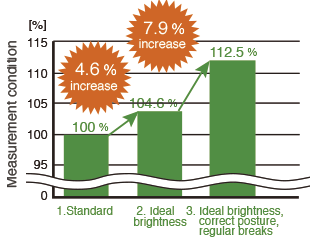

    Quantity of VDT work per unit of time
    vdt2

    EIZO monitor features like Auto EcoView, ergonomic stands, and the EyeCare utility help reduce eye fatigue and increase work efficiency.


    Eye Care Utility

    eye careThe EyeCare utility is EIZO -developed software that helps promote better work habits. It consists of a function called “EyeCare Reminder” that reminds you to take scheduled breaks.

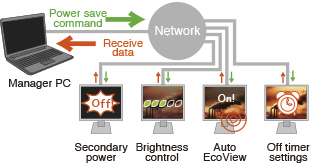

    Energy Savings across the Network

    EIZO’s EcoView NET power management software provides centralized control over the power settings of monitors on a network. With EcoView NET, a systems administrator can confirm the settings for each monitor on the network, turn the power on or off, and if necessary, take measures to combat eye fatigue such as adjust the brightness or activate Auto EcoView. EcoView NET is available from EIZO distributors.
    network

    Made by EIZO

    quality.While outsourcing production is now common practice in the monitor industry, EIZO continues to manufacture its products the same way it has throughout its 40-year history – with its own staff at its own factories. This allows EIZO to maintain close control over production quality and offer the industry’s only 5-year manufacturer’s limited warranty.

    Compliance with International Labels
    TCOEnergy starElgonomicsepeat gold

    Auto Image Adjustment

    The monitor discerns the input signal from the PC and automatically adjusts the clock, phase, image location, size, etc. In addition, the signal cables that are bundled were developed by EIZO to reduce noise.

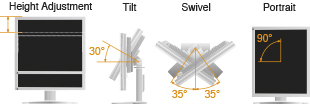

    Viewing Comfort with an Ergonomic Stand

    Adjust the screen to the most comfortable position with 100 mm height adjustment, 30° tilt, 70° swivel, and 90° rotation for portrait mode. A basic stand that offers 35° of tilt is also available.
    ergonomic stand

    VESA Mount Version

    For customers that will provide their own VESA-compatible mounting solutions, the FlexScan S1903 is available without a stand.

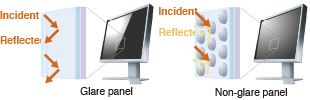

    Anti-Glare Treatment

    A non-glare screen reduces eye fatigue by dissipating reflective light that otherwise makes the screen difficult to view. Furthermore, the surface of the bezels is treated to prevent light reflection.
    anti glare

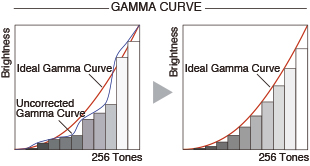

    10-Bit Gamma Correction

    This technology helps achieve accurate color by converting the 8-bit PC data to 10-bit, and assigning the ideal gamma values with a 10-bit look-up table (LUT) then returning the data to 8-bit format for display.
    10-bit gamma correction

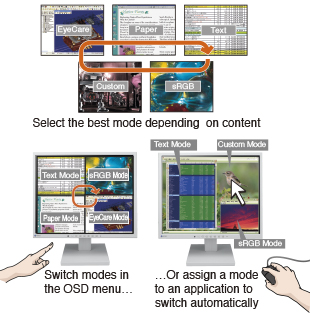

    Preset Modes for Optimum Viewing

    With EIZO’s Fine Contrast function you can choose from several preset modes for the various applications you work with. Toggling between modes can be done manually in the OSD menu or automatically by assigning a mode to a particular application with the bundled ScreenManager Pro for LCD software.
    preset modes

    Prevents Eye Fatigue in Dimly-Lit Offices

    Fine Contrast includes an EyeCare mode that reduces the screen’s brightness to just 3 cd/m2. This ultra-low brightness helps prevent eye fatigue and increase productivity when working in an environment with very dim ambient lighting such as a CAD studio

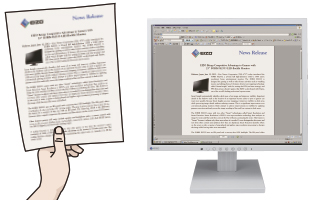

    Closely Simulates Documents and Books

    Paper mode simulates the look of printed paper by raising the black level and lowering the contrast ratio. Together with the Auto EcoView ambient brightness sensor, Paper mode reduces the amount of blue light emanating from the monitor for less eyestrain.
    paper mode

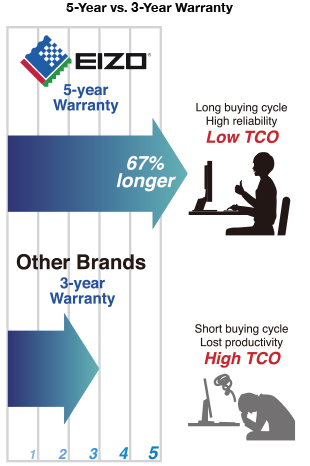

    Built to Last Five Years

    EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S1903 is higher than another 19-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
    5 year vs. 3 year warranty



    Model Variations With Height Adjustable Stand, With Tilt Stand, Without Stand
    Cabinet Color Gray, Black
    Panel
    Type TN
    Backlight LED
    Size 19" / 48 cm (481 mm diagonal)
    Native Resolution 1280 x 1024 (5:4 aspect ratio)
    Viewable Image Size (H x V) 376.3 x 301.0 mm
    Pixel Pitch 0.294 x 0.294 mm
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angles (H / V, typical) 170°, 160°
    Brightness (typical) 250 cd/m2
    Contrast Ratio (typical) 1000:1
    Response Time (typical) 5 ms (black-white-black)
    Video Signals
    Input Terminals D-Sub mini 15 pin, DVI-D 24 pin (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H / V) 31 - 80 kHz, 50 - 75 Hz
    Sync Formats Separate, Sync on green
    Audio
    Speakers 0.5 W + 0.5 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 23 W
    Typical Power Consumption 11 W
    Power Save Mode Less than 0.5 W
    Power Management Power Save (VESA DPM and DVI DMPM), Eco Timer
    Features & Functions
    Preset Modes FineContrast (Text, sRGB, EyeCare, Paper, Custom)
    Auto EcoView / BrightRegulator Yes
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Color Adjustment (Brightness, Contrast, Temperature, Gain, Reset), Input Signal, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Position, Adjustment Lock, DDC/CI Lock, Reset
    Physical Specifications
    Dimensions (Landscape, W x H x D) With Height Adjustable Stand: 405 x 406.5 - 506.5 x 205 mm
    With Tilt Stand: 405 x 416 x 205 mm
    Dimensions (Without Stand, W x H x D) 405 x 334 x 61.5 mm
    Net Weight With Height Adjustable Stand: 5.9 kg / 13.0 lbs
    With Tilt Stand: 4.9 kg / 10.8 lbs
    Net Weight (Without Stand) 4.1 kg / 9.0 lbs
    Height Adjustment Range With Height Adjustable Stand: 100 mm
    With Tilt Stand: -
    Tilt With Height Adjustable Stand: 30° Up, 0° Down
    With Tilt Stand: 30° Up, 5° Down
    Swivel With Height Adjustable Stand: 35° Right / 35° Left
    With Tilt Stand: -
    Pivot With Height Adjustable Stand: 90°
    With Tilt Stand: -
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (except for Tilt Stand version)/ Silver (Tilt Stand version) (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, C-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (D-Sub - D-Sub, DVI-D - DVI-D), audio cable, setup guide, CD-ROM (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], ScreenSlicer software)
    Warranty Five Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

    Brochures

    FlexScan S1903
    717 KB

    Download



    Manuals

    Languages



    Document Language Size Download
    EcoView NET Ver.1.3.1 User's Manual (English) English 917 KB Download
    ScreenSlicer Ver.1.1.5 Software manual (English) English 1.88 MB Download
    S1703 / S1903 /S1923 /S1933 Setup guide English
    Chinese-Simplified
    French
    German
    1.79 MB Download
    ScreenManager Pro for LCD (DDC/CI) Ver.2.4.1 Software manual (English) English 1.16 MB Download
    S1933 / S1903 / S1703 User's manual English 3.31 MB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Arabic) Arabic 528 KB Download
    S1933 / S1903 / S1703 User's manual Chinese-Simplified 3.37 MB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Chinese-Traditional) Chinese-Traditional 639 KB Download
    S1903 / S1703 User's manual Czech 1.72 MB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Czech) Czech 509 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Danish) Danish 504 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Dutch) Dutch 506 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Finnish) Finnish 505 KB Download
    S1933 / S1903 / S1703 User's manual French 3.52 MB Download
    S1933 / S1903 / S1703 User's manual German 3.32 MB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Greek) Greek 515 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Italian) Italian 504 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Korean) Korean 595 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Norwegian) Norwegian 505 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Polish) Polish 508 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Portuguese) Portuguese 513 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Russian) Russian 511 KB Download
    S1933 / S1903 / S1703 User's manual Russian 3.42 MB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Spanish) Spanish 504 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Swedish) Swedish 505 KB Download
    S1933 / S1923 / S1903 / S1703 / Setup guide (Turkish) Turkish 506 KB Download
    Panel Protector
    FP-702

    - Protect against dust and scratches
    - Fit between screen and bezel

    Stand
    LS-HM1-D

    Supports two LCD monitors.
    Height adjustable in six increments
