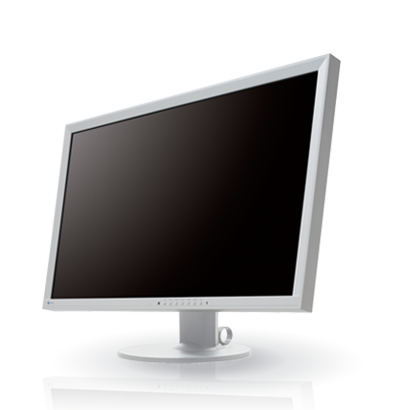

FlexScan EV2736W
27" (68 cm) LCD Monitor
Stellar results for your business and your budget.
The ergonomic and eco features of this 27" monitor make office work more comfortable while keeping power usage in check. It will also give you piece of mind with a five-year warranty which is two years longer than the standard warranty of most monitors.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories
  • Awards & Reviews

Simple Design for Convenience

Slim Bezels

A new thin bezel design saves space on the desktop and minimizes eye movement between screens in a multi-monitor environment.
Slim bezels

Thomson Reuters Eikon is a trademark of Thomson Reuters and its affiliated companies.


Adjustable Stand

Adjust the screen to the most comfortable angle for you and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait mode display.

EV2736W moving range



Getting Connected

Two input terminals are included for connecting to PCs. In addition, a USB hub and headphone/ audio jacks are conveniently located on the side of the monitor.


*60 Hz (2560 x 1440) signal input requires a Dual-Link DVI cable.

Ergonomics - Visual Comfort to Increase Your Productivity

Flicker-Free Images

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability.

IPS Panel for a Clear View from All Angles

The IPS (in-plane switching) panel has 178° viewing angles so it exhibits minimal change in contrast and hue when viewed from off center. This makes it ideal for trading rooms or other multi-monitor environments.


Tireless Eyes

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occur throughout the day and automatically adjusts the screen to the ideal brightness level. Auto EcoView cuts power by almost 40% compared to operating the monitor at maximum brightness.

Auto EcoView

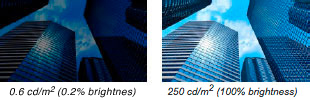

Adjustable to Just 0.2% of Maximum Brightness

In a dimly-lit work environment, a monitor with low brightness settings will be more comfortable to use. This monitor comes with an LED backlight that allows for adjusting the brightness to just 0.2% (about 0.6 cd/m2) of the maximum. With typical CCFL backlights the lowest you could adjust to would be a much brighter 20%.

low brightness


Preset Modes for Optimum Viewing

Five preset modes (including two with user adjustable settings) ensure you always get the right setting for any application. You can switch modes at the touch of a button or automatically with the bundled ScreenManager Pro for LCD software.

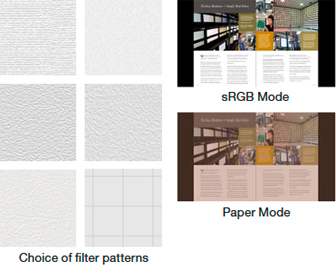

Paper Mode and EyeCare Filter Reduce Eye Fatigue

The Paper mode preset simulates the look of printed paper and helps prevent eyestrain when reading documents. When used with EyeCare Filter (available with the bundled ScreenManager Pro software), any of several filter patters that resemble different types of paper can be applied. You can adjust the density of the filter patterns for maximum viewing comfort.
paper mode


Smooth Playback of Moving Images

An overdrive circuit reduces gray-to-gray response time to just 6 ms to ensure that moving images look clean and sharp.

Environment – Energy-Saving Features to Reduce Your Eco Footprint

LED Backlights – Less Power, Longer Life

Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free to have minimal impact on the environment when they are eventually disposed of.
less power, longer life

Presence Sensor for Energy Savings

A presence sensor called EcoView Sense 2 prompts the monitor to switch to power save mode when you are absent and then power on again when you return. It even works in a multi-monitor setup so all monitors remain on when you're at your desk.



Compliance with International Labels

Meets the most stringent international labels for ergonomics and energy savings like TCO Certified Displays 6.0, EPA Energy Star, and EPEAT Gold.
TCOEnergy starElgonomicsepeat gold logo

Economy – Lower Total Cost of Ownership

5-Year Warranty

A manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

5 year warranty

Color Matching

EasyPIXHardware Calibration with Optional EIZO EasyPIX

EIZO EasyPIX is a hardware calibration solution that directly adjusts the monitor’s color settings to ensure predictable color. EasyPIX is sold separately and consists of software and the EIZO EX2 color sensor.

 Graphics board support information

Model Variations With FlexStand, Without Stand
Cabinet Color Gray, Black
Panel
Type IPS
Backlight LED
Size 27" / 68 cm (684 mm diagonal)
Native Resolution 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.6 mm
Pixel Pitch 0.233 x 0.233 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 300 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 6 ms (Gray-to-gray)
Video Signals
Input Terminals DisplayPort x 1 DVI-D 24 pin x 1 (with HDCP)
Digital Scanning Frequency (H / V) 31 - 89 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz, WQHD SL: 29 - 31 Hz)
USB
Function 1 port for up stream
2-port USB hub
Standard USB 2.0
Audio
Speakers 1.0 W +1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Power Save, Source (DisplayPort)
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 67 W
Typical Power Consumption 24 W
Power Save Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Off Timer
Features & Functions
Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
Auto EcoView / BrightRegulator Yes
EcoView Sense Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 640 x 404.5 - 554.5 x 245 mm
Dimensions (Without Stand, W x H x D) 640 x 379 x 65 mm
Net Weight 9.9 kg / 21.8 lbs
Net Weight (Without Stand) 7.3 kg / 16.1 lbs
Height Adjustment Range 150 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D[dual link supported]), DisplayPort - DisplayPort), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
Warranty Five Years
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Brochures

FlexScan General 2014, 9
13.7 MB

Download



Manuals

Languages



Document Language Size Download
EV2736W Setup guide English
Chinese-Simplified
French
German
701 KB Download
EV2736W User's manual English 2.54 MB Download
EcoView NET Ver.1.3.1 User's Manual (English) English 917 KB Download
ScreenSlicer Ver.1.1.5 Software manual (English) English 1.88 MB Download
ScreenManager Pro for LCD (DDC/CI) Ver.2.4.1 Software manual (English) English 1.16 MB Download
EV2736W(FlexStand3) Setup guide English
Chinese-Simplified
French
German
3.79 MB Download
EV2736W (FlexStand3) User's manual English 3.07 MB Download
EV2736W Setup guide Arabic 597 KB Download
EV2736W(FlexStand3) Setup guide Arabic 3.73 MB Download
EV2736W User's manual Chinese-Simplified 2.41 MB Download
EV2736W (FlexStand3) User's manual Chinese-Simplified 2.94 MB Download
EV2736W Setup guide Chinese-Traditional 641 KB Download
EV2736W(FlexStand3) Setup guide Chinese-Traditional 3.92 MB Download
EV2736W Setup guide Czech 595 KB Download
EV2736W User's manual Czech 995 KB Download
EV2736W(FlexStand3) Setup guide Czech 3.7 MB Download
EV2736W Setup guide Danish 592 KB Download
EV2736W(FlexStand3) Setup guide Danish 3.7 MB Download
EV2736W Setup guide Dutch 592 KB Download
EV2736W(FlexStand3) Setup guide Dutch 3.7 MB Download
EV2736W Setup guide Finnish 591 KB Download
EV2736W(FlexStand3) Setup guide Finnish 3.7 MB Download
EV2736W User's manual French 2.56 MB Download
EV2736W (FlexStand3) User's manual French 3.11 MB Download
EV2736W User's manual German 2.55 MB Download
EV2736W (FlexStand3) User's manual German 3.09 MB Download
EV2736W Setup guide Greek 602 KB Download
EV2736W(FlexStand3) Setup guide Greek 3.71 MB Download
EV2736W Setup guide Italian 590 KB Download
EV2736W(FlexStand3) Setup guide Italian 3.69 MB Download
EV2736W Setup guide Korean 693 KB Download
EV2736W(FlexStand3) Setup guide Korean 3.87 MB Download
EV2736W Setup guide Norwegian 591 KB Download
EV2736W(FlexStand3) Setup guide Norwegian 3.69 MB Download
EV2736W Setup guide Polish 594 KB Download
EV2736W(FlexStand3) Setup guide Polish 3.7 MB Download
EV2736W Setup guide Portuguese 593 KB Download
EV2736W(FlexStand3) Setup guide Portuguese 3.7 MB Download
EV2736W Setup guide Russian 600 KB Download
EV2736W User's manual Russian 2.58 MB Download
EV2736W(FlexStand3) Setup guide Russian 3.72 MB Download
EV2736W (FlexStand3) User's manual Russian 3.12 MB Download
EV2736W Setup guide Spanish 592 KB Download
EV2736W(FlexStand3) Setup guide Spanish 3.69 MB Download
EV2736W Setup guide Swedish 591 KB Download
EV2736W(FlexStand3) Setup guide Swedish 3.7 MB Download
EV2736W Setup guide Turkish 593 KB Download
EV2736W(FlexStand3) Setup guide Turkish 3.7 MB Download
Color Matching Tool
EIZO EasyPIX

- Color matching tool for professionals and amateur SLR camera users
- Hardware calibration for screen-to-print color matching

Panel Protector
FP-2703W

- Protect against dust and scratches
- Fit between screen and bezel

Arms
LA-030-W

Position the monitor almost anywhere with forward/backward and side-to-side movement

Arms
LA-011-W

35° up tilt and 180° swivel wide adjustment range
