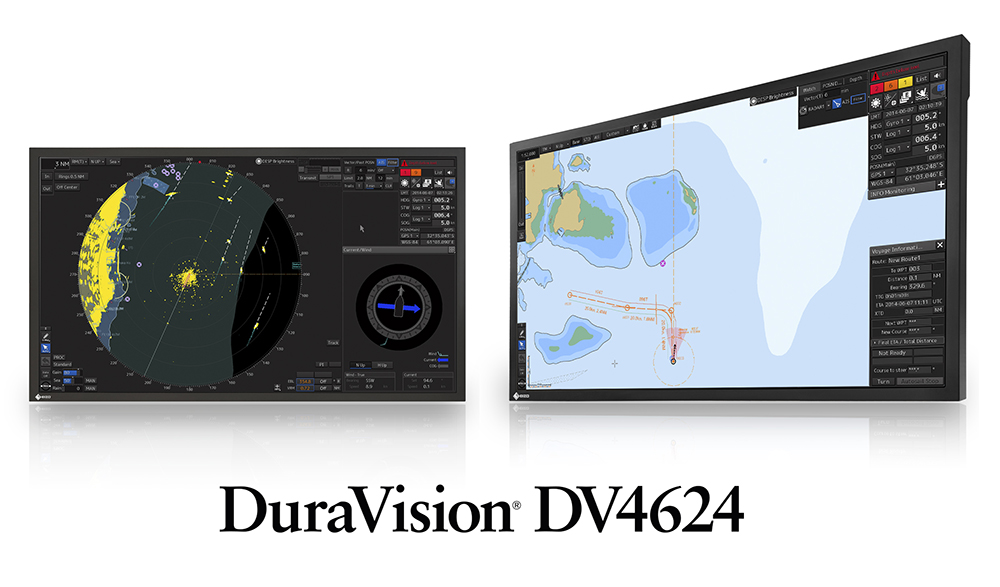

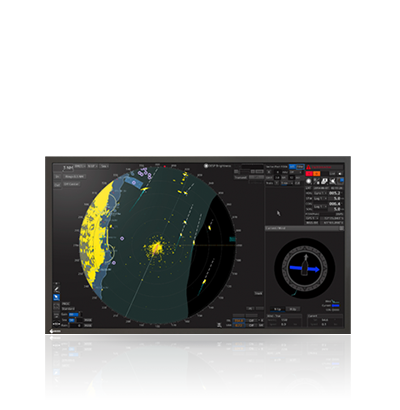

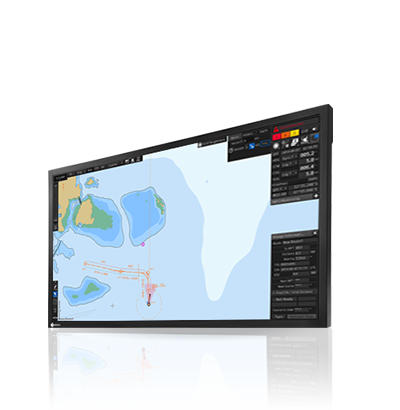

DuraVision DV4624
46" (117 cm) Marine Monitor
46" Full HD Monitor for ECDIS, Radar, and Conning Applications
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories

Large 46" Screen

The DuraVision DV4624's large screen provides ample space for viewing important nautical information from one or more bridge system applications in a single location. Images are displayed pixel-by-pixel in full high definition (1920 × 1080) to provide operators with vivid picture for precise observation.

Durable and Reliable

The monitor offers reliability for use in harsh maritime environments, complying with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. IP55 rating ensures it can withstand dust ingress and is protected against low-pressure water jets. The monitor uses stainless steel industrial-grade housing for durability.

Long-Lasting LED Backlight

The monitor is equipped with an LED backlight that lasts longer and consumes less power compared to conventional CCFL backlights. It is also mercury-free for minimal impact on the environment.

Wide Dimming Range

The wide dimming range of less than 1 cd/m2 up to 600 cd/m2 allows controllers to adjust to the appropriate brightness level for viewing during the day or at night.

Clear View

The VA panel features wide viewing angles of 178° that minimize changes in contrast and gradation to maintain excellent visibility when the screen is viewed from the side.

Calibrated for ECDIS

Backlight brightness, gamma, and RGB color settings are calibrated at the factory so each monitor achieves accurate color reproduction for meeting the highly specialized requirements of ECDIS systems.

Non-Intrusive Hardware Calibration

The monitor comes equipped with hardware calibration functionality using the optional EIZO EACAL-R01 luminance meter. Easily accessed through the OSD menu, calibration of the backlight brightness, gamma, and white point can be carried out in just minutes. No additional software is needed, ensuring calibration operation is non-intrusive to your system.

Picture-in-Picture

Picture-in-Picture (PiP) functionality allows operators to display a small separate screen from a second signal source within the monitor to effectively view a variety of navigational information.

Complete Connection

DVI and D-Sub inputs offer compatibility with PCs equipped with digital or analog graphics boards. Composite video (CVBS) that supports NTSC, PAL, and SECAM is also included for displaying radar images or video surveillance. It also comes equipped with a wide range of communication interfaces - RS232, RS485, USB, Ethernet, and Modbus.

connectors



Model Variations Without Stand
Cabinet Color Black
Panel
Type VA
Backlight LED
Size 46" / 117 cm (1168 mm diagonal)
Native Resolution 1920 x 1080
Viewable Image Size (H x V) 1018.0 x 572.7 mm
Pixel Pitch 0.5303 x 0.5303 mm
Grayscale Tones 256 tones
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 600 cd/m2
Contrast Ratio (typical) 4000:1
Response Time (typical) 6.5 ms (Gray to Gray)
Video Signals
Input Terminals DVI-I 29 pin x 1, DVI-D 24 pin x 1, VGA HD-D-Sub15 pin x 1, CVBS(BNC) x 1
Digital Scanning Frequency (H / V) 15 - 100 kHz, 50 - 100 Hz (Max. Dotclk: 155 MHz)
Analog Scanning Frequency (H / V) 15 - 100 kHz, 50 - 100 Hz (Max. Dotclk: 155 MHz)
Sync Formats Separate, Composite, Sync on Green
Video Input Format PAL, NTSC, SECAM
USB
Function 1 port for communication
Standard USB 2.0
Power
Power Requirements AC 90 - 240 V , 47 / 63 Hz
DC 18 -36 V
Maximum Power Consumption AC 110 W, DC 100 W (Brightness Max.)
Typical Power Consumption AC 35 W, DC 30 W (Brightness 80 cd/m2)
Power Save Mode Less than 16 W (AC input)
Less than 10 W (DC input)
Standby Mode AC 4 W, DC 2 W
Power Management Power Save (VESA DPMS)
Features & Functions
Preset Modes Color Mode (Custom, Day, Dusk, Night)
OSD Languages English, German, Spanish, French
Communication Protocol Modbus, SNMP, EIZO proprietary
Features & Functions
Communication Interface RS232, RS485, USB, Ethernet, ext. Keyboard
Physical Specifications
Dimensions (Without Stand, W x H x D) 1067 x 622.5 x 89.6 mm
Net Weight 31 kg / 68.3 lbs
Environmental Requirements
Operating Temperature -15 - 55 °C
Operating Humidity (R.H., non condensing) max. 95 %
Storage Temperature -20 - 70 °C
Degree of Protection IP55 (front)
IP20 (Rear)
Certifications & Standards (Please contact EIZO for the latest information.) IEC60945, RoHS, REACH
Supplied Accessories Setup manual, connectors for RS485, DC-Power and keyboard interface
Warranty 2 years
