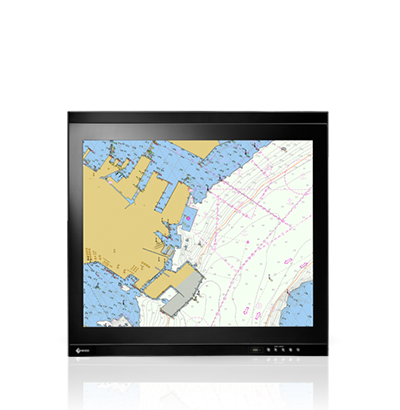

DuraVision FDS1904T
19" Touch Screen Marine Monitor
Panel Mount Touch Screen Marine Monitor with LED Backlight for ECDIS / RADAR Applications
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories

Durable and Reliable

The monitor offers durability for use in harsh maritime environments, complying with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. IP65 rating ensures they can withstand dust ingress and is protected against low-pressure water jets. A coating is applied to make the electronic substrates moisture-proof and the cooling fan is easily accessible for exchanging purposes.

Approval from Classification Societies

The monitor meets the requirements for major maritime classifications. It comes standard with approvals for LR (UK), DNV (Norway), ABS (USA), and ClassNK (Japan). Additional certifications for GL (Germany), BV (France), KR (Korea), and CCS (China) are available on request.

Long-Lasting LED Backlight

The monitor is equipped with an LED backlight. Compared to conventional CCFL backlights, LED backlights last longer and consume less power. It is also mercury-free for minimal impact on the environment.

Calibrated for ECDIS

Backlight brightness, gamma, and RGB color settings are calibrated at the factory so each monitor achieves accurate color reproduction for meeting the highly specialized requirements of ECDIS systems. The monitor meets IEC 61174, IEC 62288, and IEC 62388 international standards for ECDIS and RADAR applications.

Wide Dimming Range

The wide dimming range of less than 1 cd/m2 up to 540 cd/m2 allows you to adjust to the appropriate brightness level for viewing during the day or at night.

Clear View

The VA panel features wide viewing angles that minimize changes in contrast and gradation to maintain excellent visibility when the screen is viewed from the side. An AR coating is applied to reduce the amount of reflections on the screen for a clear display.

Projected Capacitive Touch Panel

The monitor features a projected capacitive touch panel that accepts touch input from a bare hand or special stylus and supports multi-touch operation. The panel is also highly resistant to dust and water droplets to minimize unintended input.

Optical Bonding for High Visibility

EIZO optical bondingOptional optical bonding is available for the monitor. Optical bonding significantly reduces reflective light for high visibility even when the screen is viewed in direct sunlight. A screen with optical bonding is also more resistant to applied pressure, giving it increased physical durability.

optical bonding

24-Hour Use, 3-Year Warranty

The monitor is built for 24-hour use and are backed by a three-year manufacturer's warranty for long-term reliability.





Model Variations Panel mount
Cabinet Color Black
Panel
Type VA
Backlight LED
Size 19" / 48 cm (481 mm diagonal)
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 376.3 x 301.0 mm
Pixel Pitch 0.294 x 0.294 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 540 cd/m2
Contrast Ratio (typical) 2000:1
Response Time (typical) 20 ms (Black-white-black)
Touch Panel
Type Projected Capacitive
Communication Protocol USB, RS-232C
Touch Life 50 million touches (minimum)
Surface Hardness 5H
Compatible OS Windows 8.1 (32-bit/64-bit)/Windows 8 (32-bit/64-bit)/ Windows 7 (32-bit/64-bit)/ Windows XP (32-bit)
Video Signals
Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1, D-sub 9 pin(female) x 1 (for monitor control)
Output Terminals (Loop Through) D-Sub mini 15 pin x 1
Digital Scanning Frequency (H / V) 31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 80 kHz, 56 - 76 Hz
Sync Formats Separate, Composite, Sync on Green
USB
Function 1 port for touch panel control
Standard USB 2.0
Power
Power Requirements AC 85 - 264 V , 50 / 60 Hz
DC +24V +30%/-10%
Maximum Power Consumption 64 W
Power Save Mode Less than 9 W (AC input)
Less than 6W (DC input)
Standby Mode Less than 7 W (AC input)
Less than 5W (DC input)
Power Management Power Save (VESA DPM and DVI DMPM), ECO Timer
Features & Functions
Preset Modes Color Mode (Custom, Day, Dusk, Night)
Communication Protocol VESA DDC2B
Physical Specifications
Dimensions (Panel Mount, W x H x D) 429 x 406 x 75 mm
Net Weight (Panel Mount) 6.4 kg / 14.1 lbs
Environmental Requirements
Operating Temperature -15 - 55 °C
Operating Humidity (R.H., non condensing) 10 - 90 %
Degree of Protection IP65 (front)
IP22 (Rear)
Certifications & Standards (Please contact EIZO for the latest information.) Ship Classification: NK(Japan), LR(UK), ABS(US), DNV(Norway)
General: CB, CE, RoHS, WEEE, China RoHS, IEC60945 (EMC/environmental testing), IEC62288/IEC61174/IEC62388 (items for monitor), KC (K60950-1, K00022, K00024)
Supplied Accessories Setup manual, CD-ROM, AR cloth
Warranty 3 years
