DuraVision FDS1721T
17" Touch Screen Monitor
Highly durable touch screen monitor for routine use in factories, clean rooms, and public access areas
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents

Clear and Bright Image Display

The FDS1721T uses surface acoustic wave technology (SAW) which exhibits higher light transmittance compared with other touch technologies for high visibility. The full color display produces 16.7 million colors and has a high contrast ratio of 1000:1 for smooth and clear images.

Easy-to-Operate Touch Panel

With SAW technology, the screen accepts touch input from both bare and gloved hands as well as styluses, making it easy to use in factories, clean rooms, and public access areas.

Low Maintenance

SAW technology has minimal deviation of the touch point to ensure high stability and consistent touch accuracy. Touch screen recalibration can also be carried out with minimal effort.

Durable and Reliable

The screen’s non-scratch surface is made of reinforced glass to ensure that it is durable enough to withstand regular use in public access areas. In addition, the monitor is covered by a 3-year warranty, offering a long service life.

Long-Lasting LED Backlight

The monitor is equipped with a long-lasting LED backlight that lowers energy consumption and is mercury-free to reduce environmental impact.
Long-lasting LED backlight

Effective Energy Management

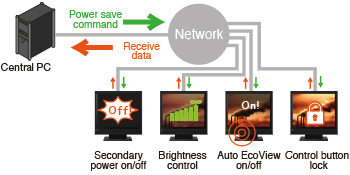

The monitor is compatible with EcoView NET power management software which allows you to manage the brightness and power settings of all EIZO monitors from one central location. The Auto EcoView sensor can also be configured to automatically adjust brightness according to ambient lighting. This ensures effective energy management in environments using multiple monitors.

effective energy management

Preset Modes for Optimum Viewing

With EIZO’s Fine Contrast function, you can choose from several preset modes for optimum viewing of a variety of applications - Text, sRGB, EyeCare, and Custom (user defined settings). EyeCare mode reduces eye fatigue in environments with little to no ambient lighting by lowering the screen’s brightness to just 3 cd/m2.

Digital and Analog Inputs

The monitor is equipped with both DVI-D and D-Sub mini 15-pin inputs for connecting to a PC with either a digital or an analog graphics board. In addition, it comes with a USB upstream port and voice input jack.

connectors

Built-in Speakers

Dual 0.5-watt stereo speakers are built into the bottom bezel for multimedia applications or audio confirmation of touch input.



Model Variations With Stand, Without Stand
Cabinet Color Gray, Black
Panel
Type TN
Size 17" / 43 cm (432 mm diagonal)
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 337.9 x 270.3 mm
Pixel Pitch 0.264 x 0.264 mm
Grayscale Tones 256 tones (a palette of 1021 tones)
Display Colors 16.77 million from a palette of 1.06 billion
Viewing Angles (H / V, typical) 170°, 160°
Brightness (typical) 200 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (Black-white-black)
Touch Panel
Type Surface acoustic wave
Communication Protocol USB
Touch Life 50 million touches (minimum)
Compatible OS Windows 7 (32-bit, 64-bit) / Vista (32-bit) / XP (32-bit) / 2000 (32-bit)
Video Signals
Input Terminals D-Sub mini 15 pin, DVI-D 24 pin
Digital Scanning Frequency (H / V) 31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 80 kHz, 50 - 75 Hz
Sync Formats Separate
USB
Function 1 port for touch panel control
Standard USB 2.0
Audio
Speakers 0.5 W + 0.5 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 29 W
Power Save Mode Less than 2.6 W
Standby Mode Less than 0.6 W
Power Management Power Save (VESA DPM and DVI DMPM), Eco Timer
Features & Functions
Preset Modes sRGB, Custom, EyeCare, Text
Auto EcoView / BrightRegulator Yes
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto)), Smoothing (5 stages), Color Adjustment (Brightness, Contrast, Gamma, Temperature, Gain, Reset), Signal Settings, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 380 x 397.5 x 157 mm
Dimensions (Without Stand, W x H x D) 380 x 353 x 58 mm
Net Weight 7.5 kg / 16.5 lbs
Net Weight (Without Stand) 4.8 kg / 10.6 lbs
Height Adjustment Range -
Tilt 30° Up, 0° Down
Swivel -
Pivot -
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) C-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-A, TUV/S, VCCI-B, RoHS, WEEE, CCC, China RoHS
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, D-Sub - D-Sub), USB cable, audio cable, EIZO LCD Utility Disk (PDF user's manual, touch panel driver), setup guide, 4 screws for mount option
Warranty Three Years
Dimension Drawing PDF
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
