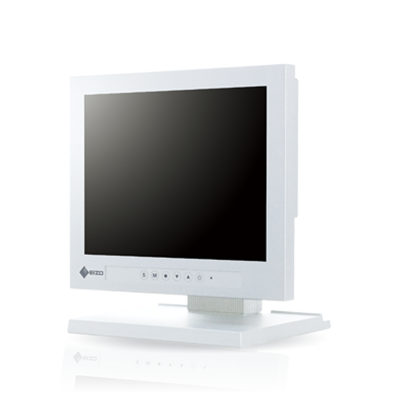

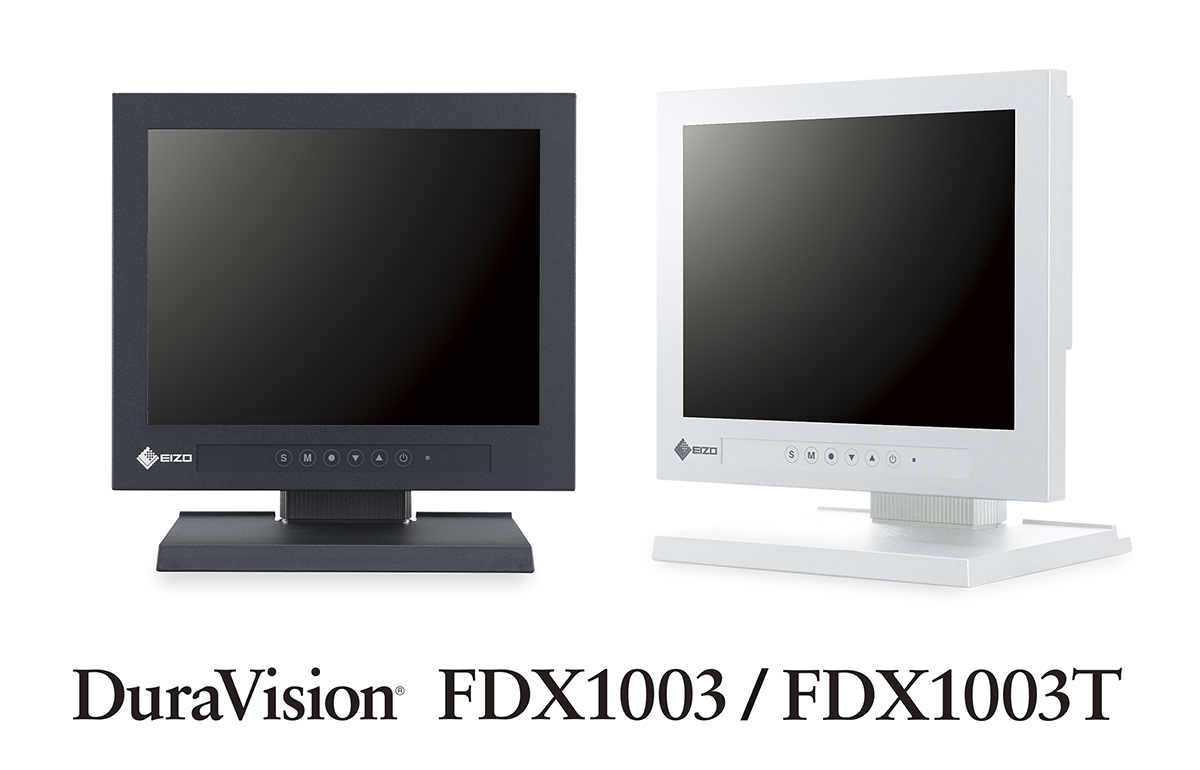

DuraVision FDX1003T
10.4" (26 cm) Touch Screen LCD Monitor
Highly Durable 10.4" Industrial Monitor with High Brightness and Multiple Mounting Options
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents

Flexible Installation

To meet the requirements of different industrial installations, the monitor is available in four configurations – desktop, VESA mount, panel mount, and chassis.

mount options

High Brightness for Visibility

The maximum brightness of 460 cd/m2 ensures excellent screen visibility in bright ambient environments. The brightness is adjustable to as low as 0.5 cd/m2, making it easy to view in low ambient lighting conditions.

Durable Build

The monitor can withstand temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes and the perimeter of the control buttons are sealed, making it impervious to liquids and dust.

top view and buttons

Touch Panel Variation

touch screenThe monitor is equipped with an analog resistive touch panel that has a minimum touch life of 10 million touches. It accepts touch input from both bare and gloved hands as well as styluses. It is also more resistant to dust and water compared to other touch technologies for increased durability.

Flexible Positioning

The monitor is built to operate in both standard horizontal positions and non-standard positions such as attached to a mounting device or tilted at an extreme angle. In addition, images can be viewed rotated at 180° using a function accessed via the monitor’s front buttons for viewing flexibility.



Model Variations With Stand, Without Stand
Cabinet Color Gray, Black
Panel
Type TN
Size 10.4" / 26 cm (263 mm diagonal)
Native Resolution 1024 x 768 (4:3 aspect ratio)
Viewable Image Size (H x V) 210.4 x 157.8 mm
Pixel Pitch 0.2055 x 0.2055 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 160°, 130°
Brightness (typical) 460 cd/m2
Contrast Ratio (typical) 700:1
Response Time (typical) 16 ms (Black-white-black)
Touch Panel
Type Analog resistive
Communication Protocol USB 2.0 / RS-232C
Touch Life 10 million touches (minimum)
Compatible OS Windows 7(64bit, 32 bit) / Vista(32-bit) / XP(32-bit)
Video Signals
Input Terminals DVI-D 24 pin x 1 (with HDCP), D-Sub mini 15 pin x 1
Digital Scanning Frequency (H / V) 31 - 49 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 24 - 61 kHz, 55 - 76 kHz
Sync Formats Separate
Power
Power Requirements Monitor: DC 12 V
AC Adapter: AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption DC: 9 W
AC: 10 W
Standby Mode DC: Less than 0.5 W
AC: Less than 1.0 W
Power Management Power Save (VESA DPM and DVI DMPM), ECO Timer
Features & Functions
Preset Modes Color Mode (User1, User2, sRGB)
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Color Adjustment (Brightness, Temperature, Gain, Saturartion, Hue, Reset, Color Mode), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), Reverse, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 252 x 255 x 175 mm
Dimensions (Without Stand, W x H x D) 252 x 216 x 45 mm
Net Weight 3.7 kg / 8.1 lbs
Net Weight (Without Stand) 2.0 kg / 4.4 lbs
Height Adjustment Range -
Tilt 30° Up, 0° Down
Swivel 35° Right, 35° Left
Pivot -
Hole Spacing (VESA Standard) 100×100 mm
Environmental Requirements
Operating Temperature Monitor: 0 - 50 °C
AC Adapter: 0 - 40 °C
Operating Humidity (R.H., non condensing) Monitor: 20 - 90 %
AC Adpter: 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, CTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, CCC, RCM, RoHS, WEEE, China RoHS, J-Moss Green mark Guideline
Supplied Accessories AC adaptor, Signal cable (D-Sub - D-Sub), USB cable, setup manual, CD-ROM (PDF user's manual, Touch panel driver), clamper, screws for mount option (Freemount Only)
Warranty Two Years
