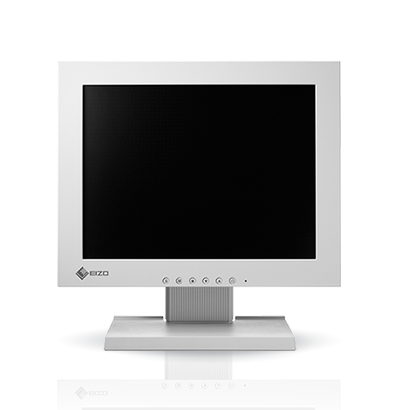

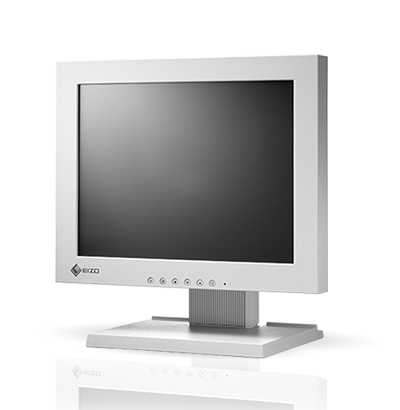

Duravision 1201T
12.1" Industrial Monitor
12.1" Durable, High-Brightness Touch Panel Monitor with 800 × 600 Resolution Panel for Industrial Workstation Terminals

  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories

Durable Build

The monitor is capable of withstanding temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes and the perimeter of the control buttons are sealed, preventing dust and foreign objects from getting inside.

High-Brightness Display

The maximum brightness of 350 cd/m2 offers high visibility even in bright ambient environments.

LED Backlight

The monitors are equipped with energy-saving LED backlights that last longer and consume less power compared with conventional CCFL backlights. They are also mercury-free for minimal impact on the environment.

Flexible Positioning

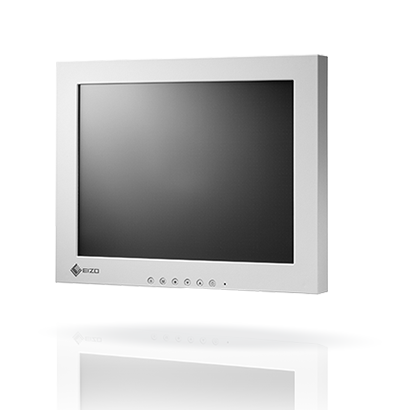

The monitor can be installed facing up or down in positions from 0 - 90° for flexible placement. In addition, images can be viewed rotated at 180° using a function accessed via the monitor’s front buttons for increased viewing flexibility

Digital and Analog Inputs

The monitor is equipped with a digital DVI-D 24 pin and analog D-Sub mini 15 pin for connecting to a PC.

connectors

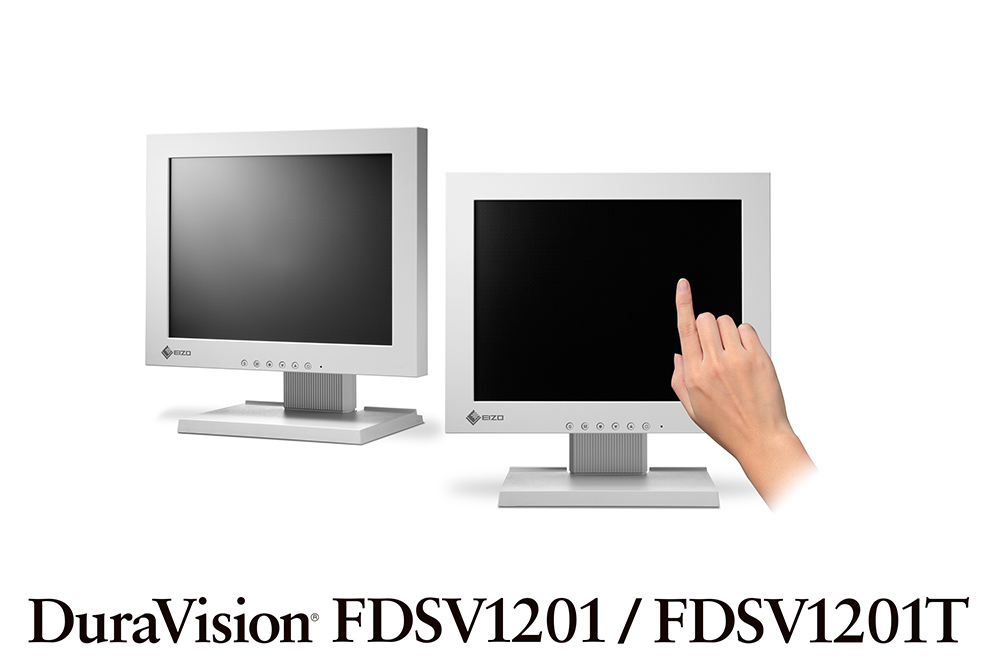

Touch Panel

The monitor is equipped with an analog resistive touch panel that has a minimum touch life of 10 million touches. It accepts touch input from both bare and gloved hands as well as styluses. It is also more resistant against dust and water compared to other touch technologies for high durability. It comes equipped with both a USB upstream and RS-232C port for touch communication.

2-Year Manufacturer’s Warranty

The monitor is backed by a 2-year manufacturer’s warranty for long-term reliability.

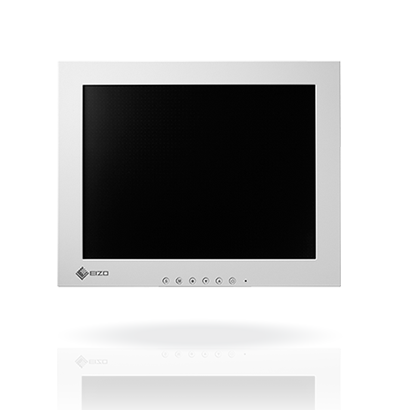

Model Variations With Stand, Without Stand
Cabinet Color Gray
Panel
Type TN
Backlight LED
Size 12.1" / 31 cm (307 mm diagonal)
Native Resolution 800 x 600 (4:3 aspect ratio)
Viewable Image Size (H x V) 246.0 x 184.5 mm
Pixel Pitch 0.3075 x 0.3075 mm
Display Colors 16.2 million
Viewing Angles (H / V, typical) 160°, 140°
Brightness (typical) 360 cd/m2
Contrast Ratio (typical) 700:1
Response Time (typical) 10 ms (Black-white-black)
Touch Panel
Type Analog resistive
Communication Protocol USB, RS-232C
Touch Life 10 million touches (minimum)
Compatible OS Windows 7(64bit, 32 bit) / Vista(32-bit) / XP(32-bit)
Video Signals
Input Terminals DVI-D 24 pin x 1 (with HDCP), D-Sub mini 15 pin x 1
Digital Scanning Frequency (H / V) 31 - 38 kHz, 59 - 61 kHz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 24 - 49 kHz, 55 - 76 kHz
Sync Formats Separate
USB
Function 1 port for touch panel control
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 12 W
Typical Power Consumption 4 W
Power Save Mode 0.5 W
Standby Mode 0.5 W
Power Management DVI DMPM, VESA DPM
Features & Functions
Preset Modes User1, User2, sRGB
Others Color Adjustment (Brightness, Temperature, Gamma, Gain, Reset, Color Mode), Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Signal Switching, Eco Timer, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.),Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 299 x 302.5 x 175 mm
Dimensions (Without Stand, W x H x D) 299 x 239 x 55.5 mm
Net Weight 3.8 kg / 8.3 lbs
Net Weight (Without Stand) 2.2 kg / 4.8 lbs
Tilt 30° Up, 0° Down
Swivel 35° Right, 35° Left
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 50 °C
Operating Humidity (R.H., non condensing) 20 - 90 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, cTUVus, c-Tick, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, C-tick, RoHS, WEEE, China RoHS
Supplied Accessories Signal cable (D-Sub - D-Sub), USB cable, CD-ROM, setup manual
Warranty Two Years
Dimension Drawing PDF

Brochures

DuraVision FDVS1201, FDVS1201T
1.83 MB

Download



Manuals

Languages



Document Language Size Download
FDSV1201 / FDSV1201T User's manual English 1.77 MB Download
FDSV1201 / FDSV1201T Setup manual English
Chinese-Simplified
French
German
4.77 MB Download
FDSV1201 / FDSV1201T User's manual Chinese-Simplified 1.61 MB Download
FDSV1201 / FDSV1201T User's manual French 1.79 MB Download
FDSV1201 / FDSV1201T User's manual German 1.77 MB Download
