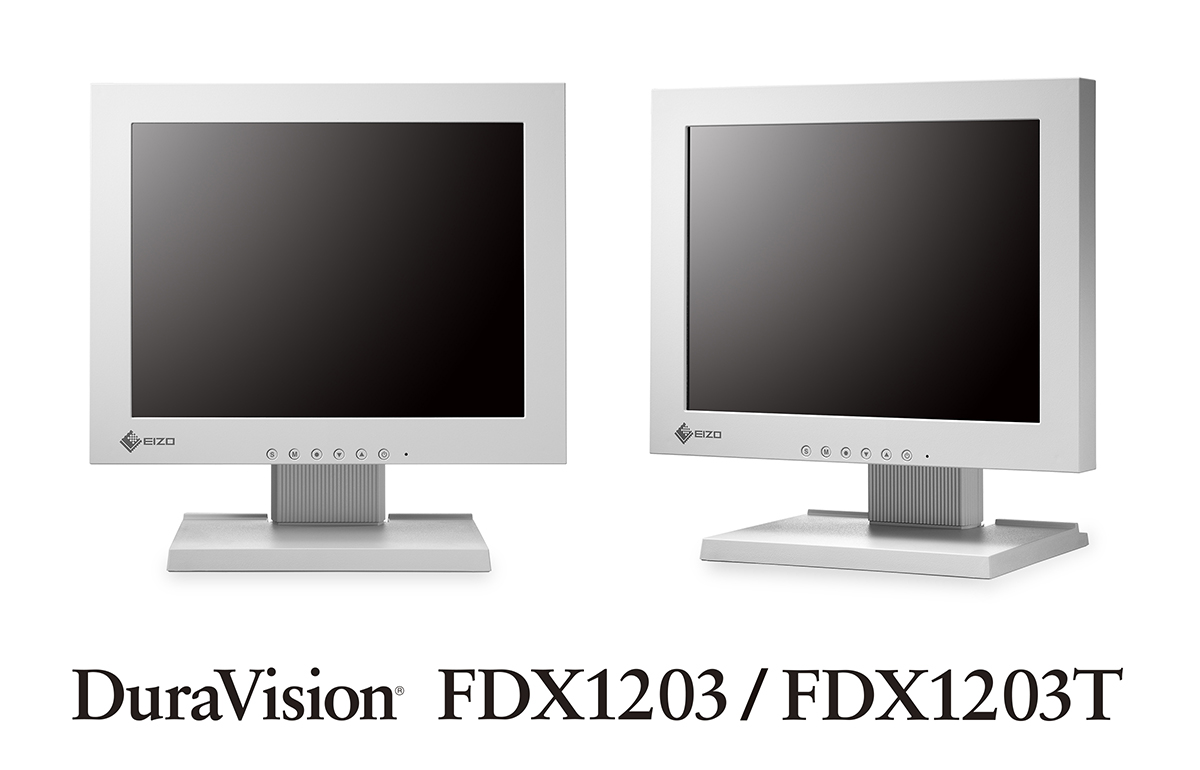

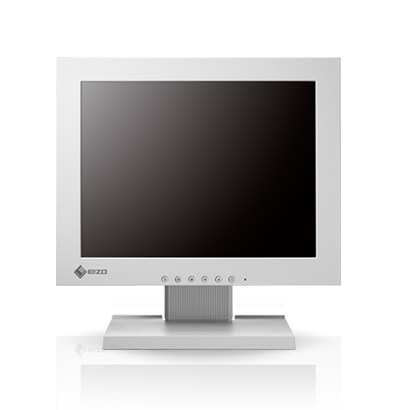

DuraVision FDX1203
12.1" Industrial Monitor
Highly Durable 12.1" Industrial Monitor with High Brightness and Multiple Mounting Options
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents

Flexible Installation

To meet the requirements of different industrial installations, the monitor is available in four configurations – desktop, VESA mount, panel mount, and chassis.


High Brightness for Visibility

The maximum brightness of 1000 cd/m2 ensures excellent screen visibility in bright ambient environments. The brightness is adjustable to as low as 0.5 cd/m2, making it easy to view in low ambient lighting conditions.

Durable Build

The monitor can withstand temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes, making it impervious to liquids and dust.


Flexible Positioning

The monitor is built to operate in both standard horizontal positions and non-standard positions such as attached to a mounting device or tilted at an extreme angle. In addition, images can be viewed rotated at 180° using a function accessed via the monitor’s front buttons for viewing flexibility.



Model Variations With Stand, Without Stand
Cabinet Color Gray
Panel
Type TN
Size 12.1" / 31 cm (307 mm diagonal)
Native Resolution 1024 x 768 (4:3 aspect ratio)
Viewable Image Size (H x V) 245.7 x 184.3 mm
Pixel Pitch 0.240 x 0.240 mm
Display Colors 16.7 million
Viewing Angles (H / V, typical) 160°, 140°
Brightness (typical) 1000 cd/m2
Contrast Ratio (typical) 600:1
Response Time (typical) 25 ms (Black-white-black)
Touch Panel
Compatible OS Windows 7(64bit, 32 bit) / Vista(32-bit) / XP(32-bit)
Video Signals
Input Terminals DVI-D 24 pin x 1 (with HDCP), D-Sub mini 15 pin x 1
Digital Scanning Frequency (H / V) 31 - 49 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 24 - 61 kHz, 55 - 76 kHz
Sync Formats Separate
Power
Power Requirements Monitor: DC 12 V
AC Adapter: AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption DC: 15 W
AC: 16 W
Standby Mode DC: Less than 0.5 W
AC: Less than 1.0 W
Power Management Power Save (VESA DPM and DVI DMPM), ECO Timer
Features & Functions
Preset Modes Color Mode (User1, User2, sRGB)
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Color Adjustment (Brightness, Temperature, Gain, Saturartion, Hue, Reset, Color Mode), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), Reverse, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 299 x 302.5 x 175 mm
Dimensions (Without Stand, W x H x D) 299 x 239 x 55.5 mm
Net Weight 3.7 kg / 8.1 lbs
Net Weight (Without Stand) 2.0 kg / 4.4 lbs
Height Adjustment Range -
Tilt 30° Up, 0° Down
Swivel 35° Right, 35° Left
Pivot -
Hole Spacing (VESA Standard) 100×100 mm / 75×75 mm
Environmental Requirements
Operating Temperature Monitor: 0 - 50 °C
AC Adapter: 0 - 40 °C
Operating Humidity (R.H., non condensing) Monitor: 20 - 90 %
AC Adpter: 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, CTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, CCC, RCM, RoHS, WEEE, China RoHS, J-Moss Green mark Guideline
Supplied Accessories AC adaptor, Signal cable (D-Sub - D-Sub), setup manual, CD-ROM (PDF user's manual), screws for mount option (Freemount Only)
Warranty Two Years
Dimension Drawing PDF

Brochures

DuraVision FDX1203 / FDX1203T
9.11 MB

Download



Manuals

Languages



Document Language Size Download
FDX1003, FDX1003T, FDX1203, FDX1203T User's manual English 1.09 MB Download
FDX1003 / FDX1003T / FDX1203 / FDX1203T Setup manual English
Chinese-Simplified
French
German
Japanese
5.8 MB Download
FDX1003-C/-P, FDX1003T-C/-P, FDX1203-C/-P, FDX1203T-C/-P Setup manual English
Chinese-Simplified
French
German
Japanese
5.96 MB Download
FDX1003, FDX1003T, FDX1203, FDX1203T User's manual Chinese-Simplified 1.2 MB Download
FDX1003, FDX1003T, FDX1203, FDX1203T User's manual French 1.13 MB Download
FDX1003, FDX1003T, FDX1203, FDX1203T User's manual German 1.12 MB Download
