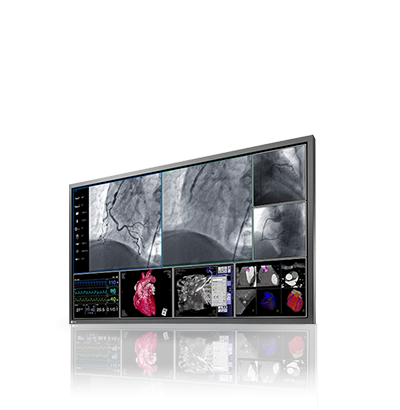

RadiForce LS580W
146cm (57.5") COLOR LCD MONITOR

A large 58-inch monitor ideal for operating rooms where multiple medical images need to be displayed simultaneously. The monitor can display 8 megapixels of high-resolution data in the level of detail essential for the OR.


  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • QC Software & Tools Accessories

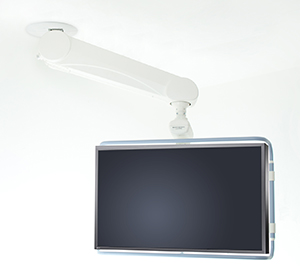

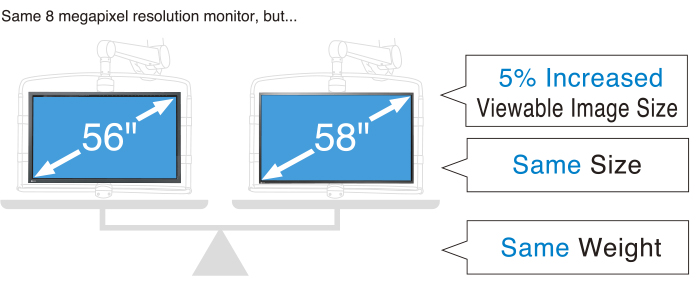

Streamline Your Installation

The thinner bezels allow for a larger screen size compared with the monitor's predecessor, the RadiForce LS560W, while keeping the size and weight of the monitor consistent. This allows convenient installation using the same ceiling suspensions as the previous model.

Streamline Your Installation

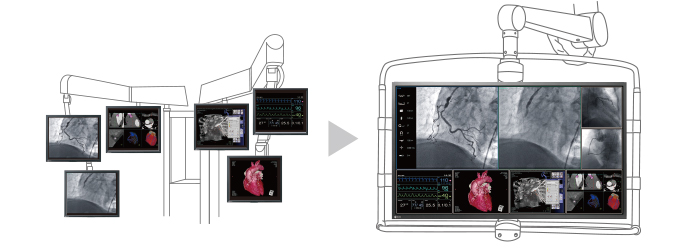

See Everything in a Glance

Compared with multi-monitor environments, the RadiForce LS580W exhibits no regional color differences or obtrusive bezels between images on the screen, allowing users to view important information consistently and conveniently on a single screen.

See Everything in a Glance

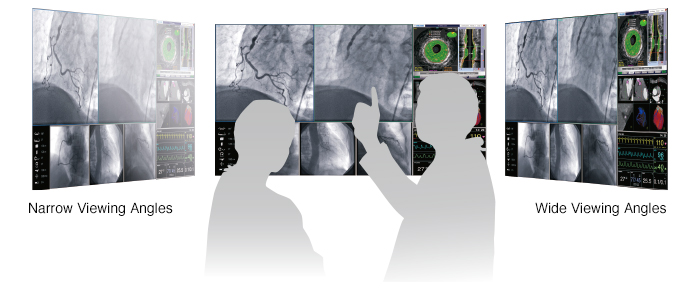

Comfortably View from Any Angle

Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.

Comfortably View from Any Angle

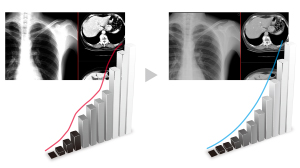

Diagnostic Precision

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Diagnostic Precision

Maintain the Precision

Monitor calibration can be carried out to maintain DICOM Part 14 compliance for rendering consistency over time.

Maintain the Precision

Keep Your Monitor Lit Longer

The monitor is equipped with two independent LED backlights that offer a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlights are mercury-free, they will also reduce any potential impact on the environment when they are disposed of.

Keep Your Monitor Lit Longer

View Accurate Images in Moments

EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

View Accurate Images in Moments

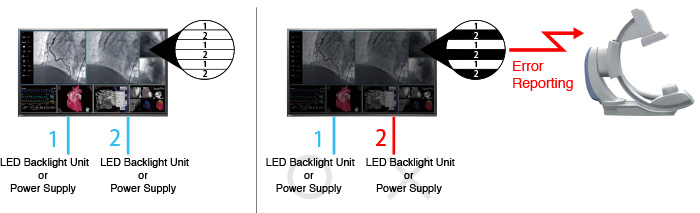

Ensure Continued Operation

Redundant power supplies and backlights as well as two DVI inputs give the monitor a high degree of operational reliability for creating a fail-safe environment. A monitoring function can be configured to notify the X-ray system in the event operating conditions become critical or a component fails.

Ensure Continued Operation

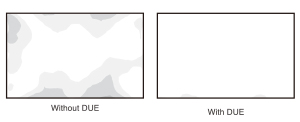

Attain Steady Images Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.

Attain Steady Images Across the Screen

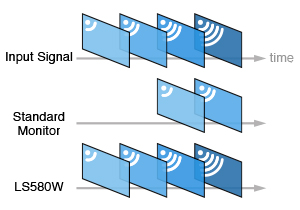

Work Safely

With images displayed on the screen in real time, time critical aspects of image distribution are addressed to ensure safety during procedures such as catheter localization.

Work Safely



Convenient Installation

The monitor supports VESA mounting for conveniently installing in operating rooms.

Convenient Installation

Rest Assured with Medical Qualifications

The monitor meets the strictest medical, safety, and EMC emission standards.

Rest Assured with Medical Qualifications





Cabinet Color Black
Panel
Type Color TFT LCD Panel (VA)
Backlight LED
Size 146 cm / 57.5" (1,460 mm diagonal)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 1270.0 x 721.0 mm
Pixel Pitch 0.331 x 0.334 mm
Display Colors 8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 700 cd/m2
Recommended Brightness for Calibration 350 cd/m2
Contrast Ratio (typical) 4000:1
Response Time (typical) 9.5 ms (Midtone)
Video Signals
Input Terminals DVI-D (dual link) x 2
Digital Scanning Frequency (H / V) 131.3 kHz / 59.7 - 60.3 Hz
Power
Power Requirements AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption 400 W
Power Save Mode Less than 38 W
Power Management DVI DMPM
Sensor Backlight Sensor
Physical Specifications
Net Weight -
Net Weight (Without Stand) 47 kg
Hole Spacing (VESA Standard) 400 x 400 mm, M8, depth 16 - 20 mm
Environmental Requirements
Degree of Protection IP20
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, GB4943.1 (non-tropical, altitude<2000 m), UL60601-1, FCC-B, RoHS, China RoHS, WEEE, CCC
Supplied Accessories AC power cord, dual link signal cable (DVI-D - DVI-D) x 2, Utility Disk (PDF Instructions for Use)
