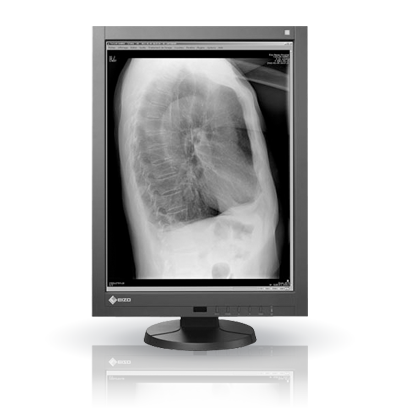

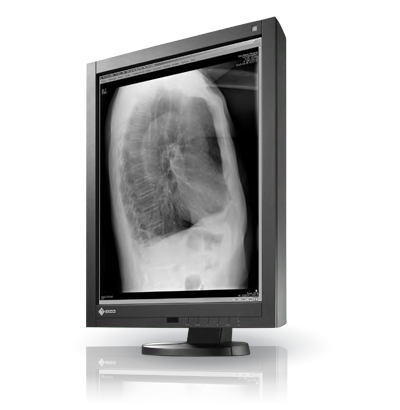

RadiForce GX240
2MP 54cm (21.3") MONOCHROME LCD MONITOR
2 megapixel high-resolution diagnostic monochrome monitor ideal for a wide variety of tasks from viewing CR, DR, MRI and CT images to use as a PACS/HIS/RIS terminal. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Graphics Boards
  • QC Software & Tools Accessories

Environmentally-Friendly LED Backlight

Longer Service Life with LED BacklightBy utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.

Consistency with DICOM Part 14 Calibration

With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.

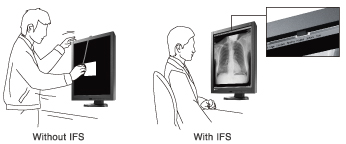

Easy Calibration with Integrated Front Sensor

An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.


Brightness Uniformity for a Steadier Image Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.

Quick Brightness Stabilization for Instant Viewing

At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.

Brightness Stability Within Usage Time Guaranteed

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.

Displaying with Separate Brightness Levels

For monochrome monitors, Hybrid Gamma function automatically distinguishes the medical images from the non-medical areas such as the tool palettes and displays each one at its optimum brightness.  Decreasing the tool palette area's brightness leads to less eye fatigue.

Accuracy in distinction may depend on how images are aligned.

Viewer software compatibility verification is required.

Diagnostic Precision with DICOM Part 14 Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.

Presence Sensor for Power Savings

The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save  mode when it detects the user is away from the monitor, and then resume  normal operation when the user returns.

10-Bit Simultaneous Grayscale Display

10-bit (1,024 tones) simultaneous grayscale display extends grayscale  fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.

10-bit graphics board and 10-bit viewer software needed for 10-bit display.

Mode Selection for Optimum Viewing

Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.

Wide Viewing Angles for Multiple People Use

Wide Viewing angles with minimal color shift when viewed from the side.

Versatile Positioning for Improved Operability

EIZO's highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.

Customer Assurance with Medical Standards

Meets the strictest medical, safety, and EMC emission standards.

Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year full warranty.



Model Variations GX240-CL: Clear Base
GX240-CL-P: Pairing
Cabinet Color Black
Panel
Type Monochrome TFT LCD Panel (IPS)
Backlight LED
Size 54 cm / 21.3" (540 mm diagonal)
Native Resolution 1200 x 1600 (3:4 aspect ratio)
Viewable Image Size (H x V) 324.0 x 432.0 mm
Pixel Pitch 0.270 x 0.270 mm
Grayscale Tones 10-bit (DisplayPort) : 1,024 from a palette of 16,369 tones
8-bit: 256 from a palette of 16,369 tones
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 1,200 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 1400:1
Response Time (typical) 40 ms (On/Off)
Video Signals
Input Terminals DVI-D x 1, DisplayPort x 1
Digital Scanning Frequency (H / V) 31 - 100 kHz / 59 - 61 Hz
Frame synchronous mode: 59 - 61 Hz
USB
Function 1 upstream, 2 downstream
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Maximum Power Consumption 76 W
Typical Power Consumption 29 W
Power Save Mode Less than 1.6 W
Power Management DVI DMPM, DisplayPort 1.1a
Sensor Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes CAL Switch
OSD Languages English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 10.2 kg
Net Weight (Without Stand) 7.5 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R
FDA 510(k) Clearance Yes
(for General Radiography)
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)
Warranty Five Years
Dimension Drawing GIF

Brochures

NEW
RadiForce general
9.01 MB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.

Languages



Document Language Size Download
RadiForce GX240 / GX340 Instructions for Use_UsersManual (English) English 2.05 MB Download
GX340 / GX240 / RX340 / RX240 / Instructions for Use_SetupManual English
Chinese-Simplified
French
German
4.2 MB Download
ScreenSlicer Ver.1.1.5 Software manual (English) English 1.88 MB Download
RadiForce GX240 / GX340 Instructions for Use_UsersManual (Chinese-Simplified) Chinese-Simplified 1.92 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Chinese-Traditional) Chinese-Traditional 1.53 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Czech) Czech 1.36 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Danish) Danish 1.36 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Dutch) Dutch 1.35 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Finnish) Finnish 1.35 MB Download
RadiForce GX240 / GX340 Instructions for Use_UsersManual (French) French 2.13 MB Download
RadiForce GX240 / GX340 Instructions for Use_UsersManual (German) German 2.1 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Italiano) Italian 1.35 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Korean) Korean 1.46 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Norwegian) Norwegian 1.36 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Polish) Polish 1.36 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Portuguese) Portuguese 1.36 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Russian) Russian 1.37 MB Download
RadiForce GX240 / GX340 Instructions for Use_UsersManual (Russian) Russian 2.15 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Espanol) Spanish 1.36 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Svenska) Swedish 1.35 MB Download
RadiForce RX240 / RX340 / GX240 / GX340 Setup manual (Turkish) Turkish 1.35 MB Download

Technical Information

November 14, 2012 The Advantages of Medical LCD Monitors with LED Backlights [PDF]

This document explains the three advantages of medical image display monitors that utilize an LED backlight.
