TDL3600 / TDL2300
DVI Transmission Link
Digital graphics interconnection enables data transmission of high-quality video data of up to 36 meters with no quality loss. Transmitting the data over an Ethernet cable allows robust handling and simple setup, and the cables can be easily run through small conduits and holes.
  • Contact EIZO
2 items


  • Features
  • Specifications
  • Documents
  • Lossless long-distance transmission of images.
  • No additional driver software needed.
  • Easy installation.
  • Eizo qualified high quality Ethernet cable.
  • Plug and Play solution.
  • For distances up to 36 meters.

Lossless long-distance transmission of images.



Model Variations TDL3600-QL: quad link, 36m
TDL3600-DL: dual link, 36m
TDL3600-SL: single link, 36m
TDL2300-SL: single link, 23m
Cabinet Color Silver
Interface Specifications
Input Terminals TDL3600-QL: DVI-D (dual link) x 2
TDL3600-DL: DVI-D (dual link) x 1
TDL3600-SL / TDL2300-SL: DVI-D x 1
Input Performance Transmitter module at PC side (DVI-D - RJ45), Ethernet cable (RJ45 - RJ45), Receiver module at monitor side (RJ45 - DVI-D)
Output Terminals TDL3600-QL: DVI-D (dual link) x 2
TDL3600-DL: DVI-D (dual link) x 1
TDL3600-SL / TDL2300-SL: DVI-D x 1
Output Performance TDL3600-QL: 3840 x 2160
TDL3600-DL: 2560 x 1600
TDL3600-SL / TDL2300-SL: 1920 x 1200
Power
Power Requirements PC side: through DVI interface
Monitor side: 5 V support from monitor
Optional: 5 V external power supply
Certifications & Standards (Please contact the EIZO subsidiary or distributor in your country for the latest information.) CE, IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, EN60601-1-2 Class B, FCC-A, RoHS, China RoHS, WEEE
Supplied Accessories TDL3600-QL: Transmitter x 2, Receiver x 2, mounting set for LX600W/LS580W, mounting set for LMM56800/LMM0802, 36 m cable x 4,
TDL3600-DL: Transmitter, Receiver, 36 m cable x 2, AC adapter,
TDL3600-SL: Transmitter, Receiver, 36 m cable, AC adapter,
TDL2300-SL: Transmitter, Receiver, 23 m cable, AC adapter,
Utility Disk (PDF Instructions for Use)

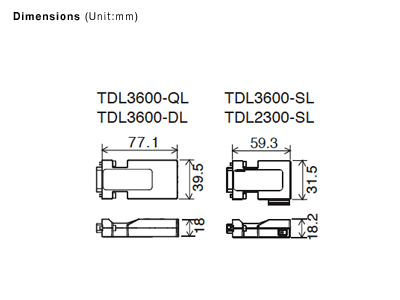

Dimension Drawing JPG
