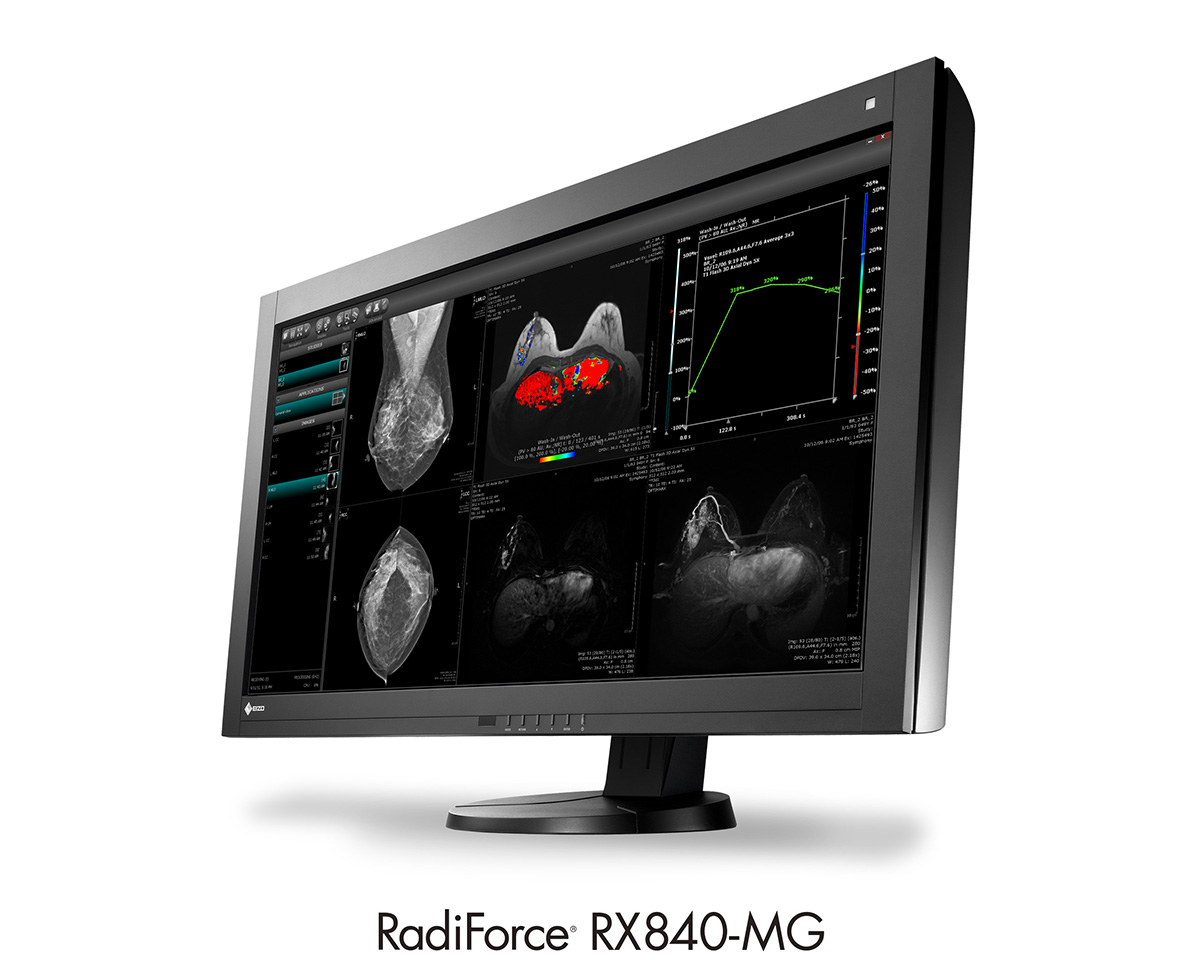

RadiForce RX840-MG
8MP 92cm (36.4") COLOR LCD MONITOR
Multi-modality monitor for simultaneously viewing multiple medical images such as digital mammography, magnetic resonance imaging (MRI), and ultrasound images all on one unobstructed screen. Industry first multi-modality color widescreen monitor to receive FDA 510(k) clearance for mammography and general radiography.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Graphics Boards
  • QC Software & Tools Accessories

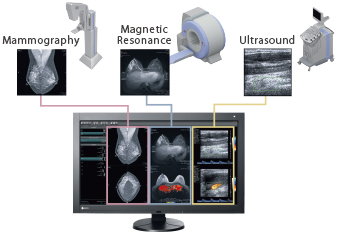

FDA 510(k) Clearance Multi-Modality Image Display

Industry  first multi-modality color monitor to receive FDA 510(k) clearance for mammography and general radiography. Therefore, the monitor is not only capable of displaying MRI, CT, and ultrasound images, but also digital mammography images where high performance is required. Multi-modality color monitors that display multiple medical images all on one unobstructed screen simultaneously will streamline the radiology workflow and enhance efficiency.

FDA 510(k) Clearance Multi-Modality Image Display



8 Megapixel Super-High-Resolution Display

Within its 36.4-inch screen size, the monitor is capable of displaying 8 megapixels (4096 x 2160 native resolution) of information volume without the obtrusive bezels. The monitor gives plenty of room to display all necessary imaging applications or windows at once.


Diagnostic Precision with DICOM Part 14 Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.

Consistency with DICOM Part 14 Calibration

With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.

Easy Calibration with Integrated Front Sensor

An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.

Brightness Uniformity for a Steadier Image Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.

Quick Brightness Stabilization for Instant Viewing

At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.

Versatile Positioning for Improved Operability

EIZO's highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.

Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.

Environmentally-Friendly LED Backlight

en_feature0113.gifBy utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.

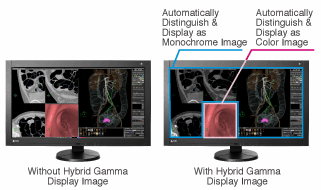

Color and Monochrome Images with Separate Gamma Curves

EIZO's unique Hybrid Gamma function distinguishes whether the images being displayed are monochrome or color and displays each image in optimum brightness and grayscale tones. This expands the usability of PACS applications constantly attaining sufficiency with mix of color and monochrome medical images.

Accuracy in distinguishing between grayscale and color images may depend on how they are aligned. Viewer software compatibility verification is required.


Dual-Screen Display on One Monitor

With Picture-by-Picture (PbyP) or Picture-in-Picture (PinP) functions, two screens from separate input signals can be displayed simultaneously on one monitor. A bezel-less widescreen enables simplified and flexible operation.

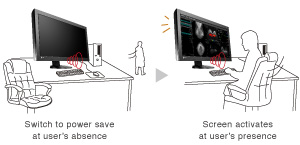

Presence Sensor for Power Savings

The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.

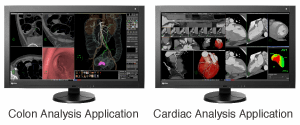

10-bit Color

The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.

10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.

Mode Selection for Optimum Viewing

Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.

Wide Viewing Angles for Multiple People Use

Wide Viewing angles with minimal color shift when viewed from the side.

Brightness Stability Within Usage Time Guaranteed

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.

Customer Assurance with Medical Standards

Meets the strictest medical, safety, and EMC emission standards.



Cabinet Color Black
Panel
Type Color TFT LCD Panel (IPS)
Backlight LED
Size 92 cm / 36.4" (923 mm diagonal)
Native Resolution 4096 x 2160 (17:9 aspect ratio)
Viewable Image Size (H x V) 817.1 x 430.9 mm
Pixel Pitch 0.1995 x 0.1995 mm
Display Colors 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors
8-bit colors: 16.77 million from a palette of 68 billion colors
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 700 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 25 ms (On/Off)
Video Signals
Input Terminals DVI-D (dual link) x 2, DisplayPort x 2 (two inputs are required)
Digital Scanning Frequency (H / V) 31 - 140 kHz / 29.5 - 30.5 Hz (2048 x 2160, 1920 x 2160), 59 - 61 Hz
Frame synchronous mode: 29.5 - 30.5 Hz, 59 - 61 Hz
USB
Function 1 upstream, 2 downstream
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Maximum Power Consumption 350 W
Typical Power Consumption 184 W
Power Save Mode Less than 6 W
Power Management DVI DMPM, DisplayPort 1.1a
Sensor Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes CAL Switch
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 30.9 kg (AC adapter included)
Net Weight (Without Stand) 23.2 kg
Hole Spacing (VESA Standard) 200 x 200 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B,
Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R
FDA 510(k) Clearance Yes (for Mammography and General Radiography)
Supplied Accessories AC power cord, AC adapter, dual link signal cable (DVI-D - DVI-D) x 2, signal cable (DisplayPort - DisplayPort) x 2, USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual), 4 screws for mount option
Warranty Five Years
