76cm (29.8") COLOR LCD MONITOR
The 29.8-inch 4 megapixel monitor in widescreen format is designed for use in operating rooms (interventional radiology, cardiology, or surgery). It is a value for money solution for smaller examination and operating rooms where individual monitors increasingly are being replaced by large-format screens capable of displaying multiple image sources simultaneously.
  • Contact EIZO
  • Features
  • Specifications
  • Documents
  • QC Software & Tools Accessories

Everything in a Single Glance

Large widescreen monitors with high resolution can be used instead of single 1 Megapixel monitors in ceiling suspensions. Compared with multi-monitor scenarios, these large screen monitors have no regional color differences or obtrusive bezels, thus reducing eye fatigue and the potential for distraction.

Everything in a Single Glance

Fail-Safe Function

Special fail-safe mode through DVI input for emergency information from the system for a certain timing. As soon as the timing is active, the information will be shown immediately on the upper left screen side.

Fail-Safe Function



View Accurate Images in Moments

EIZO’s fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Wide Viewing Angles for Multiple People Use

Thanks to the wide viewing angles, images can be viewed simultaneously by several people with the highest quality reproduction and minimal color shift.





Flexible Operation Modes

Up to three input signals can be displayed simultaneously. The images can be arranged side by side or as Picture in Picture (PiP), while image rotation is managed by the monitor.

Communication Interface

The communication interface is routed via the DVI or USB connection. The operating states of the monitor can be read and switched via the interface, e.g. in Power Safe Mode. In particular, the monitor functionality can be queried using the interface.



Diagnostic Precision

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Diagnostic Precision

Maintain the Precision

Monitor calibration can be carried out to maintain DICOM Part 14 compliance for rendering consistency over time.

Maintain the Precision





Attain Steady Images Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.

Attain Steady Images Across the Screen

Environmentally-Friendly LED Backlight

By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.

Environmentally-Friendly LED Backlight



Controlled Cooling

The monitor features intelligent cooling concept by measuring and controlling the inside temperature. A mode without fan cooling is selectable so the controlled laminar airflow will be undisturbed within the room as far as possible.


LCD Panel Protector for Easy Cleaning

A monitor model with panel protector, pre-attached in the factory, is available to protect against dust and scratches. Clean lines and smooth surfaces also allow easy cleaning and disinfecting.



Arm Mountable VESA Compliance

VESA compliance to be attached to existing mounting accessories.



Customer Assurance with Medical Standards

EIZO monitors meet the strictest medical, safety, and EMC emission standards.

Customer Assurance with Medical Standards














Model Variations LX300W: Without Stand, without Panel Protector
LX300W-S: With Stand, without Panel Protector
LX300W-P: Without Stand, with Panel Protector
Cabinet Color Black
Panel
Type Color TFT LCD Panel (IPS)
Backlight LED
Size 76 cm / 29.8" (756 mm diagonal)
Native Resolution 2560 x 1600 (16:10 aspect ratio)
Viewable Image Size (H x V) 641.0 x 401.0 mm
Pixel Pitch 0.2505 x 0.2505 mm
Display Colors 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors
8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical) 170° / 170°
Brightness (typical) 750 cd/m2
Recommended Brightness for Calibration 400 cd/m2
Contrast Ratio (typical) 1100:1
Response Time (typical) 20 ms (On/Off)
Video Signals
Input Terminals DVI (dual link / single link) x 1, DVI (single link) x 1, HDMI (DVI-signal) x 1, DisplayPort x 1
Digital Scanning Frequency (H / V) 31 - 100 kHz / 29.5 - 61 Hz
Frame synchronous mode: 59.5 - 60.5 Hz
USB
Function 1 upstream, 2 downstream
Standard USB 2.0
Power
Power Requirements AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption 150 W
Power Save Mode Less than 20 W
Power Management DVI DMPM, DisplayPort 1.1a
Sensor Backlight Sensor
Features & Functions
Digital Uniformity Equalizer Yes
OSD Languages English, German
Physical Specifications
Net Weight LX300W-S: 19.5 kg +/- 1 kg
Net Weight (Without Stand) LX300W: 15.5 kg +/- 1 kg
LX300W-P: 18.5 kg +/- 1 kg
Hole Spacing (VESA Standard) 200 x 100 mm and 100 x 100 mm, M4, depth 8 - 11 mm
Environmental Requirements
Degree of Protection IP20
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, GB4943.1 (non-tropical, altitude<2000 m), UL60601-1, FCC-B, C-tick, RoHS, China RoHS, WEEE, CCC
Supplied Accessories AC power cord (eu, us, jp, LX300W-S only), dual link signal cable (DVI-D - DVI-D, LX300W-S only), Utility Disk (PDF Instructions for Use)

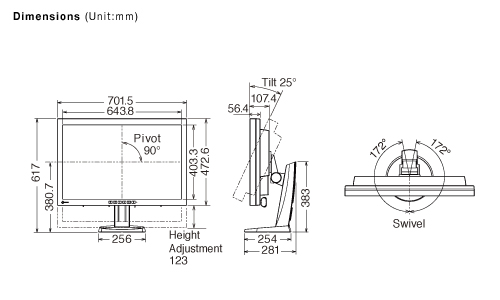

Dimension Drawing JPG

Brochures

RadiForce LX300W
197 KB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.

Languages



Document Language Size Download
LX300W Instruction for Use (as of 02/2014) English 1.47 MB Download
LX300W Instruction for Use (as of 02/2014) Chinese-Simplified 1.65 MB Download
LX300W Instruction for Use (ab 02/2014) German 1.19 MB Download
