RadiNET Pro
Network QC Management Software
RadiNET Pro enables unified QC management of multiple monitors used in Picture, Archive and Communications Systems (PACS), Hospital Information Systems (HIS) and Radiology Information Management Systems (RIS) in a hospital. As well as reducing the workload of monitor administrators and maintenance service managers, this dramatically cuts monitor quality support and maintenance costs.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents

RadiNET Pro image1

RadiNET Pro image2



Centralized Management of up to 8,000 Monitors

RadiNET Pro enables centralized management of all the client PC monitors with RadiCS software installed via an intra-hospital network. Up to 8,000 monochrome or color monitors connected to 1,000 client PCs covering everything from QC history reference to setting changes.

Centralized Management of up to 8,000 Monitors

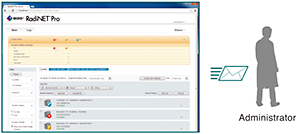

Instant Notification for Immediate Maintenance

When there is a change in the monitor's quality condition, it will show up on "Monitor Status" section. An alert message can also be sent automatically to the administrator's specified mail address to enable immediate maintenance.

Instant Notification for Immediate Maintenance

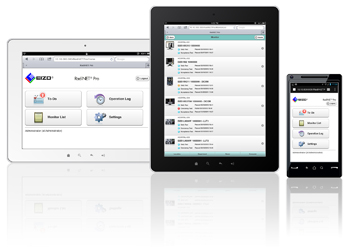

Mobile Control Made Easy

Monitor administrators can access the QC server anytime, from any location where their web-enabled mobile device has Internet connectivity. This helps administration personnel to work remotely saving both the time and expense of on-site visits and improves the speed of the QC work flow. The interface is designed to easily navigate and perform operations with the touch of a finger via a web browser.

Mobile Access To RadiNETPro

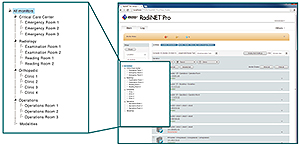

Easy-to-Use Web-Based Application

This simple web-based application offers easy access to desired information. The administrator may conduct monitor QC operations from anywhere in the hospital smoothly and promptly. The user interface incorporates a tree view which makes it easy to visually capture the structure of all controlling monitors. It also supports various resolutions which increase the flexibility of the layout.

Easy-to-Use Web-Based Application

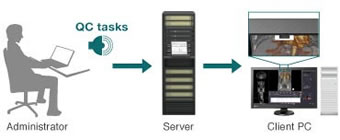

Save Time with Remote Calibration

QC tasks such as testing and calibration using the Integrated Front Sensor or swing sensor can be performed remotely. This dramatically reduces the time and effort of the users and administrators required for calibration of the monitors.

Save Time with Remote Calibration

Other Features:

  • One Time Remote Setting
  • Collective Report Generator
  • Forecasting of Monitor Replacement
  • CSV File Output
  • Remote Upgrade of RadiCS Software
  • Security Assurance
  • Compatible with Non-RadiForce Monitors
Manageable Number of PCs / Monitors 1,000 PCs / 8,000 Monitors Maximum
Administrator PC Browser Microsoft Windows Internet Explorer 11.0 / 10.0 / 9.0
Google Chrome 34.0
Administrator PC Resolution 1280 x 1024 Minimum
Server PC Operating Systems Windows Server 2012 R2
Windows Server 2008 R2 Standard Edition SP1
Windows Server 2008 Standard Edition SP2
Windows 7 SP1 64-bit
Server PC Database SQL Server 2012 Standard Edition SP1
SQL Server 2012 Express Edition SP1
SQL Server 2008 R2 Workgroup Edition SP1
SQL Server 2008 R2 Standard Edition SP1
SQL Server 2008 R2 Express Edition SP1
SQL Server 2008 Workgroup Edition SP2
SQL Server 2008 Standard Edition SP2
SQL Server 2008 Express Edition SP2
SQL Server 2005 Workgroup Edition SP3/SP4
SQL Server 2005 Standard Edition SP3/SP4
SQL Server 2005 Express Edition SP3/SP4
Server PC Hard Disk Drive 100 GB Minimum
Server PC Memory 4 GB Minimum
Languages English, German, Japanese, Chinese
