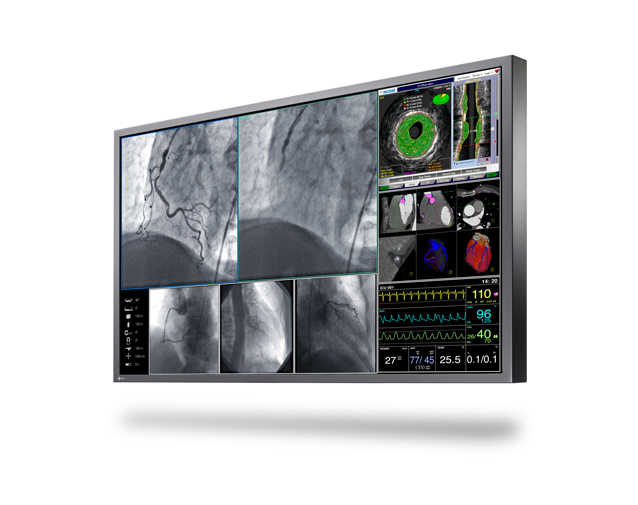

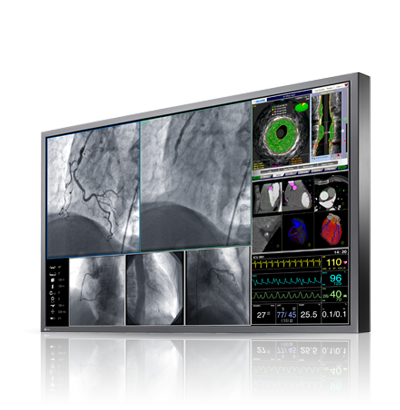

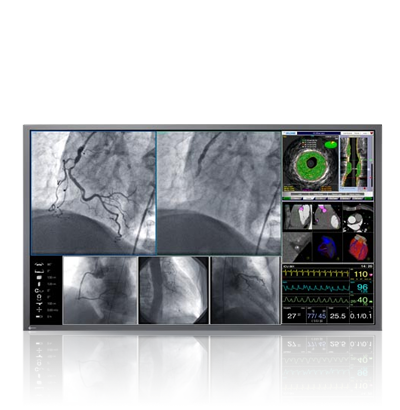

RadiForce LX600W
153cm (60.1") COLOR LCD MONITOR
The large 60-inch viewing area enables flexible display of different modality images on one screen without distracting frames between individual pictures. The monitor's redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • QC Software & Tools Accessories

Everything in a Single Glance

Large widescreen monitors with high resolution can be used instead of single 1 Megapixel monitors in ceiling suspensions. Compared with multi-monitor scenarios, these large screen monitors have no regional color differences or obtrusive bezels, thus reducing eye fatigue and the potential for distraction.

Everything in a Single Glance

Quick Brightness Stabilization for Instant Viewing

EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

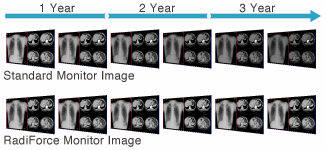

Consistency with DICOM Part 14 Calibration

RadiForce monitors are calibrated to comply with DICOM Part 14 to offer rendering consistency over time.

Consistency with DICOM Part 14 Calibration

Environmentally-Friendly LED Backlight

By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.

LCD Panel Protector for Easy Cleaning

The panel protector secures the screens from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.

Customer Assurance with Medical Standards

RadiForce monitors meet the strictest medical, safety, and EMC emission standards.

Brightness Uniformity for a Steadier Image Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.



Wide Viewing Angles for Multiple People Use

Thanks to the wide viewing angles, images can be viewed simultaneously by several people with the highest quality reproduction and minimal color shift.

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Work Safely with Minimal Picture Delay

With images displayed on the screen in real time, time critical aspects of image distribution are addressed to ensure e.g. safe catheter localization during insertion into an artery.

Operational Reliability Through Redundant Components

With its redundant components architecture (2 power supplies, 2 backlights, 2 transmission links), EIZO ensures a high degree of operational reliability for fail-safe environments. A monitoring function can be configured to notify the X-ray system if e.g. operating conditions become critical or a component fails.

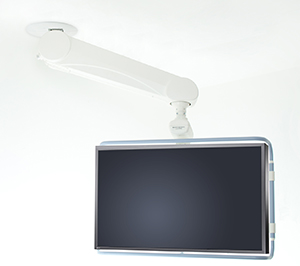

Arm Mountable VESA Compliance

VESA compliance to be attached to existing mounting accessories.

Arm Mountable VESA Compliance



Model Variations LX600W: Without Panel Protector
LX600WP: With Panel Protector
Cabinet Color Black
Panel
Type Color TFT LCD Panel (VA)
Backlight LED
Size 153 cm / 60.1" (1,526 mm diagonal)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 1330.0 x 748.0 mm
Pixel Pitch 0.3465 x 0.3465 mm
Display Colors 8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 520 cd/m2
Recommended Brightness for Calibration 300 cd/m2
Contrast Ratio (typical) 4000:1
Response Time (typical) 6 ms (Midtone)
Video Signals
Input Terminals DVI-D (dual link) x 2
Digital Scanning Frequency (H / V) 124 - 131.4 kHz / 59.7 - 60.3 Hz
Power
Power Requirements AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption 500 W
Power Save Mode Less than 41 W
Power Management DVI DMPM
Sensor Backlight Sensor x 2
Physical Specifications
Net Weight -
Net Weight (Without Stand) LX600W: 55 kg
LX600WP: 65 kg
Hole Spacing (VESA Standard) 400 x 400 mm, M8, depth 16 - 20 mm
Environmental Requirements
Degree of Protection IP20
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, GB4943.1 (non-tropical, altitude<2000 m), UL60601-1, FCC-A, C-tick, RoHS, China RoHS, WEEE, CCC
Supplied Accessories AC power cord, dual link signal cable (DVI-D - DVI-D) x 2, Utility Disk (PDF Instructions for Use)
