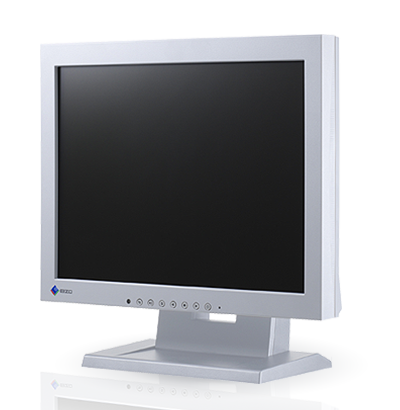

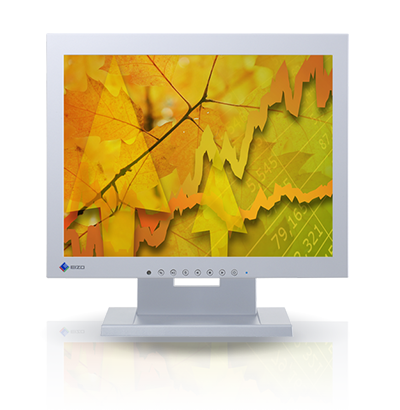

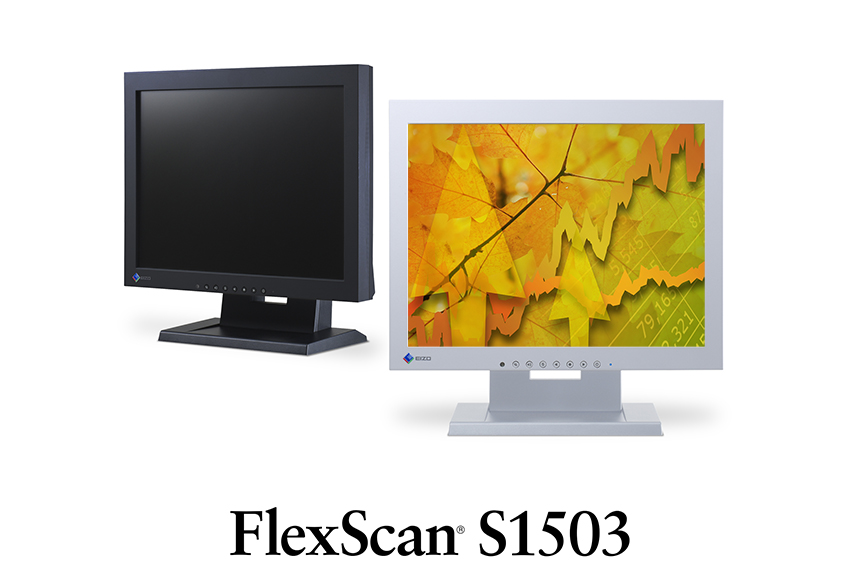

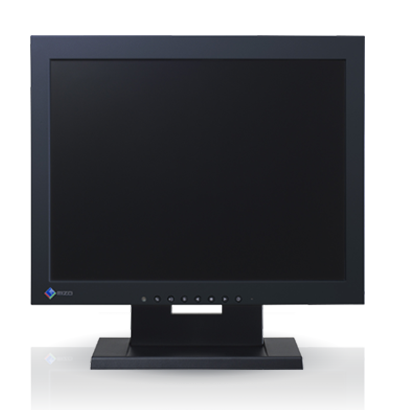

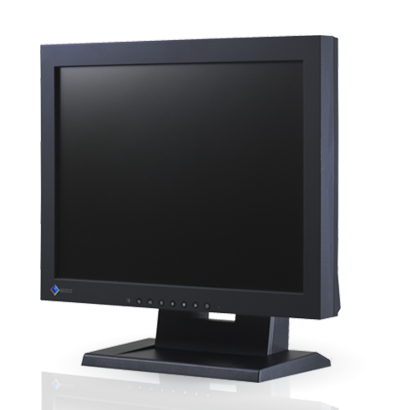

    FlexScan S1503
    15" (38 cm) LCD Monitor
    A brightness sensor, LED backlight, and built-in speakers, make this a practical choice for back office and administrative environments.
    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents

    LED Backlight

    With an energy-saving LED backlight, the FlexScan S1503 uses only 6 watts during typical operation. The LED backlight does not contain any mercury for minimal environmental impact when the monitor is eventually disposed of.

    Digital and Analog Inputs

    connectorsWith both DVI-D and D-Sub mini 15-pin inputs, you can use a computer that has either a digital or an analog graphics board (or both if connected to two computers), and quickly switch between the inputs via a front panel button.

    Optimized Brightness with Auto EcoView

    auto ecoview sensorThe Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.

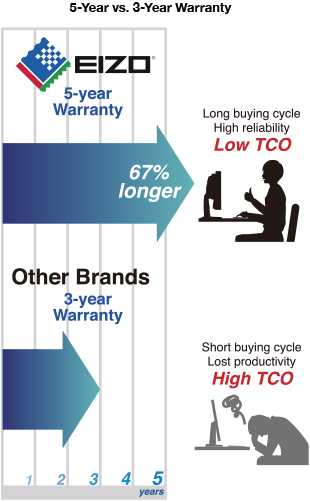

    Built to Last Five Years

    EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S1503 is higher than another 15-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.




    Preset Modes for Optimum Viewing

    With EIZO’s Fine Contrast function you can choose from several preset modes for the various applications you work with. Toggling between modes can be done manually in the OSD menu or automatically by assigning a mode to a particular application with the bundled ScreenManager Pro for LCD software.

    preset modes

    Prevents Eye Fatigue in Dimly-Lit Offices

    Fine Contrast includes an EyeCare mode that reduces the screen’s brightness to just 3 cd/m2. This ultra-low brightness helps prevent eye fatigue and increase productivity when working in an environment with very dim ambient lighting.

    Anti-Glare Treatment

    A non-glare screen reduces eye fatigue by dissipating reflective light that otherwise makes the screen difficult to view. Furthermore, the surface of the bezels is treated to prevent light reflection.

    Flicker Prevention

    A modulated light adjustment function prevents flicker at low brightness settings to reduce eye fatigue.

    Built-In Speakers

    0.5-watt speakers are tucked away at the back of the monitor and out of view so you can enjoy sound while bezel size is kept to a minimum. A headphone jack is also built into the monitor.






    Cabinet Color Gray, Black
    Panel
    Type TN
    Backlight LED
    Size 15" / 38 cm (380 mm diagonal)
    Native Resolution 1024 x 768 (4:3 aspect ratio)
    Viewable Image Size (H x V) 304.1 x 228.0 mm
    Pixel Pitch 0.297 x 0.297 mm
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angles (H / V, typical) 160°, 160°
    Brightness (typical) 400 cd/m2
    Contrast Ratio (typical) 600:1
    Response Time (typical) 8 ms (black-white-black)
    Video Signals
    Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 49 Hz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H / V) 24.8 - 60.5 kHz, 55 - 75.5 kHz
    Sync Formats Separate
    Audio
    Speakers 0.5 W + 0.5 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 16 W
    Typical Power Consumption 6 W
    Power Save Mode Less than 1 W
    Power Management Power Save (VESA DPM), Eco Timer
    Features & Functions
    Preset Modes EyeCare, Text, sRGB, Custom
    Auto EcoView / BrightRegulator Yes
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Others Screen Adjustment (Clock, Phase, Position, Range (Auto)), Smoothing (5 stages), Color Adjustment (Brightness, Contrast, Temperature, Gain, Reset), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Position, Adjustment Lock, Reset, DDC/CI Lock
    Physical Specifications
    Dimensions (Landscape, W x H x D) 346 x 349 x 157 mm
    Dimensions (Without Stand, W x H x D) 346 x 280 x 69 mm
    Net Weight 4.7 kg / 10.4 lbs
    Net Weight (Without Stand) 3.4 kg / 7.5 lbs
    Tilt 30° Up, 0° Down
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) TUV/Ergonomics (including ISO9241-307), TUV/GS, C-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, D-Sub mini 15 pin - D-Sub mini 15 pin), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
    Warranty Five Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
