Product Name

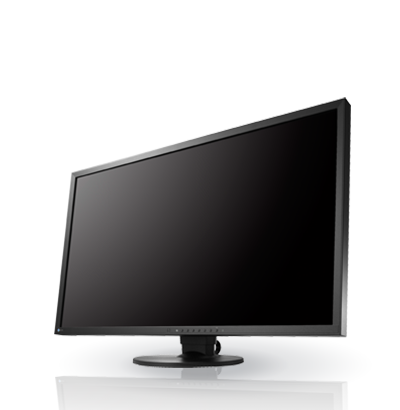

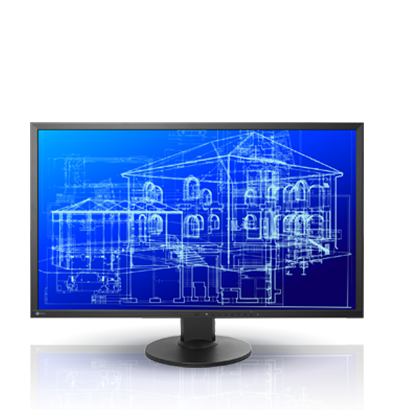

31.5" (80 cm) LCD Monitor
Eye pleasing, work achieving.
CAD, business, gaming, video – this 31.5-inch monitor does
it all. With its 4K UHD resolution and 60 Hz refresh rate, the
FlexScan EV3237 provides you with an exceptional experience
no matter the application.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories
  • Awards & Reviews



bnr_hidpi_4k_library.jpg bnr_eizo_4k_library.jpg

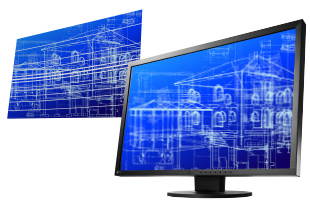

Smooth, Print-like Quality on Screen

The FlexScan EV3237 packs more than 8 million pixels with over 140 dpi (dots per inch) for amazing results. Documents and images look smoother than ever with a 4K UHD screen, offering you the finest visual experience.

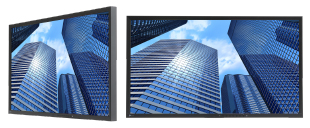

Vivid and Consistent Color with IPS Panel

The IPS panel has 178° viewing angles so it exhibits minimal change in contrast and hue when viewed from off center. This makes it ideal for viewing a variety of content from any angle and also allows more than one person to view the screen clearly.


Work Efficiently with a Large Screen

Increase your work efficiency by displaying more on screen at once without needing to change windows or scroll excessively. View 4K photos and videos in full screen to truly see the difference with the FlexScan EV3237’s 31.5-inch screen.


Ergonomics – Visual Comfort to Increase Your Productivity

Say Goodbye to Tired Eyes

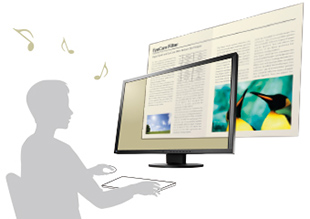

A brightness sensor called Auto EcoView detects the fluctuations in the ambient brightness throughout the day and automatically adjusts the screen so it is neither too bright nor too dark. In addition, Paper Mode simulates the look of paper by reducing blue light, a cause of eye fatigue, to prevent eyestrain when reading documents.


Advanced Settings for Auto EcoView (Auto Brightness Adjustment)

Flexible Stand Positioning


Adjust the screen to the most comfortable angle for individual use or easily reposition it to show a colleague or client. The versatile stand offers height, tilt, and swivel adjustability for optimal comfort in any setting.


Non-Glare Panel

A non-glare panel reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.


Flicker-Free for Reduced Eye Fatigue

The FlexScan EV3237 offers flicker-free viewing at all brightness levels. Now you can work without worrying about the eye fatigue caused by viewing a flickering screen for long periods.


TUV low blue light content / flecker free logo
Stefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

Preset Modes for Optimum Viewing

Five preset modes ensure you always get the right setting for whatever application you are using. With the bundled ScreenManager Pro for LCD software, you can assign any of the monitor’ s preset modes to a particular application. Whenever you activate that application, the monitor will automatically switch to the assigned mode.


Detailed Color Control

Hue, gain, saturation, and color temperature in 500 K increments from 4,000 – 10,000 K (and 9,300 K) are all user adjustable. An sRGB mode is also included for color matching with other applications and peripherals that also support this color space.




Convenient Multitasking with Picture by Picture / Picture in Picture

Picture by Picture

Picture by Picture (PbyP) is a feature that allows you to view data from multiple signal sources on a single screen simultaneously. Select from 5 different layouts easily accessible via a button on the front of the monitor. Picture by Picture can be used to run both Windows and Mac operating systems simultaneously or multiple applications in varying layouts and size to suit user preference.


Picture in Picture

Picture in Picture (PinP) allows you to display a small separate screen from second signal source within the monitor. This allows you to effectively multitask such as viewing a video conference while working in other applications. The screen’ s size and position can be adjusted to your preference.


A Feature Set Perfect for Business

Multiple Inputs

DisplayPort 1.21, Dual-Link DVI2 and HDMI2 digital inputs are equipped for compatibility with multiple devices. Picture by Picture and Picture in Picture are also supported when using a dual-monitor setup.

1DisplayPort: 3840 x 2160 (60Hz, 16:9 aspect ratio)
2Dual-Link DVI / HDMI: 3840 x 2160 (30Hz, 16:9 aspect ratio)


USB 3.0 Battery Charger

The monitor comes equipped with three USB ports, one of which can be used to charge your smartphone, tablet, or other devices. Selecting “Charging Only” from the OSD menu speeds up the charging process.

Smooth Color Gradations

The FlexScan EV3237 reproduces smooth images by taking an 8-bit signal (256 tones per RGB) and selecting the optimum color values from a 10-bit look-up table (1,021 tones). The optimized data is converted back to an 8-bit output signal for the smoothest gradations.

Adjustable to Just 1.0 % of Maximum Brightness

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the FlexScan EV3237 is adjustable to just 1.0 % of the maximum brightness, making it ideal for viewing in low ambient lighting conditions.

Sharp Motion Images

An overdrive circuit accelerates gray-to-gray response time to just 5 ms to minimize ghosting and blurring in moving images so they always look clean and sharp.

Speakers and Headphone Jack

Dual 1-watt speakers are installed without increasing bezel size. A headphone jack is also conveniently located on the side of the monitor.


Easily Adjustable Settings

All of the monitor’ s settings are adjustable using the EIZO Monitor Configurator software. You can even save your settings as an xml file and apply them to another monitor via USB.

Energy Savings

The FlexScan EV3237 offers a number of features for lowering power consumption. The Auto EcoView brightness sensor automatically lowers brightness according to ambient lighting and EcoView Optimizer 2 reduces backlight brightness and increases gain when viewing dark content. In addition, a presence sensor prompts the monitor to switch to power save mode when you are absent and then power on again when you return to save on energy while the monitor is not in use.

Compliance with International Labels

TCOEnergy star epeat gold logoElgonomicsicon_EEK-A.png



Model Variations With FlexStand, Without Stand

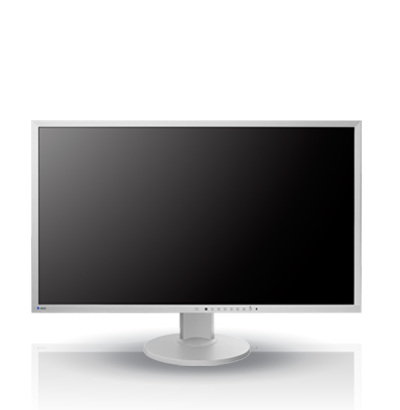

Cabinet Color Gray, Black
Panel
Type IPS
Backlight LED
Size 31.5" / 80 cm (799 mm diagonal)
Native Resolution DisplayPort: 3840 x 2160 (60Hz, 16:9 aspect ratio)
DVI / HDMI: 3840 x 2160 (30Hz, 16:9 aspect ratio)
Viewable Image Size (H x V) 696.9 x 392.0 mm
Pixel Pitch 0.1815 x 0.1815 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 300 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (Gray-to-gray)
Video Signals
Input Terminals DisplayPort 1.2 x 2 (with HDCP 1.x), DVI-D 24 pin x 1 (with HDCP 1.x), HDMI x1 (with HDCP 1.x)
Digital Scanning Frequency (H / V) 31 - 134 kHz, 29 - 31 Hz and 59 - 61 Hz
USB
Function 1 port for up stream
3-port USB hub (including 1 USB Battery charge port)
Standard USB 3.0, USB BC 1.2
Audio
Speakers 1.0 W +1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Power Save, Source (DisplayPort, HDMI)
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 105 W
Typical Power Consumption 30 W
Power Save Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Off Timer
Features & Functions
Preset Modes Color mode (Paper, Movie, sRGB, User1, User2)
Auto EcoView / BrightRegulator Yes
EcoView Sense Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 731 x 439 - 578 x 245 mm
Dimensions (Without Stand, W x H x D) 731 x 428 x 59.5 mm
Net Weight 10.6 kg / 23.4 lbs
Net Weight (Without Stand) 7.8 kg / 17.2 lbs
Height Adjustment Range 139 mm
Tilt 35° Up, 5° Down
Swivel 344°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, RCM, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
Supplied Accessories AC power cord, signal cables (DisplayPort - DisplayPort), USB cable, EIZO LCD Utility Disk (PDF user's manual), setup guide
Warranty Five Years
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
