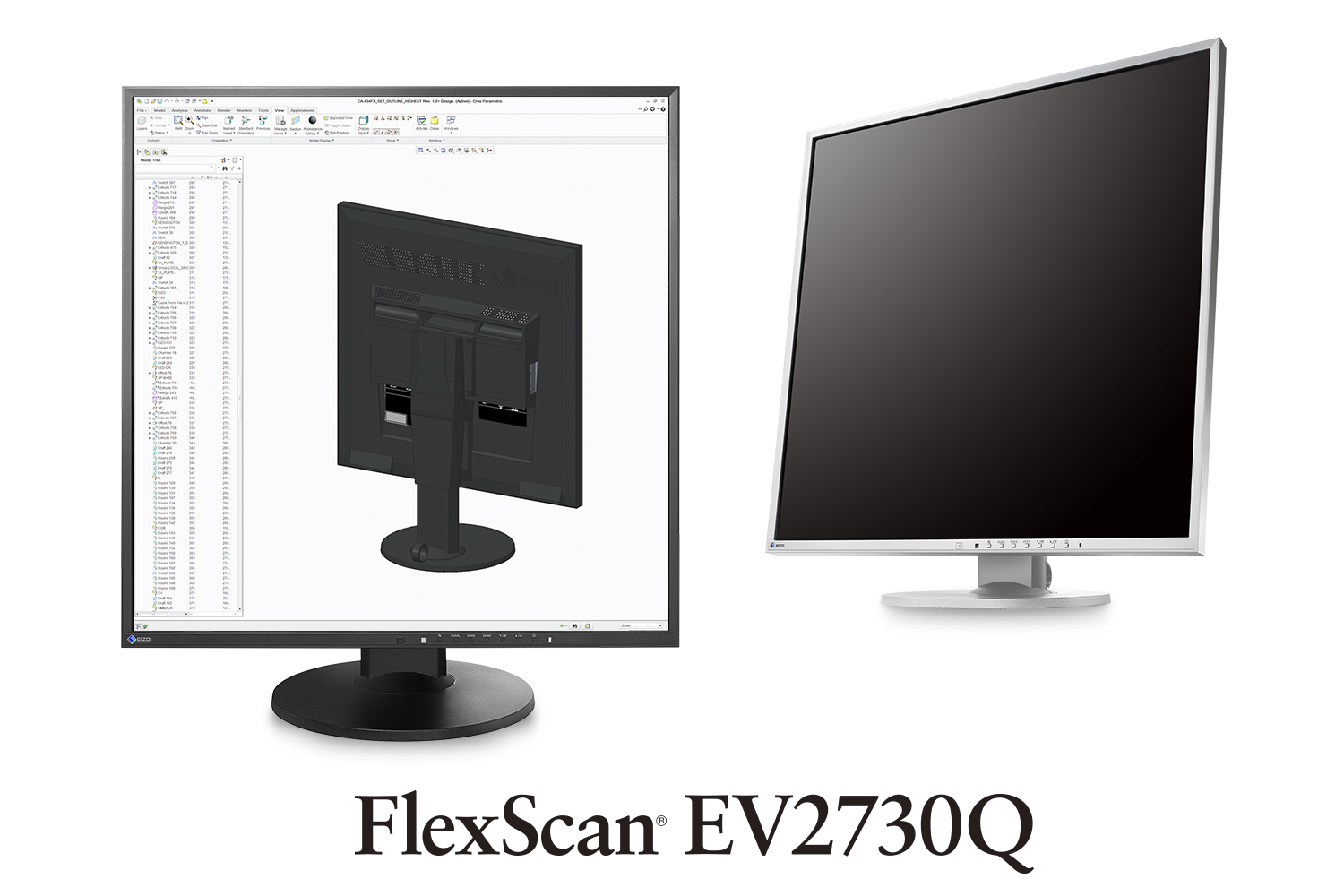

    FlexScan EV2730Q
    26.5" (67cm) LCD Monitor
    Wide All Around.
    With a 1920 x 1920 resolution, this monitor is as wide vertically as it is horizontally. Now you can scroll less, see more, and work better.
    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories

    Unique SQFHD (1920 x 1920) Resolution for More Efficient Viewing of Data

    The EV2730Q is wide all around. The unique 1920 x 1920 resolution provides users with 78% more pixels compared with a standard wide screen 1920 x 1080 monitor. The extended vertical space is convenient for displaying large amounts of information in long windows, reducing the need for excess scrolling and providing a more efficient view of data.

    wide screen

    Graphics board support information

    Desktop Screen Examples with 1920 x 1920 Resolution

    3D CAD

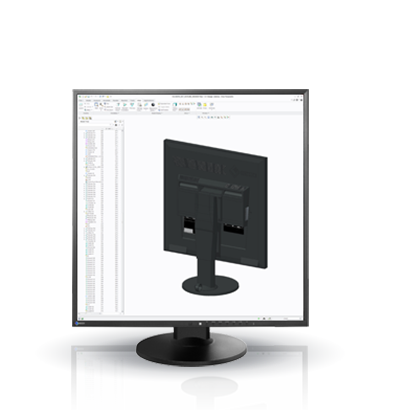

    3D CAD designers can view more of their item lists with the extended vertical space. They can also use the entire screen to enlarge 3D objects and check vital details whereas a standard wide monitor leaves blank space around the object.


    Program Development

    With the extended vertical space, programmers can see all their work at once. This helps them work more efficiently and reduces the need for excess scrolling.


    Other Examples with Website Development, Office Tools, or Photoother_examples.jpg

    Multiple Inputs

    • Dual link DVI x 1*
    • DisplayPort x 1
    • 2-port USB hub
    • 3.5mm stereo jack audio input and output

    * 60 Hz (1920 x 1920) with a Dual-Link DVI cable. 30 Hz with a Single-Link DVI cable.

    Ergonomics – Visual Comfort to Increase Your Productivity

    • IPS panel for a clear view from all angles
    • Best positioning with flexible stand
    • Tireless eyes with flicker-free image and reduced blue light

    TUV low blue light & flicker free






    Stefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

    • Wide dimming range – adjustable to just 1% of maximum brightness

    Environment – Energy-Saving Features to Reduce Your Eco Footprint

    • LED Backlights – Less Power, Longer Life
    • Presence sensor detects when you leave your desk and automatically switches to power save mode. When you return, it powers the monitor on again.

    Economy – Lower Total Cost of Ownership

    • 5-Year Warranty

    5 year warrantyA manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

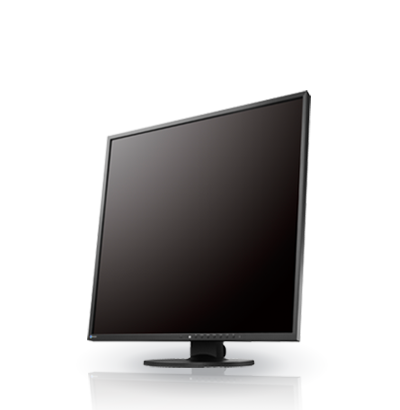

    Model Variations With FlexStand, Without Stand

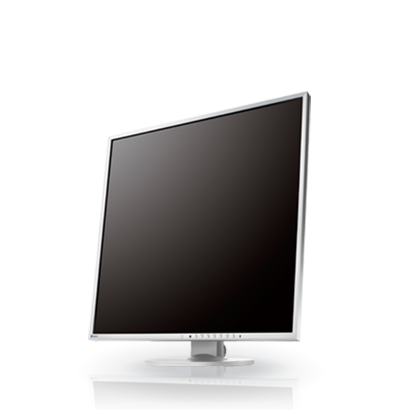

    Cabinet Color Gray, Black
    Panel
    Type IPS
    Backlight LED
    Size 26.5" / 67 cm (672 mm diagonal)
    Native Resolution 1920 x 1920 (1:1 aspect ratio)
    Viewable Image Size (H x V) 475.7 x 475.7 mm
    Pixel Pitch 0.2478 x 0.2478 mm
    Display Colors 16.77 million
    Viewing Angles (H / V, typical) 178°, 178°
    Brightness (typical) 300 cd/m2
    Contrast Ratio (typical) 1000:1
    Response Time (typical) 5 ms (Gray-to-gray)
    Video Signals
    Input Terminals DisplayPort x 1 DVI-D 24 pin x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 127 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz, Single link: 29 - 31 Hz)
    USB
    Function 1 port for up stream
    2-port USB hub
    Standard USB 2.0
    Audio
    Speakers 1.0 W +1.0 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume, Power Save, Source (DisplayPort)
    Power
    Power Requirements AC 100 -240 V, 50 / 60 Hz
    Maximum Power Consumption 64 W
    Typical Power Consumption 25 W
    Power Save Mode Less than 0.5 W
    Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Off Timer
    Features & Functions
    Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
    Auto EcoView / BrightRegulator Yes
    EcoView Sense Yes
    OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
    Physical Specifications
    Dimensions (Landscape, W x H x D) 497 x 512.5 - 613.5 x 245 mm
    Dimensions (Without Stand, W x H x D) 497 x 501.5 x 56 mm
    Net Weight 7.1 kg / 15.7 lbs
    Net Weight (Without Stand) 4.2 kg / 9.3 lbs
    Height Adjustment Range 101 mm (maximum 141 mm)
    Tilt 35° Up, 5° Down
    Swivel 344°
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D[dual link supported]), DisplayPort - DisplayPort), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
    Warranty Five Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

    Manuals

    Languages



    Document Language Size Download
    EV2730Q User's manual English 2.92 MB Download
    EV2730Q Setup guide English
    Chinese-Simplified
    French
    German
    Russian
    2.18 MB Download
    EV2730Q User's manual Chinese-Simplified 3.12 MB Download
    EV2730Q User's manual Czech 1.04 MB Download
    EV2730Q User's manual French 2.98 MB Download
    EV2730Q User's manual German 2.95 MB Download
    EV2730Q User's manual Russian 2.95 MB Download
