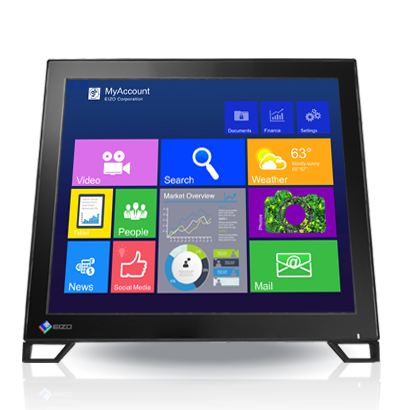

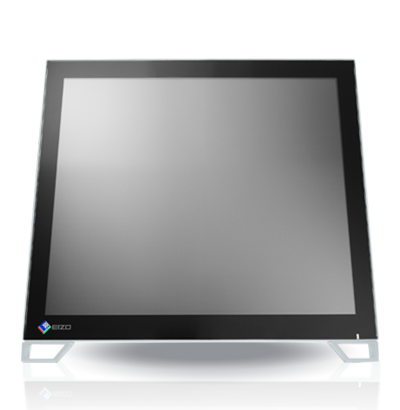

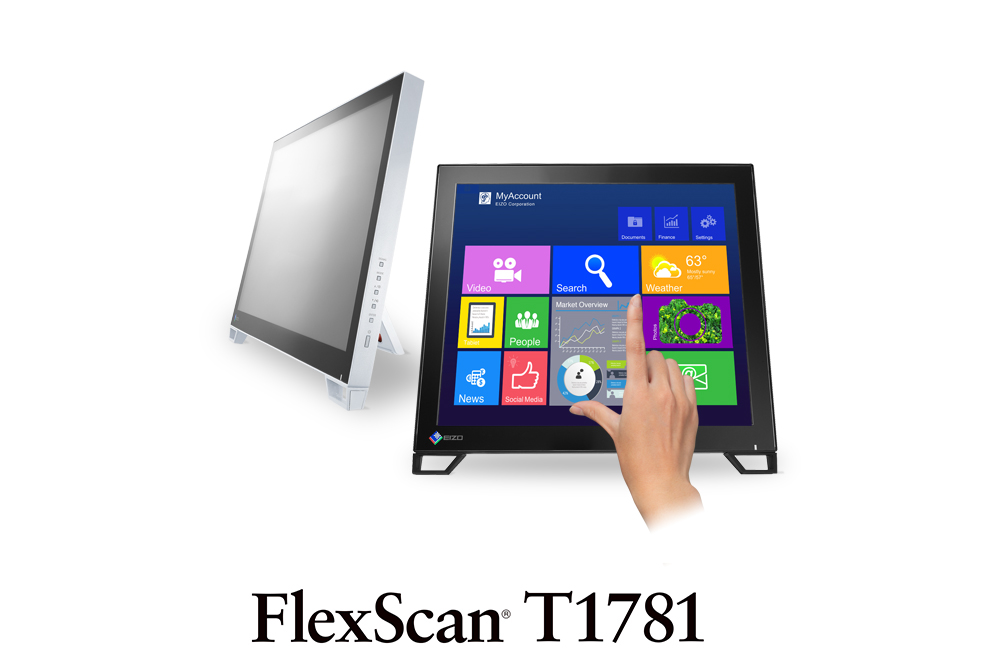

    FlexScan T1781
    43 cm (17") Multitouch Screen LCD Monitor
    Multitouch Versatility for Business and Industry
    Combines 5-point multitouch capability with superb image quality and an ergonomic and durable design.
    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories

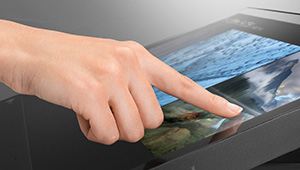

    Fully Flat Surface

    The flat front glass enables seamless touch operation across the entire screen. The touch driver is compatible with Windows 8.1, 8, 7, and XP.

    full-flat surface

    Five-Point Multitouch

    The screen accepts up to five touches at one time. Tap, drag, pinch, and spin with your fingers for an enjoyable touch experience. The Windows 8 charm bar can be easily accessed with a swipe motion.
    five-point multitouch

    Multitouch is supported by Windows 8.1, 8, and 7. Software must also support multitouch.

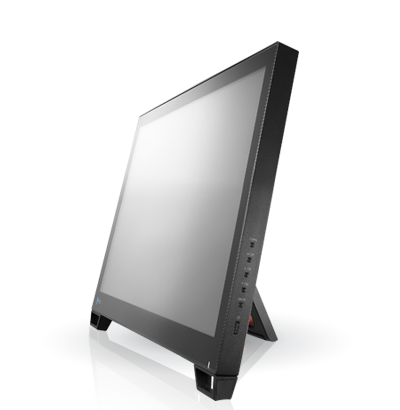

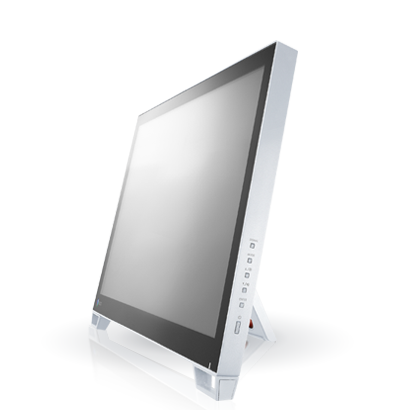

    Reclining Stand for Ease of Use

    reclinng standThe monitor rests on the desktop like a notebook PC and the stand reclines so the screen tilts back to your desired angle. This allows your arms to rest comfortably on the desktop while working so your shoulders stay relaxed.

    Wide Viewing Angles

    The monitor uses an IPS panel that has almost no color shift or change in contrast when viewed from different positions. The wide 178° horizontal and vertical viewing angles ensure that color remains vivid and consistent all the way to the corners of the screen.

    wide viewing angles

    Flicker-Free Images

    Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The T1781 relieves eye fatigue by regulating brightness to make flicker unperceivable.

    Non-Glare Panel

    A non-glare screen reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.

    TP5Optional Touch Pen

    The TP5 pen is equipped with a rubber tip for great response and smooth writing. It also includes a storage case.

    Durable and Reliable

    The touch screen has a non-scratch surface made of reinforced glass with a hardness of 5H (Mohs scale); making it durable enough to withstand long-term use in public access areas.

    3-Year Warranty

    A three-year warranty covers all components to ensure a long service life.





    Cabinet Color Gray, Black
    Panel
    Type IPS
    Backlight LED
    Size 17" / 43 cm (432 mm diagonal)
    Native Resolution 1280 x 1024 (5:4 aspect ratio)
    Viewable Image Size (H x V) 338 x 270 mm
    Pixel Pitch 0.264 x 0.264 mm
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angles (H / V, typical) 178°, 178°
    Brightness (typical) 350 cd/m2
    Contrast Ratio (typical) 1000:1
    Response Time (typical) 22 ms (black-white-black)
    Touch Panel
    Type Project Capacitive
    Communication Protocol USB
    Touch Life 50 million touches (minimum)
    Surface Hardness 5H
    Compatible OS Multi-touch: Windows 8.1 (64-bit, 32-bit) / Windows 8 (64-bit, 32-bit) / Windows 7 (32-bit, 64-bit)
    Single-touch: Windows XP (32-bit)
    Video Signals
    Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H / V) 31 - 81 kHz, 50 - 76 Hz
    Sync Formats Separate
    USB
    Function 1 port for touch panel control
    2-port USB hub
    Standard USB 2.0
    Audio
    Speakers 1.0 W + 1.0 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume, Power Save, Source (DisplayPort)
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 39 W
    Typical Power Consumption 11 W
    Power Save Mode Less than 0.5 W
    Standby Mode Less than 0.5 W
    Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
    Features & Functions
    Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
    Physical Specifications
    Dimensions (Landscape, W x H x D) 392 x 142.5 - 356 x 89 - 400.5 mm
    Dimensions (Without Stand, W x H x D) 392 x 331 x 54 mm
    Net Weight 4.8 kg / 10.6 lbs
    Net Weight (Without Stand) 4.3 kg / 9.5 lbs
    Tilt 15° - 70°
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, RoHS, WEEE, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, D-Sub - D-Sub), USB cable, audio cable, cleaning cloth, EIZO LCD Utility Disk (PDF user's manual, touch panel driver for Windows XP), Mask Sheet, setup guide
    Warranty Three Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
