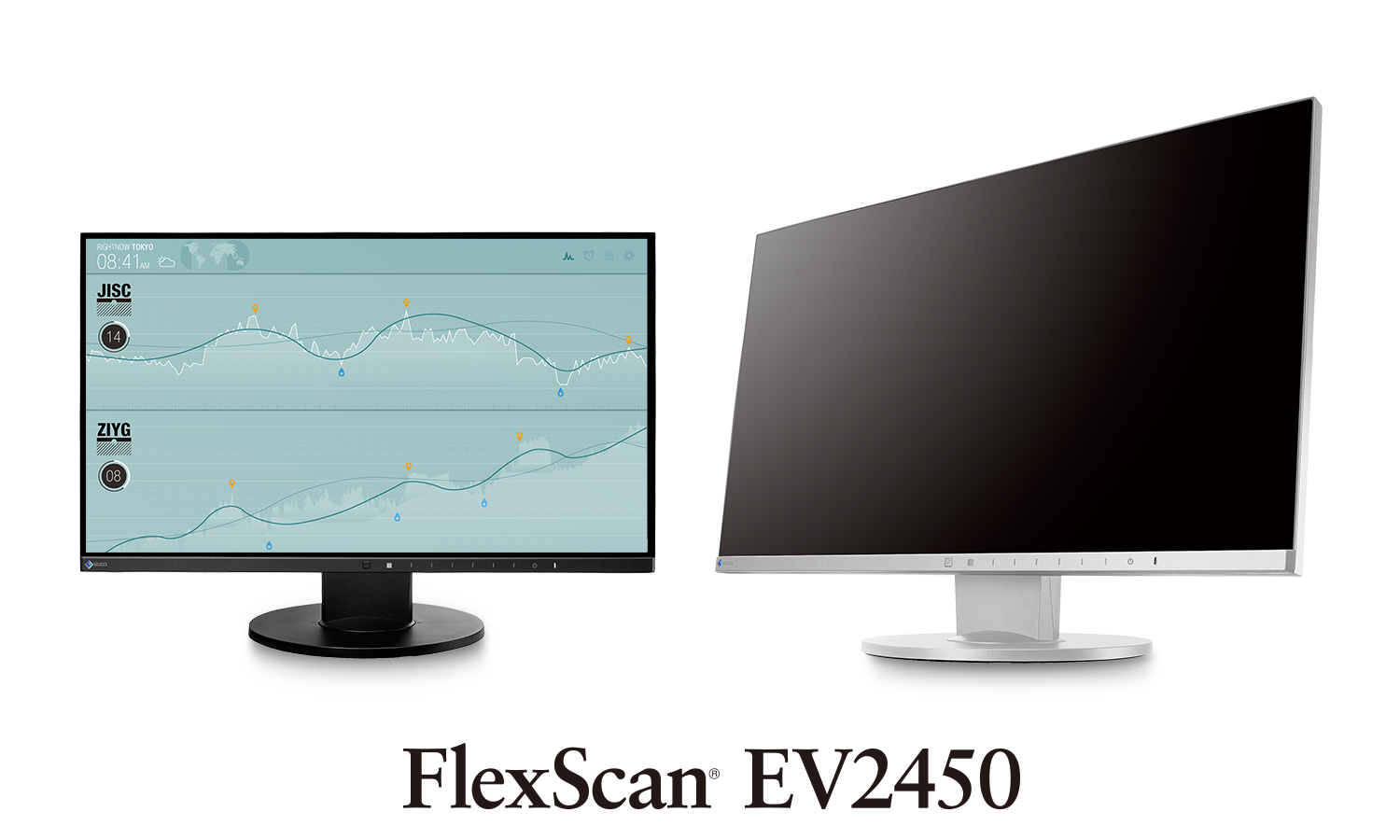

    FlexScan EV2450
    23.8" (60 cm) LCD Monitor
    The full HD monitor that's nice to look at and even better to use.
    The monitor features a new “Fusion” design that combines EIZO’s own EcoView technologies for reduced power consumption and improved visual ergonomics inside an extremely compact cabinet.
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories
    • Awards & Reviews


    Fusion Design

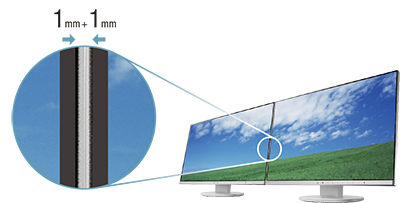

     World’s Thinnest Bezels for Multi-Monitor Environments

    thinnest bezels

    The monitor features 1 mm ultra-slim bezels on the sides and top with black borders of 4.3 mm and a depth of a mere 47.9 mm. This makes for an attractive design that blends in with the desktop and reduces eye movement in a multi-monitor setup.

    fusion design

    Say Goodbye to Tired Eyes

    Clear View From All Angles

    The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle.

    Auto Brightness Control

    To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

    auto brightness control

    Advanced Settings for Auto EcoView (Auto Brightness Adjustment)

    Adjustable to Less Than 1% of Maximum Brightness

    In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, thmonitor is adjustable to 1 cd/m² which is less than 1% of the maximum.

    brightness

    Flicker-Free Images

    Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability.

    less flickerTUV low blue light content / flecker free logo

    Less Blue Light Reduces Eye Fatigue

    In the visible light spectrum, blue light has wave lengths adjacent to ultraviolet light. Compared to the factory preset setting of 6,500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents.

    less blue lightTUV low blue light content / flecker free logo

    Stefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

    Lower Your Costs

    lower your costs

    LED Backlights – Less Power, Longer Life

    Compared to CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free for minimal environmental impact.

    Reduce Power by up to 30%

    A new feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.

    Compliance with International Labels

    TCOEnergy star epeat gold logoElgonomicsicon_EEK-A-Plus.png



    Presence Sensor for Energy Savings

    A presence sensor called EcoView Sense prompts the monitor to switch to power save mode when you are absent and then power on again when you return. It even works in a multi-monitor setup so all monitors remain on when you're at your desk.

    presence sensor

    5-Year Warranty

    A manufacturer’s 5-year warranty covers all compon5 year warrantyents including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.



    Simplify Screen Adjustment with EIZO-Developed Software

    ScreenManager Pro for Personal Settings

    ScreenManager Pro lets users adjust color and EcoView settings with the mouse and keyboard instead of the on-screen display menu. It also offers multimonitor matching which allows adjustments to be applied to all FlexScan monitors connected to a single PC.

    multi monitor match

    EIZO Monitor Configurator for Administrators

    EIZO Monitor Configurator lets system administrators control the settings of all FlexScan EV monitors with a USB connection. The settings of one monitor can be saved as an xml file and can apply to other monitors via USB or office network.


    Model Variations With FlexStand, Without Stand
    Cabinet Color Gray, Black
    Panel
    Type IPS
    Backlight LED
    Size 23.8" / 60 cm (604 mm diagonal)
    Native Resolution 1920 x 1080 (16: 9 aspect ratio)
    Viewable Image Size (H x V) 527 x 296.4 mm
    Pixel Pitch 0.2745 x 0.2745 mm
    Display Colors 16.77 million
    Viewing Angles (H / V, typical) 178°, 178°
    Brightness (typical) 250 cd/m2
    Contrast Ratio (typical) 1000:1
    Response Time (typical) 5 ms (Gray-to-gray)
    Video Signals
    Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), HDMI x 1 (with HDCP), DisplayPort x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
    Sync Formats Separate
    USB
    Function 1 port for monitor control
    2-port USB hub
    Standard USB 3.0
    Audio
    Speakers 1.0 W +1.0 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume, Power Save, Source (DisplayPort, HDMI)
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 47 W
    Typical Power Consumption 12 W
    Power Save Mode Less than 0.3 W
    Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
    Features & Functions
    Preset Modes Color mode (Paper, Movie, sRGB, User1, User2, DICOM)
    Auto EcoView / BrightRegulator Yes
    EcoView Sense Yes
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Physical Specifications
    Dimensions (Landscape, W x H x D) 537.6 x 368 - 473.5 x 233 mm
    Dimensions (Without Stand, W x H x D) 537.6 x 317.6 x 47.9 mm
    Net Weight 6.2 kg / 13.7 lbs
    Net Weight (Without Stand) 3.8 kg / 8.4 lbs
    Height Adjustment Range 140 mm
    Tilt 35° Up, 5° Down
    Swivel 344°
    Pivot 90°(both clockwise and counter clockwise)
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, RCM, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DisplayPort - DisplayPort), USB cable, EIZO LCD Utility Disk (PDF user's manual), setup guide
    Warranty Five Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
