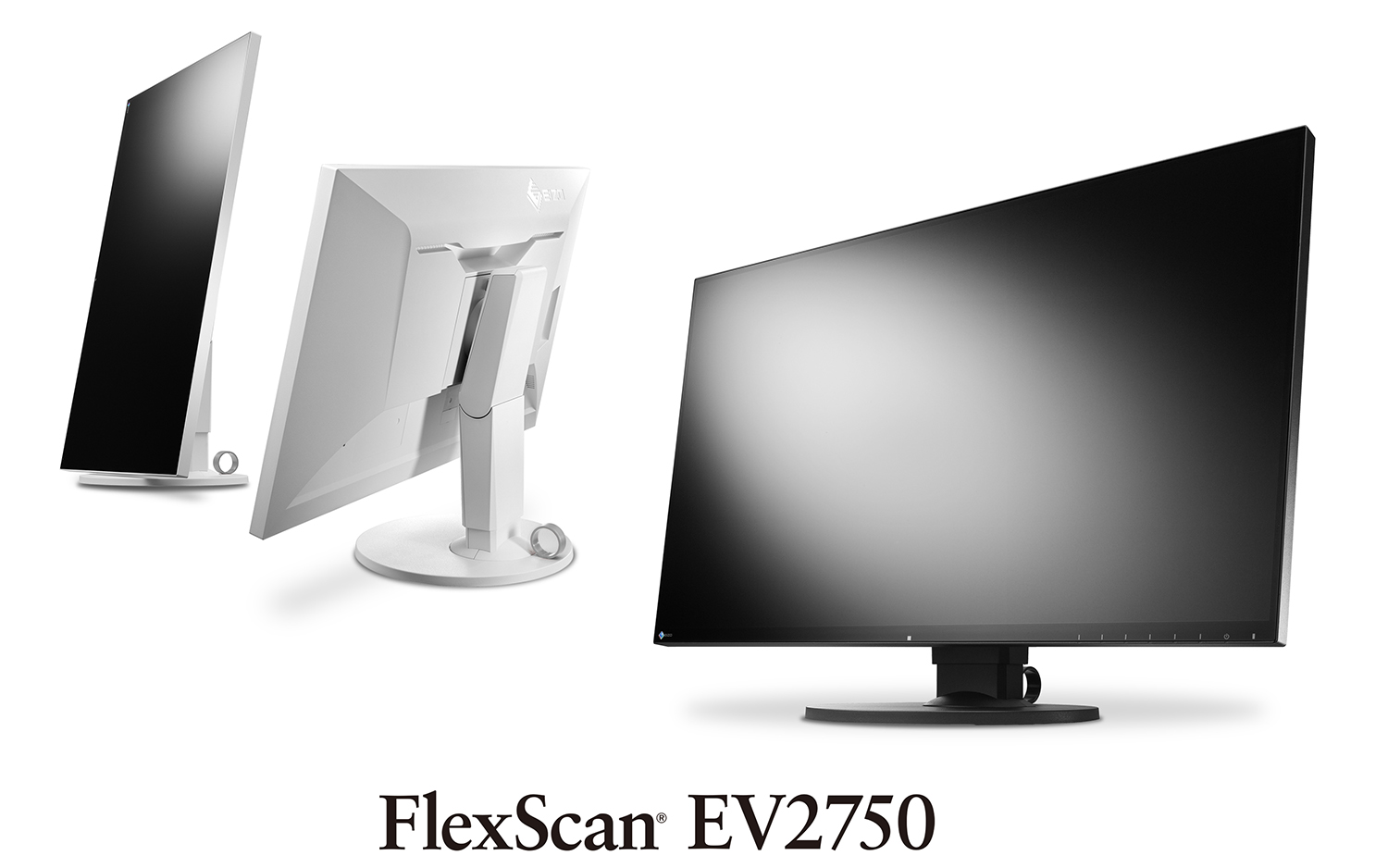

FlexScan ev2750
27" (68 cm) LCD Monitor
Flat and frameless.
The generous 27-inch screen is flush with the 1 mm bezels for a completely flat surface from corner to corner. The refined look is complimented by picture-by-picture capability, a flexible stand, and EIZO’s EcoView technologies.
2 items

  • Features
  • Specifications
  • Documents
  • Accessories
  • Awards & Reviews


Fusion Design

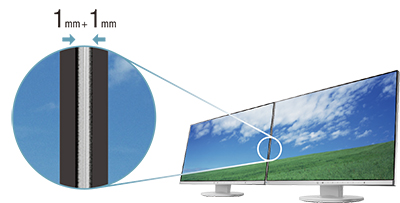

 World’s Thinnest Bezels for Multi-Monitor Environments

thinnest bezels

The monitor features 1 mm ultra-slim bezels on the sides and top with black borders of 5.2 mm and a depth of a mere 47.9 mm. This makes for an attractive design that blends in with the desktop and reduces eye movement in a multi-monitor setup.

best positioning




Say Goodbye to Tired Eyes

Clear View From All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle.

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

auto brightness control

Advanced Settings for Auto EcoView (Auto Brightness Adjustment)

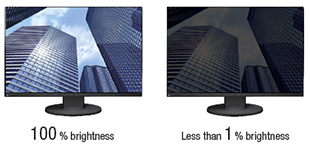

Adjustable to Less Than 1% of Maximum Brightness

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, thmonitor is adjustable to 1 cd/m² which is less than 1% of the maximum.

brightness

74% More Flicker-Free

Due to the way brightness is controlled on LED backlights, many people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series makes flicker unperceivable without any drawbacks like compromising color stability. In a comparison test conducted by EIZO, the monitor on average reduced flicker by more than 74% compared to LED-backlit monitors from other manufacturers.

less flickerTUV low blue light content / flecker free logo

Less Blue Light Reduces Eye Fatigue

In the visible light spectrum, blue light has wave lengths adjacent to ultraviolet light. Compared to the factory preset setting of 6,500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents.

less blue lightTUV low blue light content / flecker free logo

Stefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

Lower Your Costs

lower your costs

LED Backlights – Less Power, Longer Life

Compared to CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free for minimal environmental impact.

Reduce Power by up to 30%

A new feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.

Compliance with International Labels

TCOEnergy star epeat gold logoElgonomics icon_EEK-A-Plus.png




5-Year Warranty

A manufacturer’s 5-year warranty covers all compon5 year warrantyents including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.



Simplify Screen Adjustment with EIZO-Developed Software

ScreenManager Pro for Personal Settings

ScreenManager Pro lets users adjust color and EcoView settings with the mouse and keyboard instead of the on-screen display menu. It also offers multimonitor matching which allows adjustments to be applied to all FlexScan monitors connected to a single PC.

multi monitor match

EIZO Monitor Configurator for Administrators

EIZO Monitor Configurator lets system administrators control the settings of all FlexScan EV monitors with a USB connection. The settings of one monitor can be saved as an xml file and can apply to other monitors via USB or office network.


Model Variations With FlexStand, Without Stand
Cabinet Color White, Black
Panel
Type IPS
Backlight LED
Size 27" / 68.5 cm
Native Resolution 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.7 mm
Pixel Pitch 0.233 x 0.233 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (Gray-to-gray)
Video Signals
Input Terminals DisplayPort x 1, DVI-D 24 pin x 1 (with HDCP), HDMI x1 (with HDCP)
Digital Scanning Frequency (H / V) 31 - 89 kHz, 59 - 61 Hz
USB
Function 1 port for up stream
2-port USB hub
Standard USB 3.0
Audio
Speakers 1.0 W +1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Source (DisplayPort, HDMI)
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 67 W
Typical Power Consumption 22 W
Power Save Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
Features & Functions
Preset Modes Color mode (Paper, Movie, sRGB, User1, User2)
Auto EcoView Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 611.6 x 390.2 - 545.2 x 245 mm
Dimensions (Without Stand, W x H x D) 611.6 x 359 x 48.5 mm
Net Weight 7.9 kg / 17.4 lbs
Net Weight (Without Stand) 5.1 kg / 11.2 lbs
Height Adjustment Range 155 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°(both clockwise and counter clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, signal cables (DisplayPort - DisplayPort), USB cable, EIZO LCD Utility Disk (PDF user's manual), setup guide
Warranty Five Years
Dimension Drawing PDF
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
