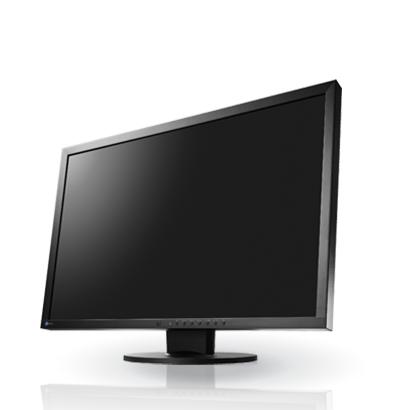

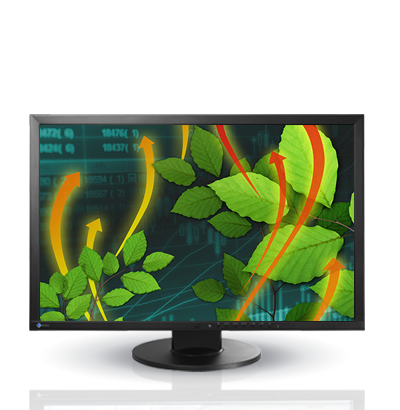

    FlexScan EV2416W
    24.1" (61 cm) LCD Monitor

    The monitor that's even better than it looks.
    Slim bezels give the EV2416W an attractive new design, but you’ll be even more impressed by its visual ergonomics and energy-saving features which will help you work more productively and lower the total cost of ownership.
    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories

    Simple Design for Convenience

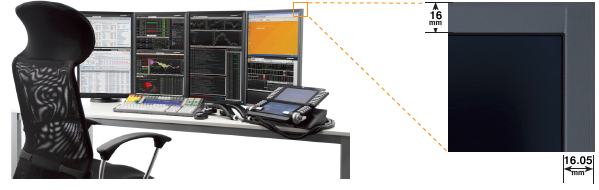

    Slim Bezels

    A new thin bezel design saves space on the desktop and minimizes eye movement between screens in a multi-monitor environment.
    Slim bezels

    Thomson Reuters Eikon is a trademark of Thomson Reuters and its affiliated companies.

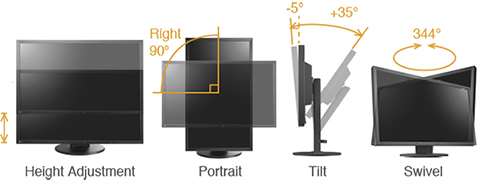

    Ergonomic Stand

    Adjust the screen to your ideal viewing position with EIZO’s versatile FlexStand.FlexStand

    FlexStand



    Getting Connected

    Three input terminals are included for connecting to PCs. In addition, a USB hub and headphone/ audio jacks are conveniently located on the side of the monitor.

    connectors

    Ergonomics - Visual Comfort to Increase Your Productivity

    Flicker-Free Images

    Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability.

    TUV low blue light & flicker freeStefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

    A Clear View from All Angles

    The FlexScan EV2316W has 170° horizontal and 160° vertical viewing angles which makes it suitable for most business use. For viewing environments where the monitor is placed above eye level, an "Up View" function minimizes any washing out of colors that may occur when looking up to view the screen.



    Tireless Eyes

    To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occur throughout the day and automatically adjusts the screen to the ideal brightness level. Auto EcoView cuts power by almost 40% compared to operating the monitor at maximum brightness.

    Auto EcoView

    Adjustable to Just 1% of Maximum Brightness

    In a dimly-lit work environment, a monitor with low brightness settings will be more comfortable to use. This monitor comes with an LED backlight that allows for adjusting the brightness to just 1% (about 3 cd/m2) of the maximum. With typical CCFL backlights the lowest you could adjust to would be a much brighter 20%. Just 1 percent brightness


    Preset Modes for Optimum Viewing

    Five preset modes (including two with user adjustable settings) ensure you always get the right setting for any application. You can switch modes at the touch of a button or automatically with the bundled ScreenManager Pro for LCD software.

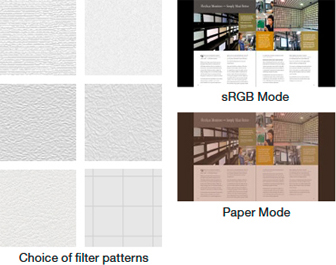

    Paper Mode and EyeCare Filter Reduce Eye Fatigue

    The Paper mode preset simulates the look of printed paper and helps prevent eyestrain when reading documents. When used with EyeCare Filter (available with the bundled ScreenManager Pro software), any of several filter patters that resemble different types of paper can be applied. You can adjust the density of the filter patterns for maximum viewing comfort.
    paper mode


    Smooth Playback of Moving Images

    An overdrive circuit reduces gray-to-gray response time to just 6 ms to ensure that moving images look clean and sharp.

    Environment – Energy-Saving Features to Reduce Your Eco Footprint

    LED Backlights – Less Power, Longer Life

    Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free to have minimal impact on the environment when they are eventually disposed of.
    less power, longer life

    Reduce Power by up to 30%

    A new feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.

    Presence Sensor for Energy Savings

    A presence sensor called EcoView Sense 2 prompts the monitor to switch to power save mode when you are absent and then power on again when you return. It even works in a multi-monitor setup so all monitors remain on when you're at your desk.


    Compliance with International Labels

    The FlexScan EV2416W is one of the first monitors to pass TCO Certified Displays 6.0. This new label strengthens criteria concerning the use of halogenated and non-halogenated substances. It also complies with other stringent international labels for ergonomics and energy savings like EPA Energy Star and EPEAT Gold.
    TCOEnergy starElgonomicsepeat gold logo

    Economy – Lower Total Cost of Ownership

    5-Year Warranty

    A manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

    5 year warranty



    Cabinet Color Gray, Black
    Panel
    Type TN
    Backlight LED
    Size 24.1" / 61 cm (611 mm diagonal)
    Native Resolution 1920 x 1200 (16:10 aspect ratio)
    Viewable Image Size (H x V) 518.4 x 324.0 mm
    Pixel Pitch 0.270 x 0.270 mm
    Display Colors 16.77 million
    Viewing Angles (H / V, typical) 170°, 160°
    Brightness (typical) 250 cd/m2
    Contrast Ratio (typical) 1000:1
    Response Time (typical) 5 ms (black-white-black)
    Video Signals
    Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 76 kHz, 59 - 61 Hz
    Analog Scanning Frequency (H / V) 31 - 76 kHz, 55 - 61 Hz
    Sync Formats Separate
    USB
    Function 1 port for monitor control
    2-port USB hub
    Standard USB 2.0
    Audio
    Speakers 1.0 W +1.0 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume, Power Save, Source (DisplayPort)
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 45 W
    Typical Power Consumption 15 W
    Power Save Mode Less than 0.3 W
    Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
    Features & Functions
    Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
    Auto EcoView / BrightRegulator Yes
    EcoView Sense Yes
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Up View, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
    Physical Specifications
    Dimensions (Landscape, W x H x D) 552.5 x 368 - 499 x 233 mm
    Dimensions (Without Stand, W x H x D) 552.5 x 358 x 57 mm
    Net Weight 6.1 kg / 13.4 lbs
    Net Weight (Without Stand) 3.7 kg / 8.2 lbs
    Height Adjustment Range 131 mm (maximum 140mm)
    Tilt 35° Up, 5° Down
    Swivel 344°
    Pivot 90°
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
    Warranty Five Years
