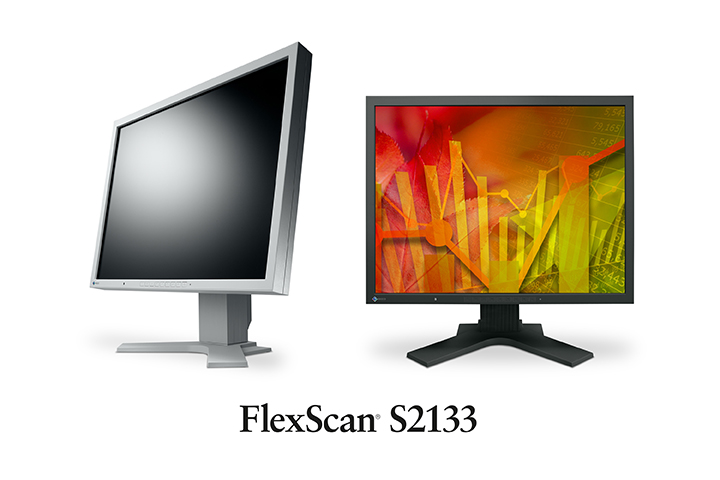

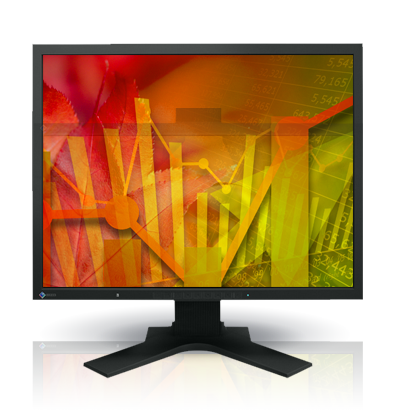

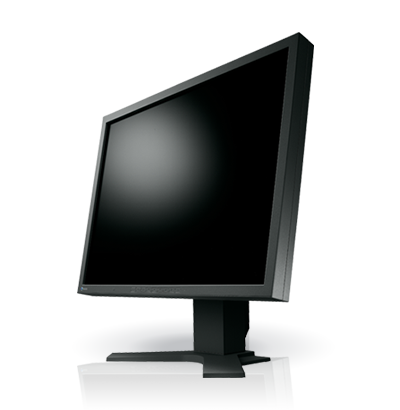

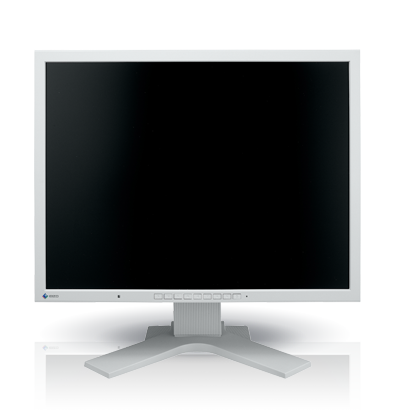

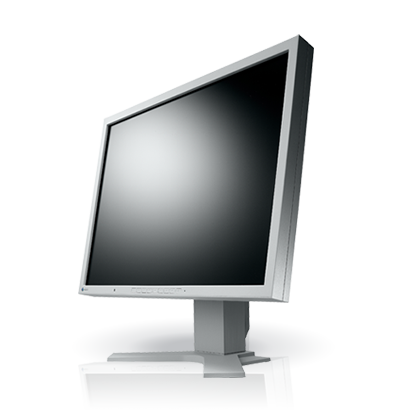

    FlexScan S2133
    21.3" (54 cm) LCD Monitor
    High-Resolution Monitor for Text and Graphics Work
    With its IPS panel and 1600 x1200, resolution, the FlexScan S2133 is ideal for businesses and control rooms that need to display a large volume of data as well as for CAD and other design work that require brilliant color display.
    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories

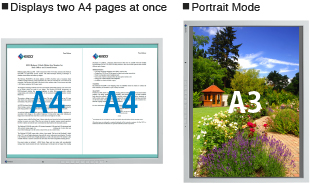

    Square Format with Ample Space

    With a 21.3-inch screen and a 1600 x 1200 native resolution, the FlexScan S2133 displays a large volume of information so you can scroll less and work more efficiently.
    1600x1200 screen

    Viewing Comfort with an Ergonomic Stand

    Adjust the screen to the most comfortable position with 82 mm  height adjustment, 40° tilt, 70° swivel, and 90° rotation for portrait mode. Compatibility with VESA mounting standards allows the monitor to be removed from the stand for mounting on a movable arm or wall bracket.
    stand

    Optimized Brightness with Auto EcoView

    The Auto EcoView ambient brightness sensor on the front of the monitor measures ambient light and optimizes the screen's brightness so the screen is never too bright or too dark. This reduces both eye strain and the monitor’s energy consumption.

    auto ecoview

    Preset Modes for Optimum Viewing

    For optimum viewing of different kinds of content, EIZO's Fine Contrast function includes modes for office applications (Paper mode), video (Movie mode), web browsing (sRGB mode), and user-defined settings (User modes 1 and 2). Toggling between modes can be done manually in the OSD menu or automatically by assigning a mode to a particular application with the bundled ScreenManager Pro for LCD software.

    Closely Simulates Documents and Books

    Paper mode produces tones and contrast similar to those of printed paper. Together with the Auto EcoView ambient brightness sensor, Paper mode makes reading documents and ebooks more comfortable and reduces eyestrain.

    paper mode

    Good Visibility in Bright Places

    With a maximum brightness of 420 cd/m2 and a contrast ratio of 1500:1, the screen remains visible under daylight conditions and brightly lit rooms.


    USB Hub

    A USB hub with one upstream and two downstream ports is included.

    Supports HDCP

    The DisplayPort and DVI-D 24 pin connectors and HDCP compliant. By connecting to an HDCP enabled computer, you can display digital copyright protected contents from digital streams and Blu-ray.

    Energy Savings across the Network

    EIZO’s EcoView NET power management software provides centralized control over the power settings of monitors on a network. With EcoView NET, a systems administrator can confirm the settings for each monitor on the network, turn the power on or off, and if necessary, take measures to combat eye fatigue such as adjust the brightness or activate Auto EcoView. EcoView NET is available from EIZO distributors.
    energy saving across network

    Compliance with International Labels

    TCOEnergy starElgonomicsepeat gold

    Made by EIZO

    qualityWhile outsourcing production is now common practice in the monitor industry, EIZO continues to manufacture its products the same way it has throughout its 40-year history – with its own staff at its own factories. This allows EIZO to maintain close control over production quality and offer the industry’s only 5-year manufacturer’s limited warranty.






    IPS Panel with Wide Viewing Angles

    The IPS (in-plane switching) panel offers 178° viewing angles to minimize color shift and contrast when viewing the screen at an angle. This ensures stable and consistent display when two or more people view the screen at once or in a multi-monitor environment.
    wide viewing angles

    A non-glare screen reduces eye fatigue by dissipating reflective light that otherwise makes the screen difficult to see.

    non glare panel

    10-Bit Gamma Correction

    This technology helps achieve accurate color by converting the 8-bit PC data to 10-bit, and assigning the ideal gamma values with a 10-bit look-up table (LUT) then returning the data to 8-bit format for display.

    Safety-Lock Slot

    A slot for attaching a safety lock is included to help prevent theft.

    LED Backlight

    With an energy-saving LED backlight, the FlexScan S2133 uses only 13 watts during typical operation. The LED backlight does not contain any mercury for minimal environmental impact when the monitor is eventually disposed of.

    Eye Care Utility

    eye care utilityThe EyeCare utility is EIZO -developed software that helps promote better work habits. It consists of a function called “EyeCare Reminder” that reminds you to take scheduled breaks.

    Consistent Color Display

    The gamma, color temperature, and other parameters are adjusted to the proper values on the assembly line. This minimizes variation in color display for consistency in a multi-monitor setups and large scale installations.

    Clear Video Display

    An overdrive circuit that reduces gray-to-gray response time to just 6 ms when watching video. This greatly reduces ghosting and blurring that is caused by high motion scenes ensuring moving images look clean and sharp.
    without or with overdrive

    Getting Connected

    Three input terminals are included – DisplayPort, DVI-D, and D-Sub. The DisplayPort cable can be quickly affixed and detached which makes it convenient for connecting the monitor to a notebook computer. With DisplayPort, you can easily build a multi-monitor environment by using a graphics board that has multiple DisplayPort connectors or a DisplayPort multi-display adapter.
    getting connected



    Built to Last Five Years

    EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S2133 is higher than another 21-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
    5-year vs 3-year





    Model Variations With Height Adjustable Stand, Without Stand
    Cabinet Color Gray, Black
    Panel
    Type IPS
    Backlight LED
    Size 21.3" / 54 cm (540 mm diagonal)
    Native Resolution 1600 x 1200 (4:3 aspect ratio)
    Viewable Image Size (H x V) 432 x 324 mm
    Pixel Pitch 0.270 x 0.270 mm
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angles (H / V, typical) 178°, 178°
    Brightness (typical) 420 cd/m2
    Contrast Ratio (typical) 1500:1
    Response Time (typical) 6 ms (Gray-to-gray)
    Video Signals
    Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 76 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H / V) 24 - 80 kHz, 49 - 76 Hz
    Sync Formats Separate, Composite
    USB
    Function 1 port for monitor control
    2-port USB hub
    Standard USB 2.0
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 45 W
    Typical Power Consumption 13 W
    Power Save Mode Less than 0.3 W
    Power Management Power Save (VESA DPM and DVI DMPM), Eco Timer
    Features & Functions
    Preset Modes FineContrast (User1, User2, sRGB, Paper, Movie)
    Auto EcoView / BrightRegulator Yes
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Others Screen Adjustment (Clock, Phase, Position, Range (Auto)), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Input Signal, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset, DDC/CI Lock
    Physical Specifications
    Dimensions (Landscape, W x H x D) 465 x 453 - 535 x 208.5 mm
    Dimensions (Without Stand, W x H x D) 465 x 361 x 64 mm
    Net Weight 8.6 kg / 19.0 lbs
    Net Weight (Without Stand) 5.6 kg / 12.3 lbs
    Height Adjustment Range 82 mm
    Tilt 40° Up, 0° Down
    Swivel 35° Right / 35° Left
    Pivot 90°
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, C-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, D-Sub mini 15 pin - D-Sub mini 15 pin), USB cable, EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software)
    Warranty Five Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

    Brochures

    FlexScan General 2014, 9
    13.7 MB

    Download



    FlexScan S2133
    874 KB

    Download



    Manuals

    Languages



    Document Language Size Download
    S2133 User's manual English 15.3 MB Download
    S2133 Setup guide English
    Chinese-Simplified
    French
    German
    739 KB Download
    EcoView NET Ver.1.3.1 User's Manual (English) English 917 KB Download
    ScreenSlicer Ver.1.1.5 Software manual (English) English 1.88 MB Download
    ScreenManager Pro for LCD (DDC/CI) Ver.2.4.1 Software manual (English) English 1.16 MB Download
    S2133 Setup guide Arabic 601 KB Download
    S2133 User's manual Chinese-Simplified 15.2 MB Download
    S2133 Setup guide Chinese-Traditional 715 KB Download
    S2133 Setup guide Czech 579 KB Download
    S2133 User's manual Czech 858 KB Download
    S2133 Setup guide Danish 592 KB Download
    S2133 Setup guide Dutch 591 KB Download
    S2133 Setup guide Finnish 586 KB Download
    S2133 User's manual French 15.4 MB Download
    S2133 User's manual German 15.4 MB Download
    S2133 Setup guide Korean 737 KB Download
    S2133 Setup guide Norwegian 591 KB Download
    S2133 Setup guide Polish 591 KB Download
    S2133 Setup guide Portuguese 587 KB Download
    S2133 User's manual Russian 15.9 MB Download
    S2133 Setup guide Turkish 591 KB Download
