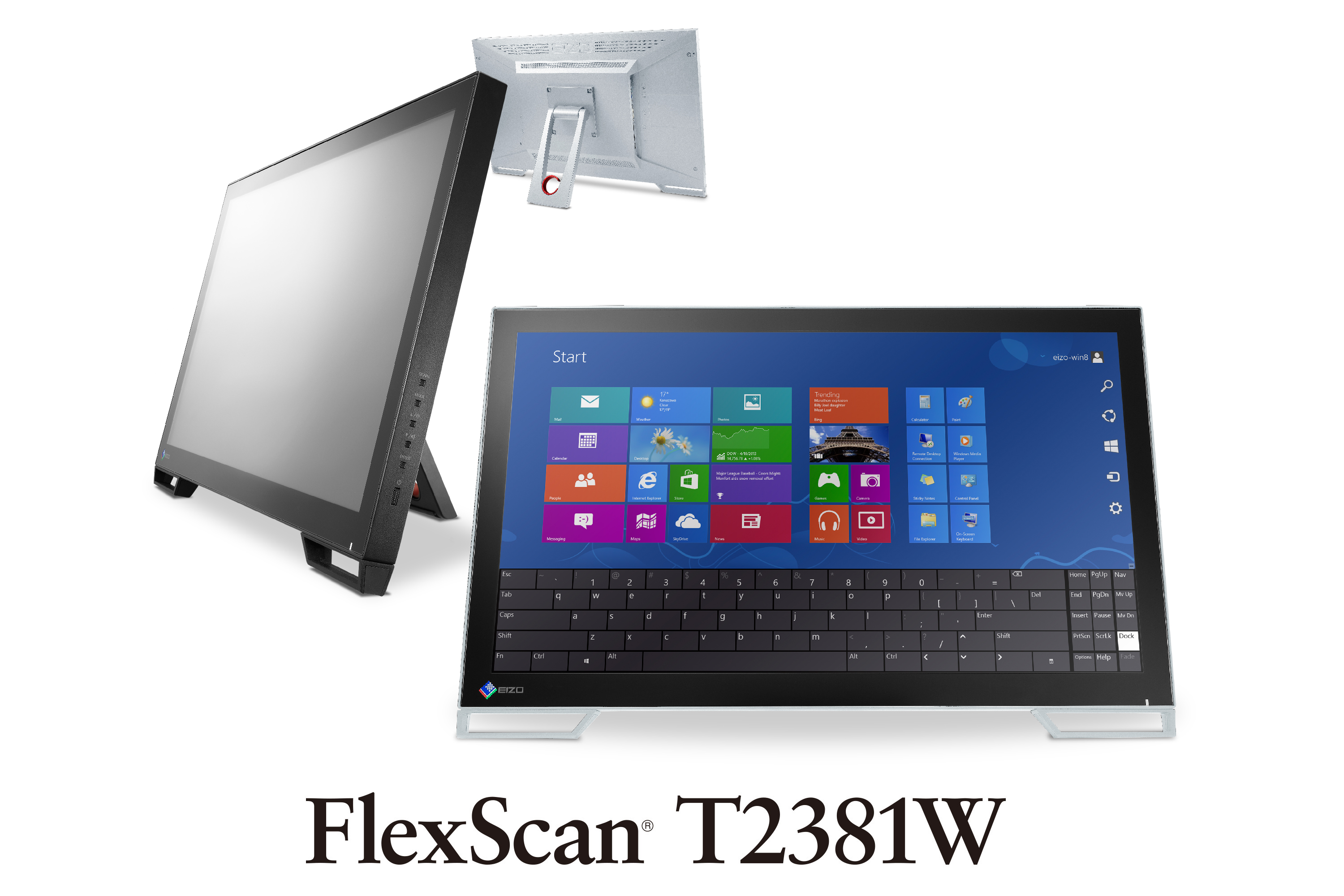

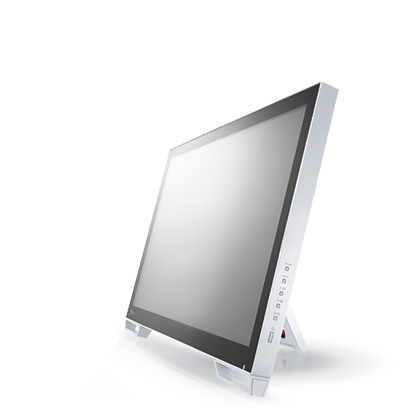

    FlexScan T2381W
    23" (58 cm) Multtouch Monitor
    23" Multitouch IPS monitor optimized for comfort and durability
    • Contact EIZO
    2 items

    • Features
    • Specifications
    • Documents
    • Accessories

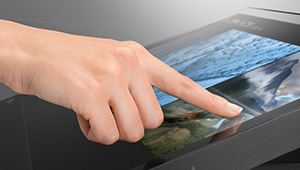

    Fully Flat Design

    The fully flat design enables seamless touch operation that reachs to the edges of the 23-inch screen.

    flat panel

    Wide Viewing Angles

    The monitor comes with an IPS panel that has almost no color shift or change in contrast when viewed from different positions. The wide 178° horizontal and vertical viewing angles ensure that color remains vivid and consistent all the way to the corners of the screen.

    wide viewing angles

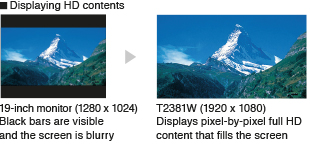

    Full HD Resolution

    The monitor features full HD 1080p resolution for incredible image performance that fills the entire screen. Because the monitor can display large amounts of information at once, it reduces the time needed to display new windows or scroll.

    full HD

    Energy-Efficient LED Backlight

    Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are mercury-free to have minimal impact on the environment when they are eventually disposed of.

    Non-Glare Panel

    A non-glare screen reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.

    non-glare

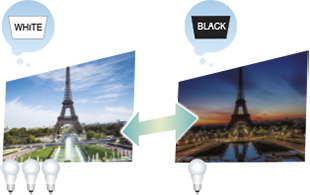

    Save Power

    EcoView Optimizer 2 saves energy by analyzing the screen in real time and reduces backlight brightness while increasing gain.

    save power

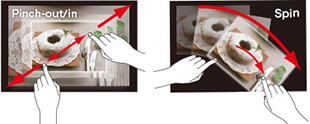

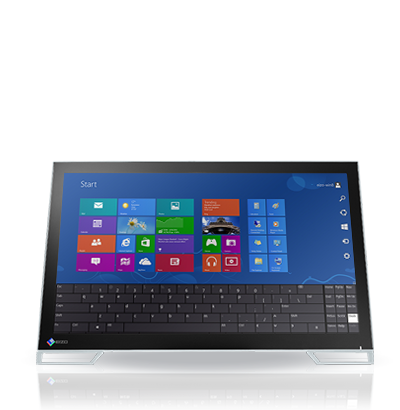

    Multitouch Interface

    Multitouch lets you tap, drag, pinch, spin etc. at the light touch of a finger, making touch interaction both enjoyable and easy. The Windows 8 charm bar can also be easily accessed with a swipe motion.

    Multitouch is only usable with Windows 8 or 7 and single touch is available with Windows XP. Multitouch requires supported software.

    multitouch

    Flicker-Free Images

    Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The T2381W relieves eye fatigue by regulating brightness to make flicker unperceivable.

    flicker-free


    Paper Mode Reduces Eye Fatigue

    The Paper Mode preset simulates the look of paper and helps prevent eyestrain when reading documents by adjusting the brightness of the monitor and reducing blue light.

    paper mode

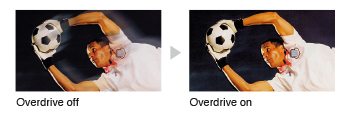

    Clear Video Display

    The monitor is equipped with an overdrive circuit that reduces gray-to-gray response time to just 6 ms when watching video. This greatly reduces ghosting and blurring that is caused by high motion scenes ensuring moving images look clean and sharp.

    overdrive

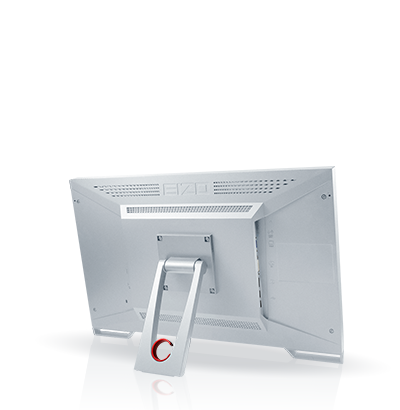

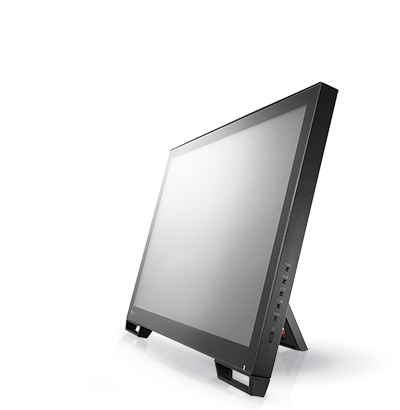

    Flexible Stand for Ease of Use

    standSmooth tilt capability makes placement and positioning simple and comfortable for office work and multitouch applications. With its flexible stand, the bottom of the bezel rests on the desktop like a notebook PC and tilts back freely from 15° to 70°.

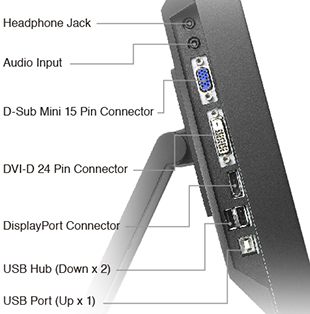

    Multiple Input Ports

    connectors

    Cabinet Color Gray, Black
    Panel
    Type IPS
    Backlight LED
    Size 23" / 58 cm (584 mm diagonal)
    Native Resolution 1920 x 1080 (16 : 9 aspect ratio)
    Viewable Image Size (H x V) 509.1 x 286.4 mm
    Pixel Pitch 0.265 x 0.265 mm
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angles (H / V, typical) 178°, 178°
    Brightness (typical) 260 cd/m2
    Contrast Ratio (typical) 1000:1
    Response Time (typical) 6 ms (Gray-to-gray)
    Touch Panel
    Type Project Capacitive
    Communication Protocol USB
    Touch Life 50 million touches (minimum)
    Surface Hardness 5H
    Compatible OS Multi-touch: Windows 8.1 (64-bit, 32-bit) / Windows 8 (64-bit, 32-bit) / Windows 7 (32-bit, 64-bit)
    Single-touch: Windows XP (32-bit)
    Video Signals
    Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
    Digital Scanning Frequency (H / V) 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
    Sync Formats Separate
    USB
    Function 1 port for touch panel control
    2-port USB hub
    Standard USB 2.0
    Audio
    Speakers 1.0 W + 1.0 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume, Power Save, Source (DisplayPort)
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 56 W
    Typical Power Consumption 18 W
    Power Save Mode Less than 0.5 W
    Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
    Features & Functions
    Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Black Level, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
    Physical Specifications
    Dimensions (Landscape, W x H x D) 556.7 x 143.9 - 360.7 x 89 - 401.3 mm
    Dimensions (Without Stand, W x H x D) 556.7 x 339.2 x 54 mm
    Net Weight 6.6 kg / 14.5 lbs
    Net Weight (Without Stand) 6.0 kg / 13.2 lbs
    Height Adjustment Range -
    Tilt 15° - 70°
    Swivel -
    Pivot -
    Hole Spacing (VESA Standard) 100 x 100 mm
    Environmental Requirements
    Operating Temperature 5 - 35 °C
    Operating Humidity (R.H., non condensing) 20 - 80 %
    Certifications & Standards (Please contact EIZO for the latest information.) c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, RoHS, WEEE, CCC, GOST-R
    Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, D-Sub - D-Sub), USB cable, audio cable, cleaning cloth, EIZO LCD Utility Disk (PDF user's manual, touch panel driver for Windows XP), Mask Sheet, setup guide
    Warranty Three Years
    1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
    2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
