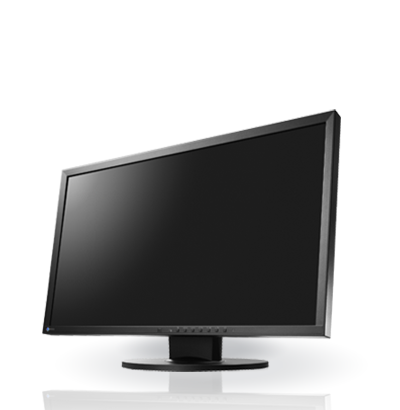

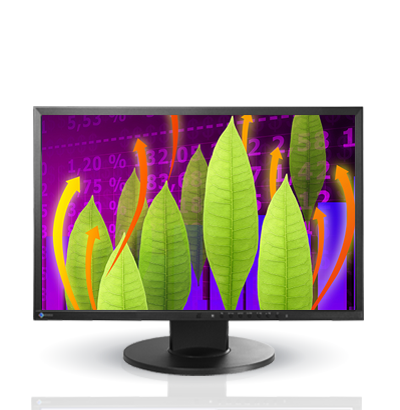

Flex Scan EV2213W
22" (56 cm) LCD Monitor
Same performance. Smaller package.
The EV2216W comes with all the ergonomic and cost-saving benefits that are standard with current EcoView monitors but now in a compact 22-inch screen and a 1680 x 1050 resolution.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents

Simple Design for Convenience

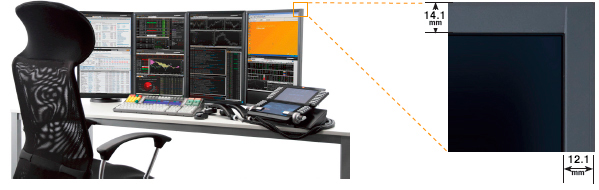

Slim Bezels

A thin bezel design saves space on the desktop and minimizes eye movement between screens in a multi-monitor environment.
slim bezels

Thomson Reuters Eikon is a trademark of Thomson Reuters and its affiliated companies.

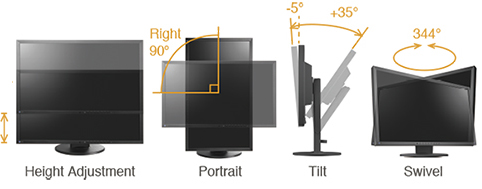

Ergonomic Stand

Adjust the screen to your ideal viewing position with EIZO’s versatile FlexStand.FlexStand

FlexStand





Getting Connected

Three input terminals are included for connecting to PCs. In addition, a USB hub and headphone/ audio jacks are conveniently located on the side of the monitor.

connectors

Ergonomics - Visual Comfort to Increase Your Productivity



Flicker-Free Images

flicker freeDue to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability.

TUV low blue light & flicker free

Stefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."

A Clear View from All Angles

The FlexScan EV2216W has 170° horizontal and 160° vertical viewing angles which makes it suitable for most business use. For an environment such as a control room where the monitor is placed above eye level, an "Up View" function minimizes any washing out of colors that may occur when looking up to view the screen.



Tireless Eyes

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occur throughout the day and automatically adjusts the screen to the ideal brightness level. Auto EcoView cuts power by almost 40% compared to operating the monitor at maximum brightness.

auto ecoview

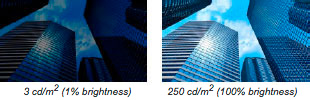

Adjustable to Just 1% of Maximum Brightness

In a dimly-lit work environment, a monitor with low brightness settings will be more comfortable to use. This monitor comes with an LED backlight that allows for adjusting the brightness to just 1% (about 3 cd/m2) of the maximum. With typical CCFL backlights the lowest you could adjust to would be a much brighter 20%. Just 1 percent brightness

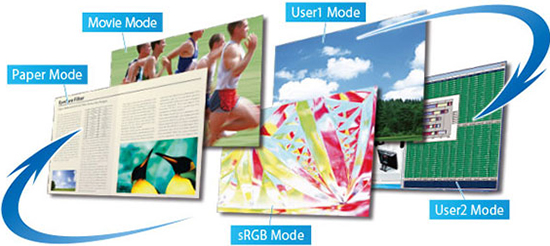

Preset Modes for Optimum Viewing

Five preset modes (including two with user adjustable settings) ensure you always get the right setting for any application. You can switch modes at the touch of a button or automatically with the bundled ScreenManager Pro for LCD software.

preset modes




















Paper Mode and EyeCare Filter Reduce Eye Fatiguepapermode

The Paper mode preset simulates the look of printed paper and helps prevent eyestrain when reading documents. When used with EyeCare Filter (available with the bundled ScreenManager Pro software), any of several filter patters that resemble different types of paper can be applied. You can adjust the density of the filter patterns for maximum viewing comfort.











Environment – Energy-Saving Features to Reduce Your Eco Footprint

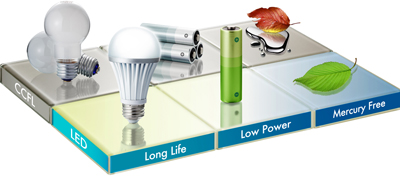

LED Backlights – Less Power, Longer Life

Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free to have minimal impact on the environment when they are eventually disposed of.
led backlight

Reduce Power by up to 30%presence sensor

A new feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.



Presence Sensor for Energy Savings

A presence sensor called EcoView Sense 2 prompts the monitor to switch to power save mode when you are absent and then power on again when you return. It even works in a multi-monitor setup so all monitors remain on when you're at your desk.


Compliance with International Labels

Meets the most stringent international labels for ergonomics and energy savings.
TCOEnergy starElgonomics  epeat gold logo

Economy – Lower Total Cost of Ownership

5-Year Warranty

A manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

5 year warranty



Cabinet Color Gray, Black
Panel
Type TN
Backlight LED
Size 22" / 56 cm (558 mm diagonal)
Native Resolution 1680 x 1050 (16: 10 aspect ratio)
Viewable Image Size (H x V) 473.7 x 296.1 mm
Pixel Pitch 0.282 x 0.282 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 170°, 160°
Brightness (typical) 250 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (black-white-black)
Video Signals
Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
Digital Scanning Frequency (H / V) DisplayPort: 31 - 67.5 kHz, 59 - 61 Hz
DVI: 31 - 68.0 kHz, 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 68 kHz, 55 - 61 Hz
Sync Formats Separate
USB
Function 1 port for monitor control
2-port USB hub
Standard USB 2.0
Audio
Speakers 1.0 W +1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Power Save, Source (DisplayPort)
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 39 W
Typical Power Consumption 12 W
Power Save Mode Less than 0.3 W
Power Management Power Save (VESA DPM, and DVI DMPM), Eco Timer
Features & Functions
Preset Modes FineContrast (Paper, Movie, sRGB, User1, User2)
Auto EcoView / BrightRegulator Yes
EcoView Sense Yes
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Up View, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 500 x 368 - 483.1 x 233 mm
Dimensions (Without Stand, W x H x D) 500 x 326.5 x 54 mm
Net Weight 5.6 kg / 12.3 lbs
Net Weight (Without Stand) 3.3 kg / 7.3 lbs
Height Adjustment Range 140 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
Warranty Five Years
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
